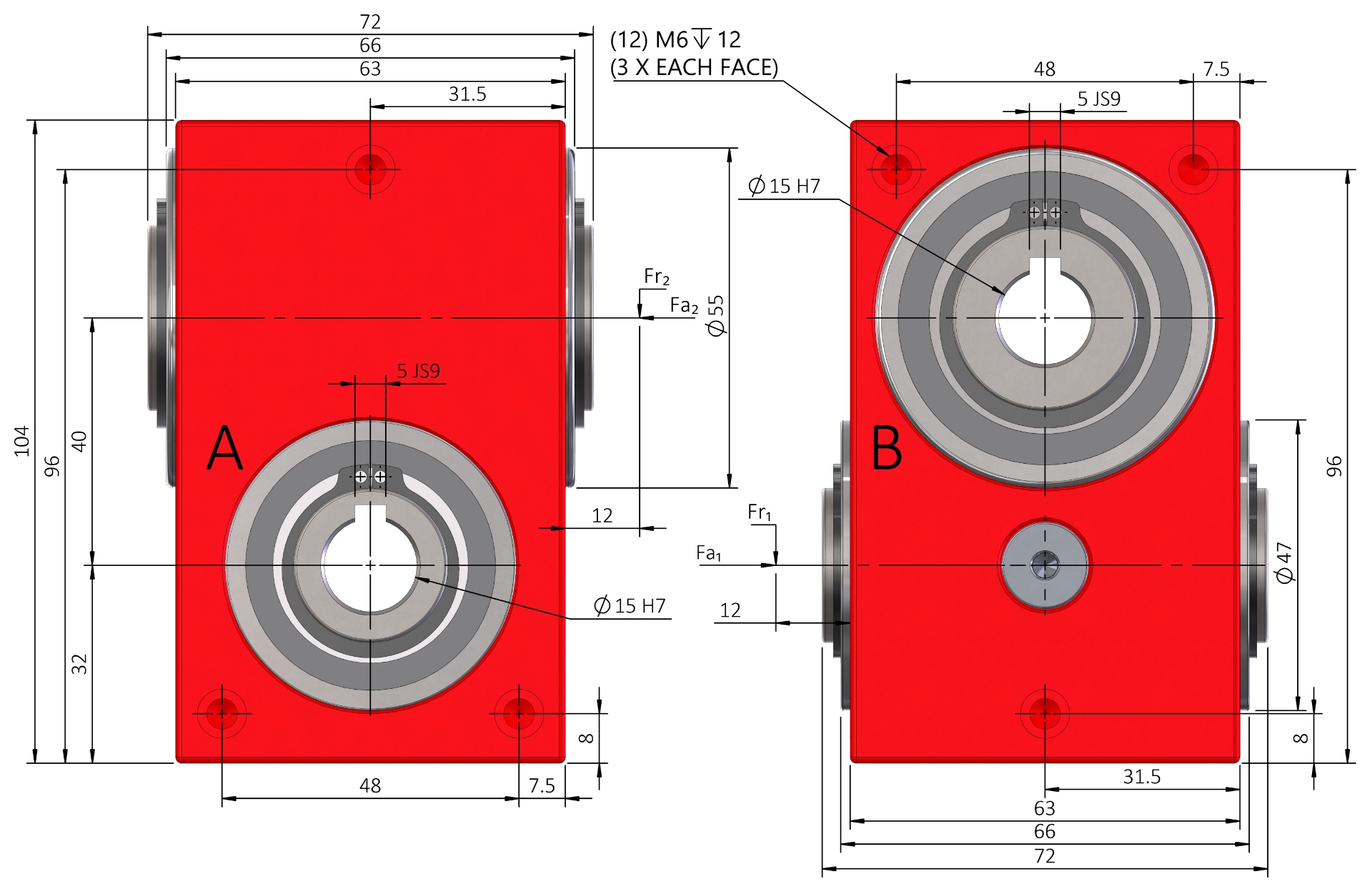

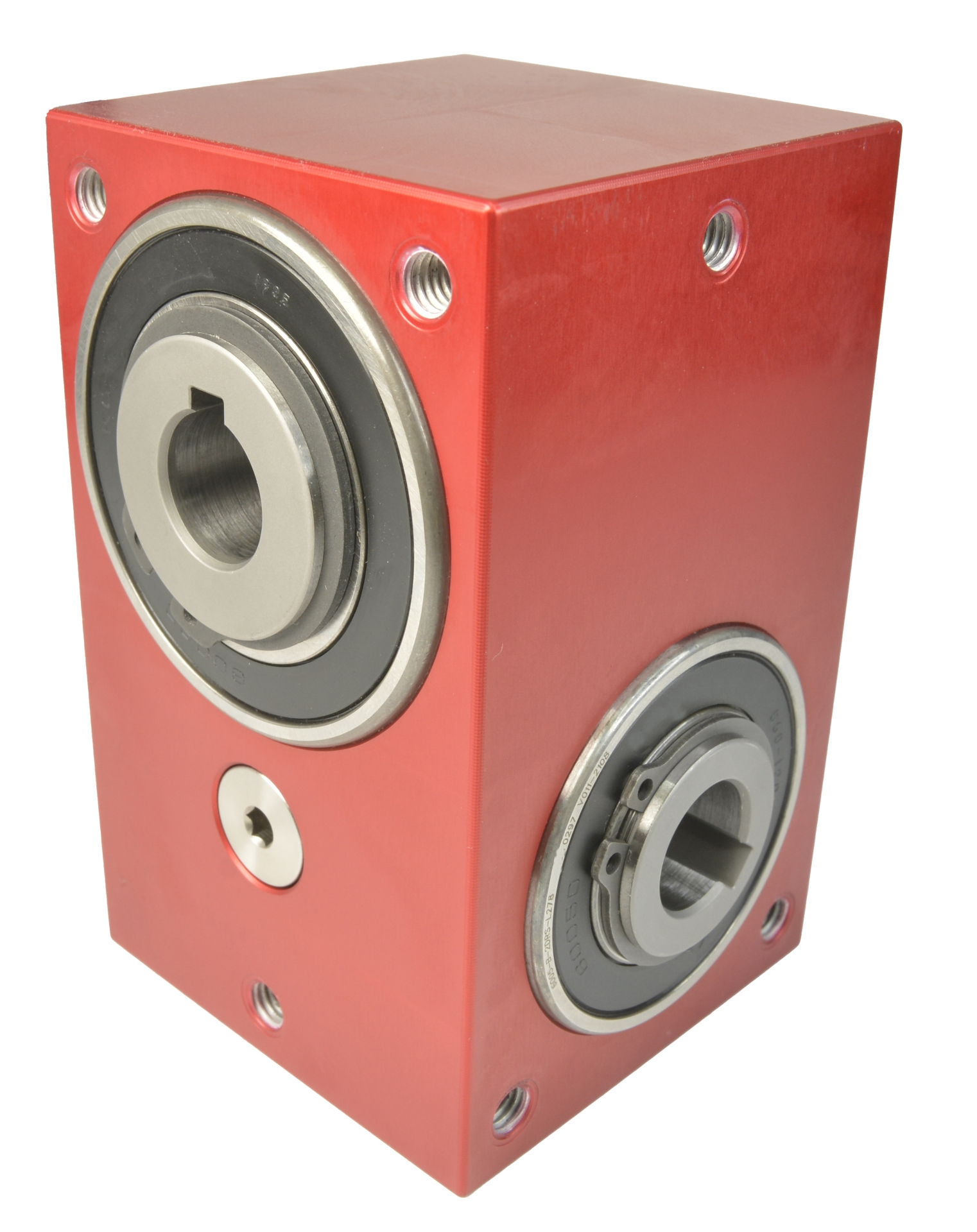

E40-LH 20Nm 40mm-Centres
Crossed Axis Helical Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Helix Direction | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j | Bore Diameter mm Ø H7 |
|---|---|---|---|---|---|---|---|
| E40-1-12-LH | 1:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 12 |
| E40-1-14-LH | 1:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 14 |
| E40-1A-12-LH | 1:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 12 |
| E40-1A-14-LH | 1:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 14 |
| E40-1AR-LH | 1:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 15 |
| E40-1AR-12-LH | 1:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 12 |
| E40-1AR-14-LH | 1:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 14 |
| E40-1A-LH | 1:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 15 |
| E40-2AR-14-LH | 2:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 14 |
| E40-2-12-LH | 2:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 12 |
| E40-2AR-12-LH | 2:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 12 |
| E40-2AR-LH | 2:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 15 |
| E40-2-14-LH | 2:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 14 |
| E40-2A-LH | 2:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 15 |
| E40-2A-14-LH | 2:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 14 |
| E40-2A-12-LH | 2:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 12 |
| E40-3-12-LH | 3:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 12 |
| E40-3AR-14-LH | 3:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 14 |
| E40-3-14-LH | 3:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 14 |
| E40-3AR-12-LH | 3:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 12 |
| E40-3A-LH | 3:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 15 |
| E40-3A-12-LH | 3:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 12 |
| E40-3A-14-LH | 3:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 14 |
| E40-3AR-LH | 3:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 15 |
| E40-4-12-LH | 4:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 12 |
| E40-4-14-LH | 4:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 14 |
| E40-4A-LH | 4:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 15 |
| E40-4A-12-LH | 4:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 12 |
| E40-4A-14-LH | 4:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 14 |
| E40-4AR-LH | 4:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 15 |
| E40-4AR-12-LH | 4:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 12 |
| E40-4AR-14-LH | 4:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 14 |
| E40-5AR-14-LH | 5:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 14 |
| E40-5AR-12-LH | 5:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 12 |
| E40-5AR-LH | 5:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.16° | 15 |
| E40-5A-14-LH | 5:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 14 |
| E40-5A-12-LH | 5:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 12 |
| E40-5A-LH | 5:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.5° | 15 |
| E40-5-14-LH | 5:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 14 |
| E40-5-12-LH | 5:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 12 |
| E40-8-12-LH | 8:1 | Left Hand | 40.00 | 20 | 7.30 | ≤0.75° | 12 |
| E40-8-14-LH | 8:1 | Left Hand | 40.00 | 20 | 7.30 | ≤0.75° | 14 |
| E40-8A-LH | 8:1 | Left Hand | 40.00 | 20 | 7.30 | ≤0.5° | 15 |
| E40-8A-12-LH | 8:1 | Left Hand | 40.00 | 20 | 7.30 | ≤0.5° | 12 |
| E40-8A-14-LH | 8:1 | Left Hand | 40.00 | 20 | 7.30 | ≤0.5° | 14 |
| E40-8AR-LH | 8:1 | Left Hand | 40.00 | 20 | 7.30 | ≤0.16° | 15 |
| E40-8AR-12-LH | 8:1 | Left Hand | 40.00 | 20 | 7.30 | ≤0.16° | 12 |
| E40-8AR-14-LH | 8:1 | Left Hand | 40.00 | 20 | 7.30 | ≤0.16° | 14 |
| E40-10AR-14-LH | 10:1 | Left Hand | 40.00 | 20 | 8.00 | ≤0.16° | 14 |
| E40-10AR-12-LH | 10:1 | Left Hand | 40.00 | 20 | 8.00 | ≤0.16° | 12 |
| E40-10AR-LH | 10:1 | Left Hand | 40.00 | 20 | 8.00 | ≤0.16° | 15 |
| E40-10A-14-LH | 10:1 | Left Hand | 40.00 | 20 | 8.00 | ≤0.5° | 14 |
| E40-10A-12-LH | 10:1 | Left Hand | 40.00 | 20 | 8.00 | ≤0.5° | 12 |
| E40-10A-LH | 10:1 | Left Hand | 40.00 | 20 | 8.00 | ≤0.5° | 15 |
| E40-10-14-LH | 10:1 | Left Hand | 40.00 | 20 | 8.00 | ≤0.75° | 14 |
| E40-10-12-LH | 10:1 | Left Hand | 40.00 | 20 | 8.00 | ≤0.75° | 12 |
| E40-20AR-14-LH | 20:1 | Left Hand | 40.00 | 20 | 8.80 | ≤0.16° | 14 |
| E40-20AR-12-LH | 20:1 | Left Hand | 40.00 | 20 | 8.80 | ≤0.16° | 12 |
| E40-20AR-LH | 20:1 | Left Hand | 40.00 | 20 | 8.80 | ≤0.16° | 15 |
| E40-20A-14-LH | 20:1 | Left Hand | 40.00 | 20 | 8.80 | ≤0.5° | 14 |
| E40-20A-12-LH | 20:1 | Left Hand | 40.00 | 20 | 8.80 | ≤0.5° | 12 |
| E40-20A-LH | 20:1 | Left Hand | 40.00 | 20 | 8.80 | ≤0.5° | 15 |
| E40-20-14-LH | 20:1 | Left Hand | 40.00 | 20 | 8.80 | ≤0.75° | 14 |
| E40-20-12-LH | 20:1 | Left Hand | 40.00 | 20 | 8.80 | ≤0.75° | 12 |
| E40-40AR-14-LH | 40:1 | Left Hand | 40.00 | 20 | 9.70 | ≤0.16° | 14 |
| E40-40AR-12-LH | 40:1 | Left Hand | 40.00 | 20 | 9.70 | ≤0.16° | 12 |
| E40-40AR-LH | 40:1 | Left Hand | 40.00 | 20 | 9.70 | ≤0.16° | 15 |
| E40-40A-14-LH | 40:1 | Left Hand | 40.00 | 20 | 9.70 | ≤0.5° | 14 |
| E40-40A-12-LH | 40:1 | Left Hand | 40.00 | 20 | 9.70 | ≤0.5° | 12 |
| E40-40A-LH | 40:1 | Left Hand | 40.00 | 20 | 9.70 | ≤0.5° | 15 |
| E40-40-14-LH | 40:1 | Left Hand | 40.00 | 20 | 9.70 | ≤0.75° | 14 |
| E40-40-12-LH | 40:1 | Left Hand | 40.00 | 20 | 9.70 | ≤0.75° | 12 |
| E40-8-LH | 8:1 | Left Hand | 40.00 | 20 | 7.30 | ≤0.75° | 15 |
| E40-5-LH | 5:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 15 |
| E40-40-LH | 40:1 | Left Hand | 40.00 | 20 | 9.70 | ≤0.75° | 15 |
| E40-4-LH | 4:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 15 |
| E40-3-LH | 3:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 15 |
| E40-20-LH | 20:1 | Left Hand | 40.00 | 20 | 8.80 | ≤0.75° | 15 |
| E40-2-LH | 2:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 15 |
| E40-10-LH | 10:1 | Left Hand | 40.00 | 20 | 8.00 | ≤0.75° | 15 |
| E40-1-LH | 1:1 | Left Hand | 40.00 | 10 | 3.80 | ≤0.75° | 15 |
