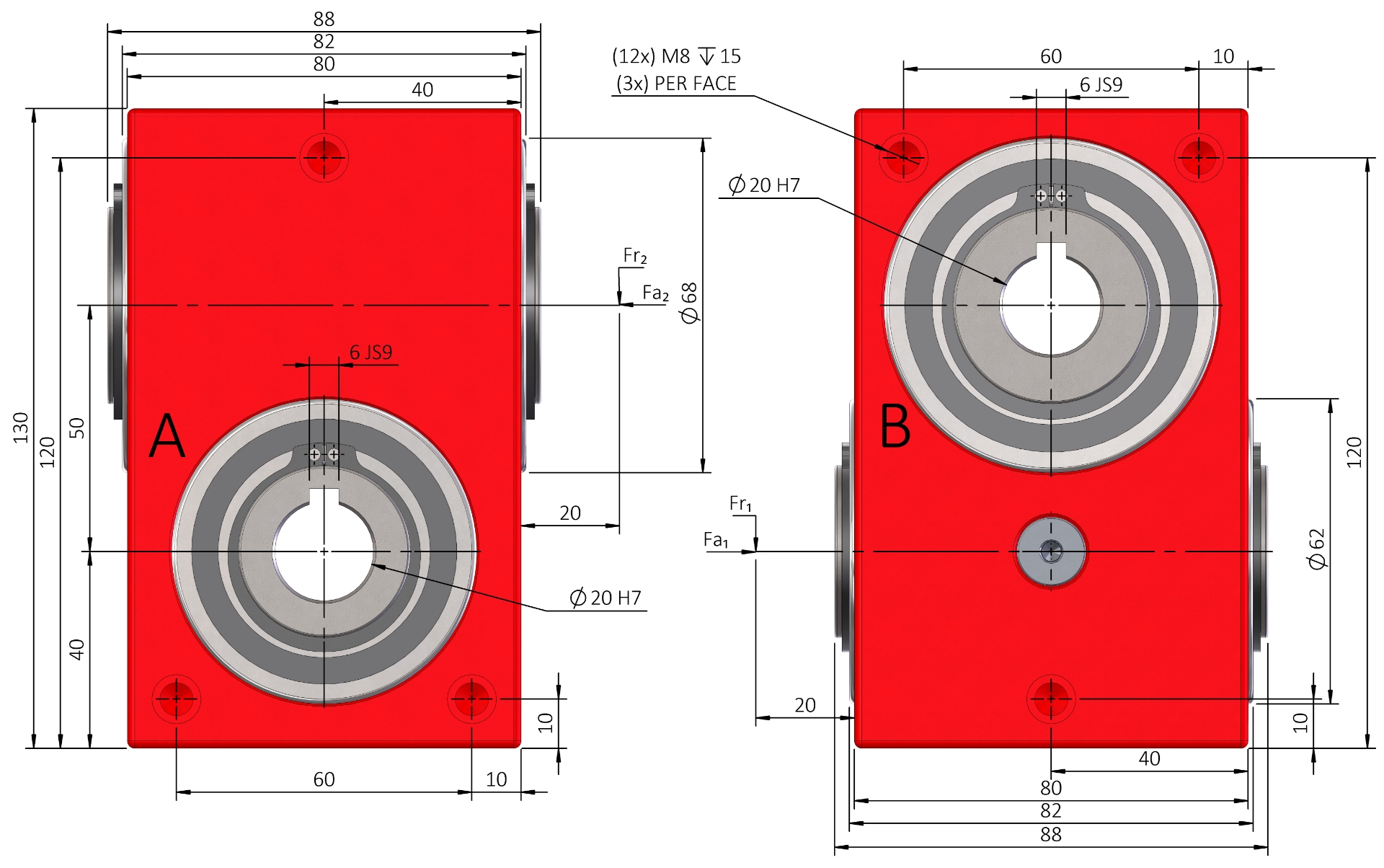

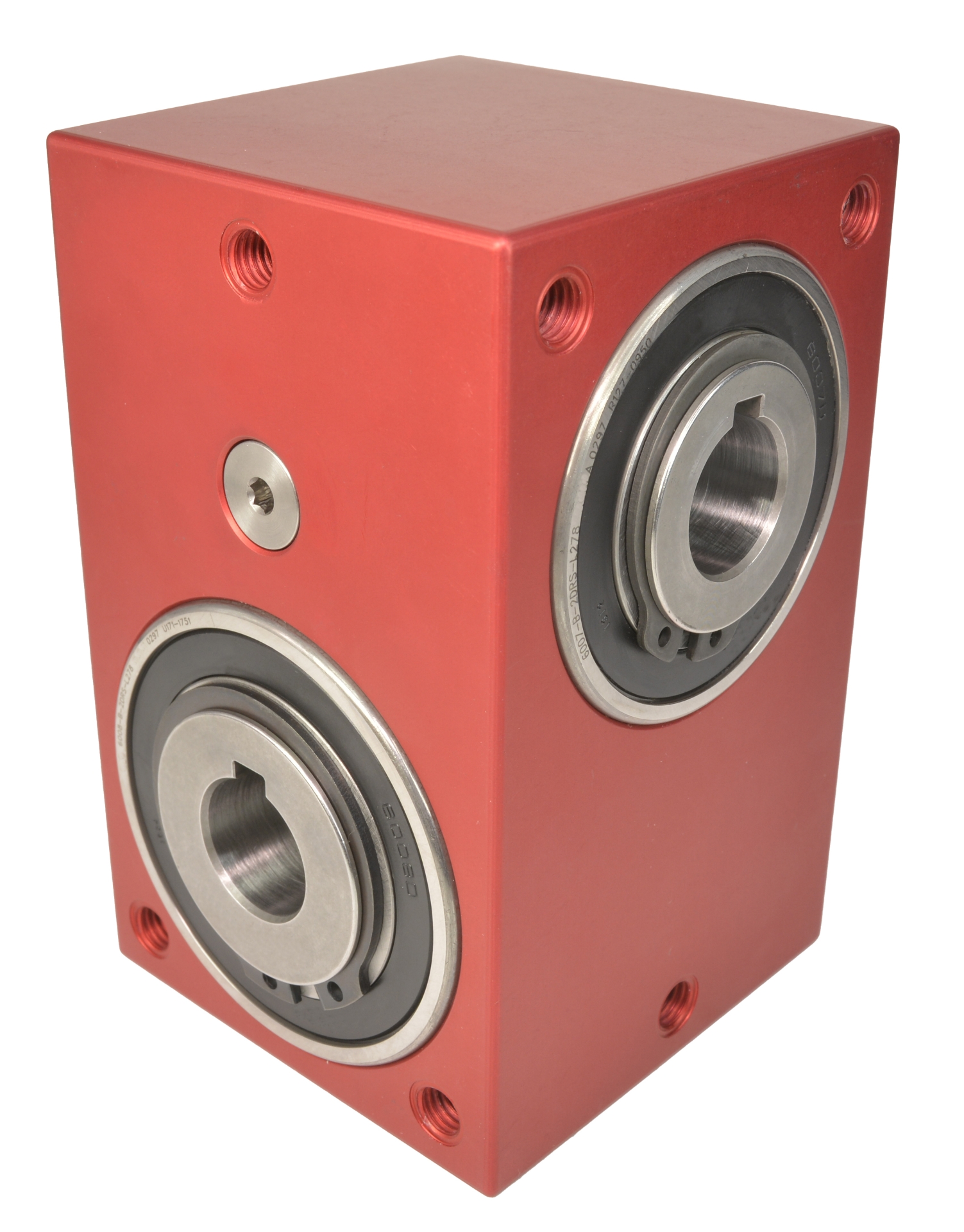

E50-LH 41Nm 50mm-Centres
Crossed Axis Helical Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Helix Direction | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j | Bore Diameter mm Ø H7 |
|---|---|---|---|---|---|---|---|
| E50-1-19-LH | 1:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 19 |
| E50-1-22-LH | 1:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 22 |
| E50-1A-19-LH | 1:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 19 |
| E50-1A-22-LH | 1:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 22 |
| E50-1AR-19-LH | 1:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 19 |
| E50-1AR-22-LH | 1:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 22 |
| E50-1AR-LH | 1:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 20 |
| E50-1A-LH | 1:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 20 |
| E50-2-19-LH | 2:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 19 |
| E50-2-22-LH | 2:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 22 |
| E50-2A-LH | 2:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 20 |
| E50-2A-19-LH | 2:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 19 |
| E50-2A-22-LH | 2:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 22 |
| E50-2AR-LH | 2:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 20 |
| E50-2AR-19-LH | 2:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 19 |
| E50-2AR-22-LH | 2:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 22 |
| E50-3-19-LH | 3:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 19 |
| E50-3-22-LH | 3:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 22 |
| E50-3A-LH | 3:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 20 |
| E50-3A-19-LH | 3:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 19 |
| E50-3A-22-LH | 3:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 22 |
| E50-3AR-LH | 3:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 20 |
| E50-3AR-19-LH | 3:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 19 |
| E50-3AR-22-LH | 3:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 22 |
| E50-4-19-LH | 4:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 19 |
| E50-4-22-LH | 4:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 22 |
| E50-4A-LH | 4:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 20 |
| E50-4A-19-LH | 4:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 19 |
| E50-4A-22-LH | 4:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 22 |
| E50-4AR-LH | 4:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 20 |
| E50-4AR-19-LH | 4:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 19 |
| E50-4AR-22-LH | 4:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 22 |
| E50-5-19-LH | 5:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 19 |
| E50-5-22-LH | 5:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 22 |
| E50-5A-LH | 5:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 20 |
| E50-5A-19-LH | 5:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 19 |
| E50-5A-22-LH | 5:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.5° | 22 |
| E50-5AR-LH | 5:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 20 |
| E50-5AR-19-LH | 5:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 19 |
| E50-5AR-22-LH | 5:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.16° | 22 |
| E50-8-19-LH | 8:1 | Left Hand | 50.00 | 40 | 11.00 | ≤0.75° | 19 |
| E50-8AR-22-LH | 8:1 | Left Hand | 50.00 | 40 | 11.00 | ≤0.16° | 22 |
| E50-8-22-LH | 8:1 | Left Hand | 50.00 | 40 | 11.00 | ≤0.75° | 22 |
| E50-8A-LH | 8:1 | Left Hand | 50.00 | 40 | 11.00 | ≤0.5° | 20 |
| E50-8A-19-LH | 8:1 | Left Hand | 50.00 | 40 | 11.00 | ≤0.5° | 19 |
| E50-8A-22-LH | 8:1 | Left Hand | 50.00 | 40 | 11.00 | ≤0.5° | 22 |
| E50-8AR-LH | 8:1 | Left Hand | 50.00 | 40 | 11.00 | ≤0.16° | 20 |
| E50-8AR-19-LH | 8:1 | Left Hand | 50.00 | 40 | 11.00 | ≤0.16° | 19 |
| E50-10-19-LH | 10:1 | Left Hand | 50.00 | 40 | 13.00 | ≤0.75° | 19 |
| E50-10-22-LH | 10:1 | Left Hand | 50.00 | 40 | 13.00 | ≤0.75° | 22 |
| E50-10A-LH | 10:1 | Left Hand | 50.00 | 40 | 13.00 | ≤0.5° | 20 |
| E50-10A-19-LH | 10:1 | Left Hand | 50.00 | 40 | 13.00 | ≤0.5° | 19 |
| E50-10A-22-LH | 10:1 | Left Hand | 50.00 | 40 | 13.00 | ≤0.5° | 22 |
| E50-10AR-LH | 10:1 | Left Hand | 50.00 | 40 | 13.00 | ≤0.16° | 20 |
| E50-10AR-19-LH | 10:1 | Left Hand | 50.00 | 40 | 13.00 | ≤0.16° | 19 |
| E50-10AR-22-LH | 10:1 | Left Hand | 50.00 | 40 | 13.00 | ≤0.16° | 22 |
| E50-20-19-LH | 20:1 | Left Hand | 50.00 | 40 | 15.00 | ≤0.75° | 19 |
| E50-20-22-LH | 20:1 | Left Hand | 50.00 | 40 | 15.00 | ≤0.75° | 22 |
| E50-20A-LH | 20:1 | Left Hand | 50.00 | 40 | 15.00 | ≤0.5° | 20 |
| E50-20A-19-LH | 20:1 | Left Hand | 50.00 | 40 | 15.00 | ≤0.5° | 19 |
| E50-20A-22-LH | 20:1 | Left Hand | 50.00 | 40 | 15.00 | ≤0.5° | 22 |
| E50-20AR-LH | 20:1 | Left Hand | 50.00 | 40 | 15.00 | ≤0.16° | 20 |
| E50-20AR-19-LH | 20:1 | Left Hand | 50.00 | 40 | 15.00 | ≤0.16° | 19 |
| E50-20AR-22-LH | 20:1 | Left Hand | 50.00 | 40 | 15.00 | ≤0.16° | 22 |
| E50-40-19-LH | 40:1 | Left Hand | 50.00 | 40 | 17.00 | ≤0.75° | 19 |
| E50-40-22-LH | 40:1 | Left Hand | 50.00 | 40 | 17.00 | ≤0.75° | 22 |
| E50-40A-LH | 40:1 | Left Hand | 50.00 | 40 | 17.00 | ≤0.5° | 20 |
| E50-40A-19-LH | 40:1 | Left Hand | 50.00 | 40 | 17.00 | ≤0.5° | 19 |
| E50-40A-22-LH | 40:1 | Left Hand | 50.00 | 40 | 17.00 | ≤0.5° | 22 |
| E50-40AR-LH | 40:1 | Left Hand | 50.00 | 40 | 17.00 | ≤0.16° | 20 |
| E50-40AR-19-LH | 40:1 | Left Hand | 50.00 | 40 | 17.00 | ≤0.16° | 19 |
| E50-40AR-22-LH | 40:1 | Left Hand | 50.00 | 40 | 17.00 | ≤0.16° | 22 |
| E50-1-LH | 1:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 20 |
| E50-10-LH | 10:1 | Left Hand | 50.00 | 40 | 13.00 | ≤0.75° | 20 |
| E50-2-LH | 2:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 20 |
| E50-20-LH | 20:1 | Left Hand | 50.00 | 40 | 15.00 | ≤0.75° | 20 |
| E50-3-LH | 3:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 20 |
| E50-4-LH | 4:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 20 |
| E50-40-LH | 40:1 | Left Hand | 50.00 | 40 | 17.00 | ≤0.75° | 20 |
| E50-5-LH | 5:1 | Left Hand | 50.00 | 16 | 6.00 | ≤0.75° | 20 |
| E50-8-LH | 8:1 | Left Hand | 50.00 | 40 | 11.00 | ≤0.75° | 20 |
