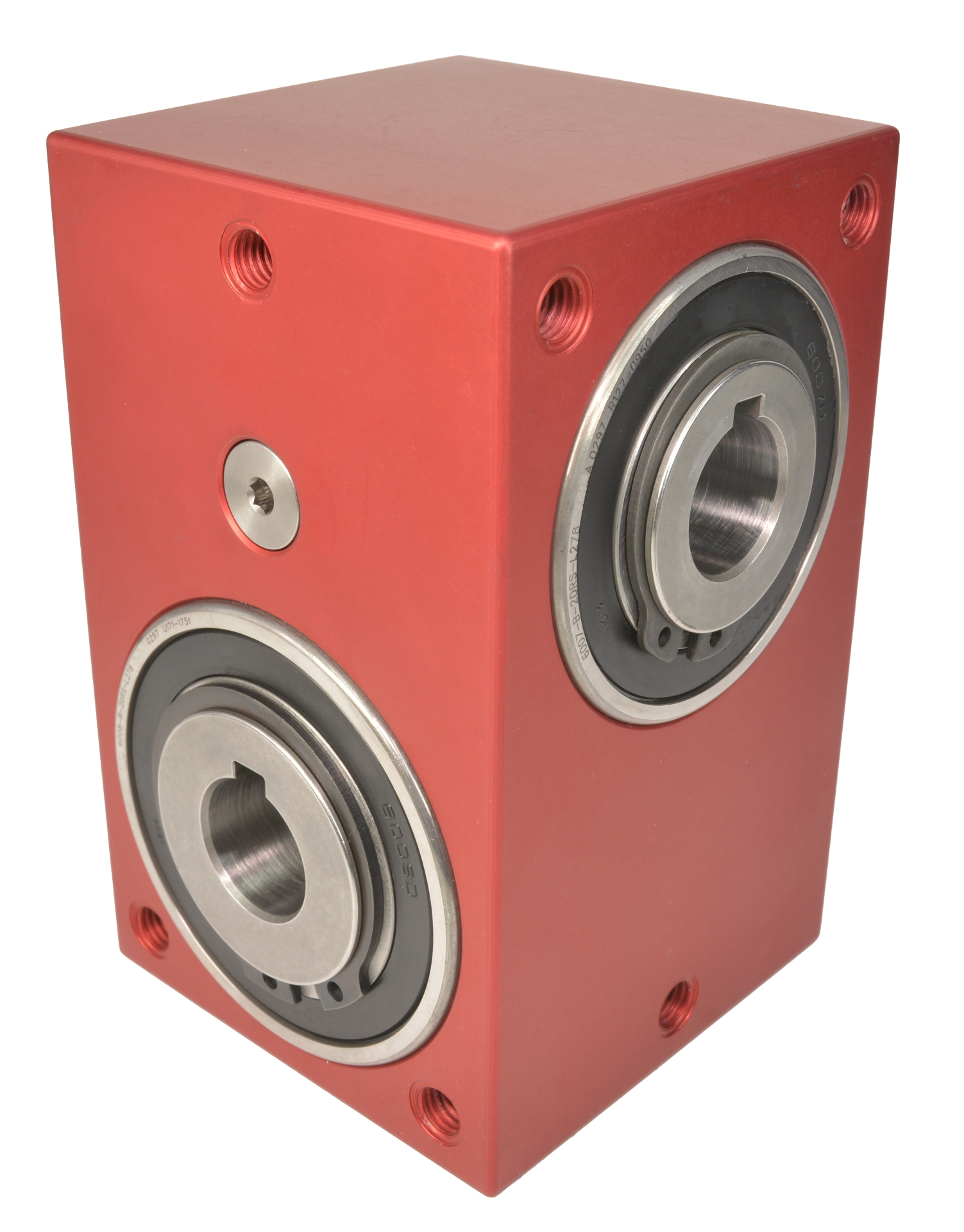

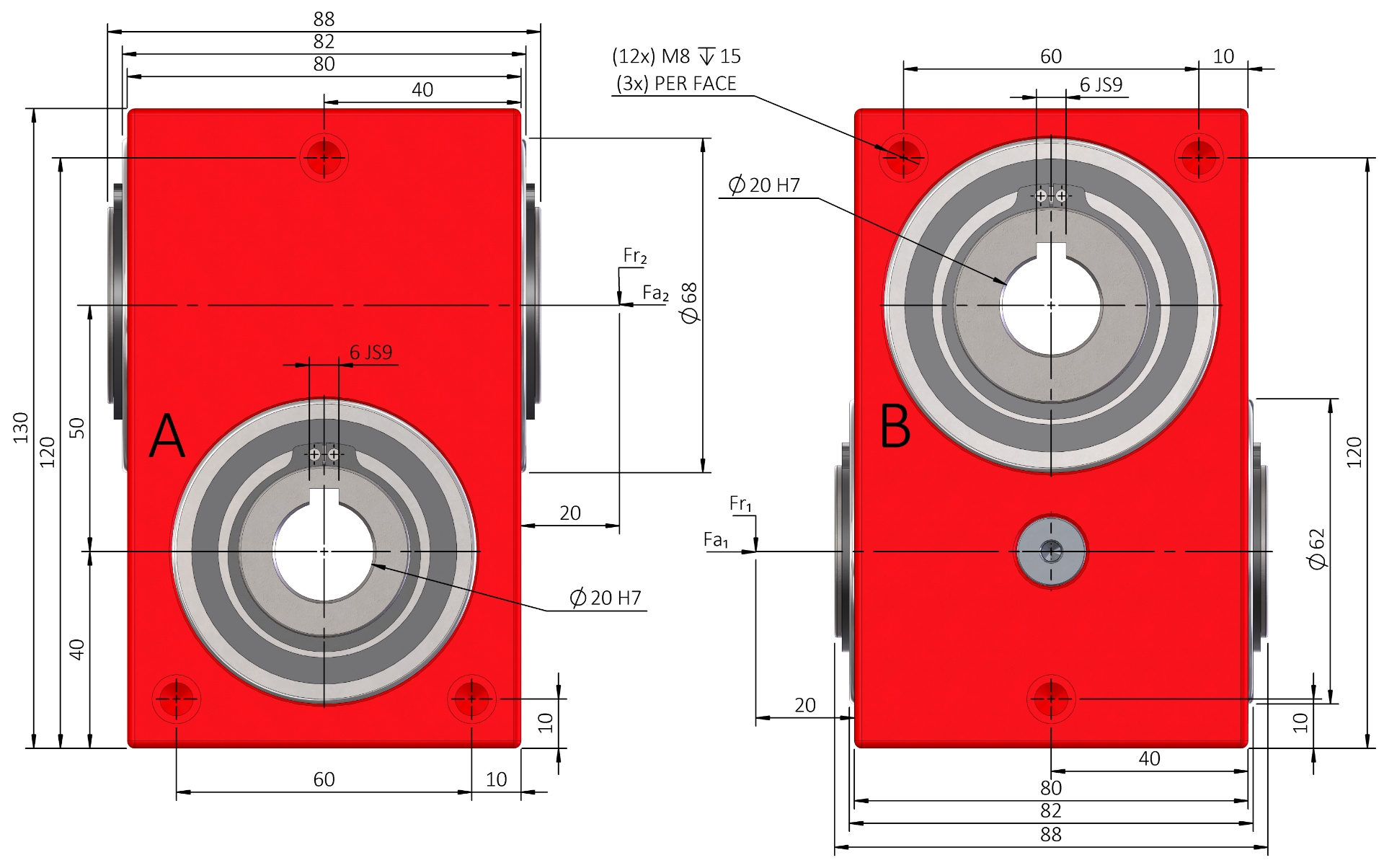

E50-RH 41Nm 50mm-Centres
Crossed Axis Helical Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Helix Direction | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j | Bore Diameter mm Ø H7 |
|---|---|---|---|---|---|---|---|
| E50-1 | 1:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 20 |
| E50-2 | 2:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 20 |
| E50-3 | 3:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 20 |
| E50-4 | 4:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 20 |
| E50-5 | 5:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 20 |
| E50-8 | 8:1 | Right Hand | 50.00 | 40 | 11.00 | ≤0.75° | 20 |
| E50-10 | 10:1 | Right Hand | 50.00 | 40 | 13.00 | ≤0.75° | 20 |
| E50-20 | 20:1 | Right Hand | 50.00 | 40 | 15.00 | ≤0.75° | 20 |
| E50-40 | 40:1 | Right Hand | 50.00 | 40 | 17.00 | ≤0.75° | 20 |
| E50-1-19 | 1:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 19 |
| E50-2-19 | 2:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 19 |
| E50-3-19 | 3:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 19 |
| E50-4-19 | 4:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 19 |
| E50-5-19 | 5:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 19 |
| E50-8-19 | 8:1 | Right Hand | 50.00 | 40 | 11.00 | ≤0.75° | 19 |
| E50-10-19 | 10:1 | Right Hand | 50.00 | 40 | 13.00 | ≤0.75° | 19 |
| E50-20-19 | 20:1 | Right Hand | 50.00 | 40 | 15.00 | ≤0.75° | 19 |
| E50-40-19 | 40:1 | Right Hand | 50.00 | 40 | 17.00 | ≤0.75° | 19 |
| E50-1-22 | 1:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 22 |
| E50-2-22 | 2:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 22 |
| E50-3-22 | 3:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 22 |
| E50-4-22 | 4:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 22 |
| E50-5-22 | 5:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.75° | 22 |
| E50-8-22 | 8:1 | Right Hand | 50.00 | 40 | 11.00 | ≤0.75° | 22 |
| E50-10-22 | 10:1 | Right Hand | 50.00 | 40 | 13.00 | ≤0.75° | 22 |
| E50-20-22 | 20:1 | Right Hand | 50.00 | 40 | 15.00 | ≤0.75° | 22 |
| E50-40-22 | 40:1 | Right Hand | 50.00 | 40 | 17.00 | ≤0.75° | 22 |
| E50-1A | 1:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 20 |
| E50-2A | 2:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 20 |
| E50-3A | 3:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 20 |
| E50-4A | 4:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 20 |
| E50-5A | 5:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 20 |
| E50-8A | 8:1 | Right Hand | 50.00 | 40 | 11.00 | ≤0.5° | 20 |
| E50-10A | 10:1 | Right Hand | 50.00 | 40 | 13.00 | ≤0.5° | 20 |
| E50-20A | 20:1 | Right Hand | 50.00 | 40 | 15.00 | ≤0.5° | 20 |
| E50-40A | 40:1 | Right Hand | 50.00 | 40 | 17.00 | ≤0.5° | 20 |
| E50-1A-19 | 1:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 19 |
| E50-2A-19 | 2:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 19 |
| E50-3A-19 | 3:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 19 |
| E50-4A-19 | 4:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 19 |
| E50-5A-19 | 5:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 19 |
| E50-8A-19 | 8:1 | Right Hand | 50.00 | 40 | 11.00 | ≤0.5° | 19 |
| E50-10A-19 | 10:1 | Right Hand | 50.00 | 40 | 13.00 | ≤0.5° | 19 |
| E50-20A-19 | 20:1 | Right Hand | 50.00 | 40 | 15.00 | ≤0.5° | 19 |
| E50-40A-19 | 40:1 | Right Hand | 50.00 | 40 | 17.00 | ≤0.5° | 19 |
| E50-1A-22 | 1:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 22 |
| E50-2A-22 | 2:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 22 |
| E50-3A-22 | 3:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 22 |
| E50-4A-22 | 4:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 22 |
| E50-5A-22 | 5:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.5° | 22 |
| E50-8A-22 | 8:1 | Right Hand | 50.00 | 40 | 11.00 | ≤0.5° | 22 |
| E50-10A-22 | 10:1 | Right Hand | 50.00 | 40 | 13.00 | ≤0.5° | 22 |
| E50-20A-22 | 20:1 | Right Hand | 50.00 | 40 | 15.00 | ≤0.5° | 22 |
| E50-40A-22 | 40:1 | Right Hand | 50.00 | 40 | 17.00 | ≤0.5° | 22 |
| E50-1AR | 1:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 20 |
| E50-1AR-19 | 1:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 19 |
| E50-1AR-22 | 1:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 22 |
| E50-2AR | 2:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 20 |
| E50-2AR-19 | 2:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 19 |
| E50-2AR-22 | 2:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 22 |
| E50-3AR | 3:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 20 |
| E50-3AR-19 | 3:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 19 |
| E50-3AR-22 | 3:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 22 |
| E50-4AR | 4:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 20 |
| E50-4AR-19 | 4:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 19 |
| E50-4AR-22 | 4:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 22 |
| E50-5AR | 5:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 20 |
| E50-5AR-19 | 5:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 19 |
| E50-5AR-22 | 5:1 | Right Hand | 50.00 | 16 | 6.00 | ≤0.16° | 22 |
| E50-8AR | 8:1 | Right Hand | 50.00 | 40 | 11.00 | ≤0.16° | 20 |
| E50-8AR-19 | 8:1 | Right Hand | 50.00 | 40 | 11.00 | ≤0.16° | 19 |
| E50-8AR-22 | 8:1 | Right Hand | 50.00 | 40 | 11.00 | ≤0.16° | 22 |
| E50-10AR | 10:1 | Right Hand | 50.00 | 40 | 13.00 | ≤0.16° | 20 |
| E50-10AR-19 | 10:1 | Right Hand | 50.00 | 40 | 13.00 | ≤0.16° | 19 |
| E50-10AR-22 | 10:1 | Right Hand | 50.00 | 40 | 13.00 | ≤0.16° | 22 |
| E50-20AR | 20:1 | Right Hand | 50.00 | 40 | 15.00 | ≤0.16° | 20 |
| E50-20AR-19 | 20:1 | Right Hand | 50.00 | 40 | 15.00 | ≤0.16° | 19 |
| E50-20AR-22 | 20:1 | Right Hand | 50.00 | 40 | 15.00 | ≤0.16° | 22 |
| E50-40AR | 40:1 | Right Hand | 50.00 | 40 | 17.00 | ≤0.16° | 20 |
| E50-40AR-19 | 40:1 | Right Hand | 50.00 | 40 | 17.00 | ≤0.16° | 19 |
| E50-40AR-22 | 40:1 | Right Hand | 50.00 | 40 | 17.00 | ≤0.16° | 22 |
