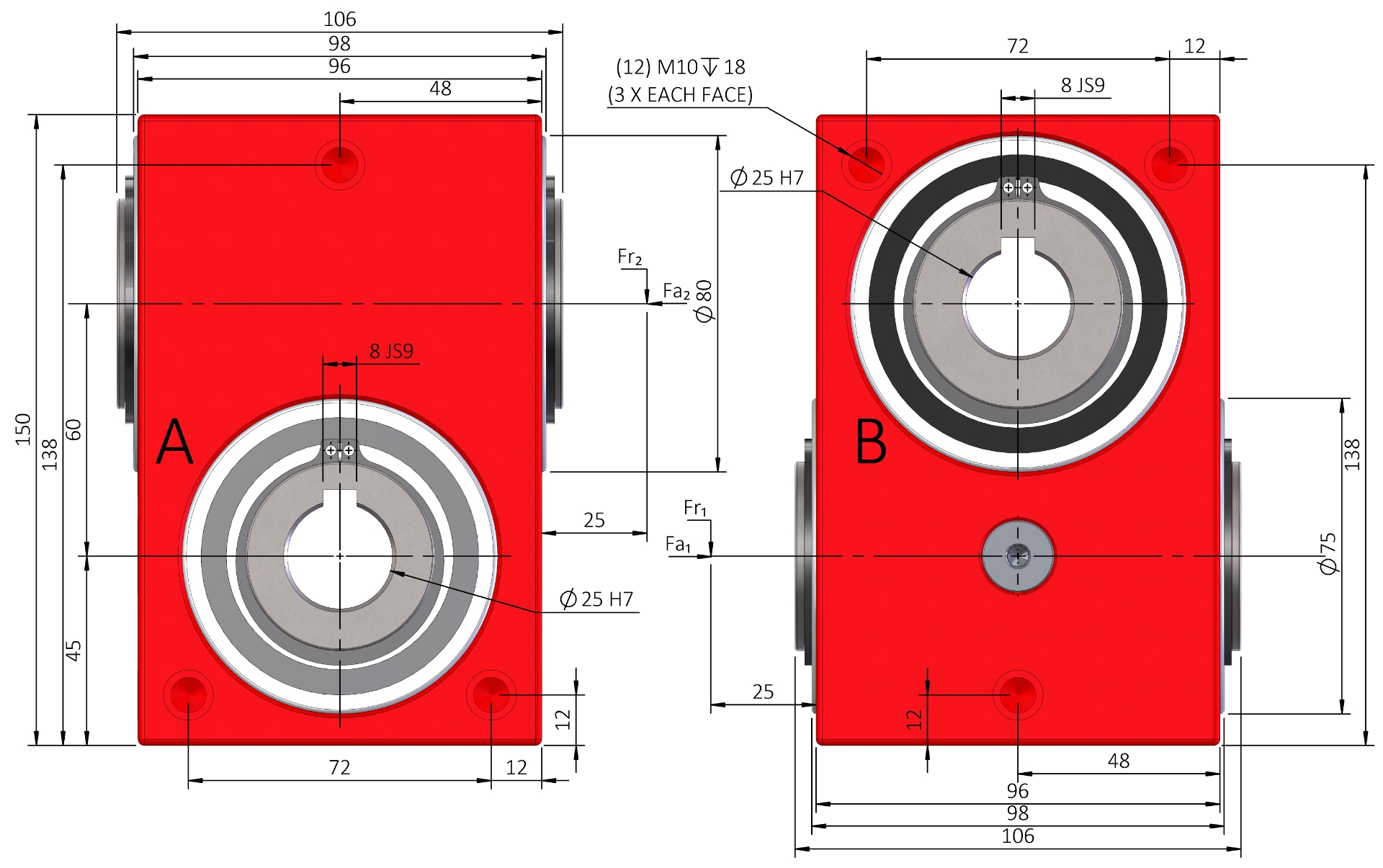

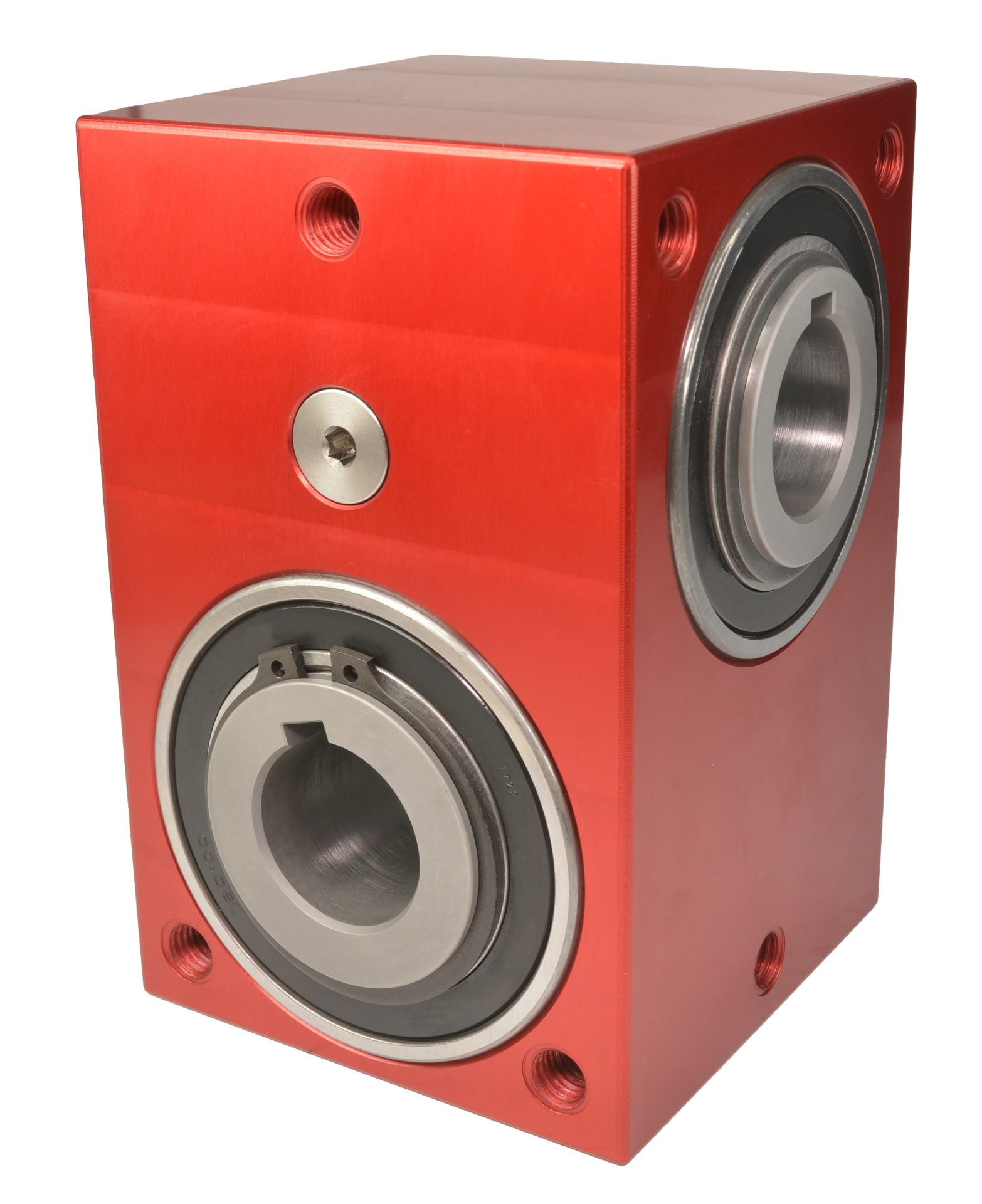

E60-LH 62Nm 60mm-Centres
Crossed Axis Helical Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Helix Direction | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j | Bore Diameter mm Ø H7 |
|---|---|---|---|---|---|---|---|
| E60-1-LH | 1:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 25 |
| E60-1-22-LH | 1:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 22 |
| E60-1-24-LH | 1:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 24 |
| E60-1-30-LH | 1:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 30 |
| E60-1A-LH | 1:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 25 |
| E60-1A-22-LH | 1:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 22 |
| E60-1A-24-LH | 1:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 24 |
| E60-1A-30-LH | 1:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 30 |
| E60-1AR-LH | 1:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 25 |
| E60-1AR-22-LH | 1:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 22 |
| E60-1AR-24-LH | 1:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 24 |
| E60-1AR-30-LH | 1:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 30 |
| E60-2-LH | 2:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 25 |
| E60-2-22-LH | 2:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 22 |
| E60-2-24-LH | 2:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 24 |
| E60-2-30-LH | 2:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 30 |
| E60-2A-LH | 2:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 25 |
| E60-2A-22-LH | 2:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 22 |
| E60-2A-24-LH | 2:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 24 |
| E60-2A-30-LH | 2:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 30 |
| E60-2AR-LH | 2:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 25 |
| E60-2AR-22-LH | 2:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 22 |
| E60-2AR-24-LH | 2:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 24 |
| E60-2AR-30-LH | 2:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 30 |
| E60-3-LH | 3:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 25 |
| E60-3-22-LH | 3:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 22 |
| E60-3-24-LH | 3:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 24 |
| E60-3-30-LH | 3:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 30 |
| E60-3A-LH | 3:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 25 |
| E60-3A-22-LH | 3:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 22 |
| E60-3A-24-LH | 3:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 24 |
| E60-3A-30-LH | 3:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 30 |
| E60-3AR-LH | 3:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 25 |
| E60-3AR-22-LH | 3:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 22 |
| E60-3AR-24-LH | 3:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 24 |
| E60-3AR-30-LH | 3:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 30 |
| E60-4-LH | 4:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 25 |
| E60-4-22-LH | 4:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 22 |
| E60-4-24-LH | 4:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 24 |
| E60-4-30-LH | 4:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 30 |
| E60-4A-LH | 4:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 25 |
| E60-4A-22-LH | 4:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 22 |
| E60-4A-24-LH | 4:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 24 |
| E60-4A-30-LH | 4:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 30 |
| E60-4AR-LH | 4:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 25 |
| E60-4AR-22-LH | 4:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 22 |
| E60-4AR-24-LH | 4:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 24 |
| E60-4AR-30-LH | 4:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 30 |
| E60-5-LH | 5:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 25 |
| E60-5-22-LH | 5:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 22 |
| E60-5-24-LH | 5:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 24 |
| E60-5-30-LH | 5:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.75° | 30 |
| E60-5A-LH | 5:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 25 |
| E60-5A-22-LH | 5:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 22 |
| E60-5A-24-LH | 5:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 24 |
| E60-5A-30-LH | 5:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.5° | 30 |
| E60-5AR-LH | 5:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 25 |
| E60-5AR-22-LH | 5:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 22 |
| E60-5AR-24-LH | 5:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 24 |
| E60-5AR-30-LH | 5:1 | Left Hand | 60.00 | 24 | 8.00 | ≤0.16° | 30 |
| E60-8AR-30-LH | 8:1 | Left Hand | 60.00 | 60 | 17.80 | ≤0.16° | 30 |
| E60-8AR-24-LH | 8:1 | Left Hand | 60.00 | 60 | 17.80 | ≤0.16° | 24 |
| E60-8AR-22-LH | 8:1 | Left Hand | 60.00 | 60 | 17.80 | ≤0.16° | 22 |
| E60-8AR-LH | 8:1 | Left Hand | 60.00 | 60 | 17.80 | ≤0.16° | 25 |
| E60-8A-30-LH | 8:1 | Left Hand | 60.00 | 60 | 17.80 | ≤0.5° | 30 |
| E60-8A-24-LH | 8:1 | Left Hand | 60.00 | 60 | 17.80 | ≤0.5° | 24 |
| E60-8A-22-LH | 8:1 | Left Hand | 60.00 | 60 | 17.80 | ≤0.5° | 22 |
| E60-8A-LH | 8:1 | Left Hand | 60.00 | 60 | 17.80 | ≤0.5° | 25 |
| E60-8-30-LH | 8:1 | Left Hand | 60.00 | 60 | 17.80 | ≤0.75° | 30 |
| E60-8-24-LH | 8:1 | Left Hand | 60.00 | 60 | 17.80 | ≤0.75° | 24 |
| E60-8-22-LH | 8:1 | Left Hand | 60.00 | 60 | 17.80 | ≤0.75° | 22 |
| E60-8-LH | 8:1 | Left Hand | 60.00 | 60 | 17.80 | ≤0.75° | 25 |
| E60-10AR-30-LH | 10:1 | Left Hand | 60.00 | 60 | 21.30 | ≤0.16° | 30 |
| E60-10AR-24-LH | 10:1 | Left Hand | 60.00 | 60 | 21.30 | ≤0.16° | 24 |
| E60-10AR-22-LH | 10:1 | Left Hand | 60.00 | 60 | 21.30 | ≤0.16° | 22 |
| E60-10AR-LH | 10:1 | Left Hand | 60.00 | 60 | 21.30 | ≤0.16° | 25 |
| E60-10A-30-LH | 10:1 | Left Hand | 60.00 | 60 | 21.30 | ≤0.5° | 30 |
| E60-10A-24-LH | 10:1 | Left Hand | 60.00 | 60 | 21.30 | ≤0.5° | 24 |
| E60-10A-22-LH | 10:1 | Left Hand | 60.00 | 60 | 21.30 | ≤0.5° | 22 |
| E60-10A-LH | 10:1 | Left Hand | 60.00 | 60 | 21.30 | ≤0.5° | 25 |
| E60-10-30-LH | 10:1 | Left Hand | 60.00 | 60 | 21.30 | ≤0.75° | 30 |
| E60-10-24-LH | 10:1 | Left Hand | 60.00 | 60 | 21.30 | ≤0.75° | 24 |
| E60-10-22-LH | 10:1 | Left Hand | 60.00 | 60 | 21.30 | ≤0.75° | 22 |
| E60-10-LH | 10:1 | Left Hand | 60.00 | 60 | 21.30 | ≤0.75° | 25 |
| E60-20-LH | 20:1 | Left Hand | 60.00 | 60 | 22.00 | ≤0.75° | 25 |
| E60-20-22-LH | 20:1 | Left Hand | 60.00 | 60 | 22.00 | ≤0.75° | 22 |
| E60-20-24-LH | 20:1 | Left Hand | 60.00 | 60 | 22.00 | ≤0.75° | 24 |
| E60-20-30-LH | 20:1 | Left Hand | 60.00 | 60 | 22.00 | ≤0.75° | 30 |
| E60-20A-LH | 20:1 | Left Hand | 60.00 | 60 | 22.00 | ≤0.5° | 25 |
| E60-20A-22-LH | 20:1 | Left Hand | 60.00 | 60 | 22.00 | ≤0.5° | 22 |
| E60-20A-24-LH | 20:1 | Left Hand | 60.00 | 60 | 22.00 | ≤0.5° | 24 |
| E60-20A-30-LH | 20:1 | Left Hand | 60.00 | 60 | 22.00 | ≤0.5° | 30 |
| E60-20AR-LH | 20:1 | Left Hand | 60.00 | 60 | 22.00 | ≤0.16° | 25 |
| E60-20AR-22-LH | 20:1 | Left Hand | 60.00 | 60 | 22.00 | ≤0.16° | 22 |
| E60-20AR-24-LH | 20:1 | Left Hand | 60.00 | 60 | 22.00 | ≤0.16° | 24 |
| E60-20AR-30-LH | 20:1 | Left Hand | 60.00 | 60 | 22.00 | ≤0.16° | 30 |
| E60-40-LH | 40:1 | Left Hand | 60.00 | 60 | 24.00 | ≤0.75° | 25 |
| E60-40-22-LH | 40:1 | Left Hand | 60.00 | 60 | 24.00 | ≤0.75° | 22 |
| E60-40-24-LH | 40:1 | Left Hand | 60.00 | 60 | 24.00 | ≤0.75° | 24 |
| E60-40-30-LH | 40:1 | Left Hand | 60.00 | 60 | 24.00 | ≤0.75° | 30 |
| E60-40A-LH | 40:1 | Left Hand | 60.00 | 60 | 24.00 | ≤0.5° | 25 |
| E60-40A-22-LH | 40:1 | Left Hand | 60.00 | 60 | 24.00 | ≤0.5° | 22 |
| E60-40AR-22-LH | 40:1 | Left Hand | 60.00 | 60 | 24.00 | ≤0.16° | 22 |
| E60-40AR-24-LH | 40:1 | Left Hand | 60.00 | 60 | 24.00 | ≤0.16° | 24 |
| E60-40AR-30-LH | 40:1 | Left Hand | 60.00 | 60 | 24.00 | ≤0.16° | 30 |
| E60-40AR-LH | 40:1 | Left Hand | 60.00 | 60 | 24.00 | ≤0.16° | 25 |
| E60-40A-30-LH | 40:1 | Left Hand | 60.00 | 60 | 24.00 | ≤0.5° | 30 |
| E60-40A-24-LH | 40:1 | Left Hand | 60.00 | 60 | 24.00 | ≤0.5° | 24 |
