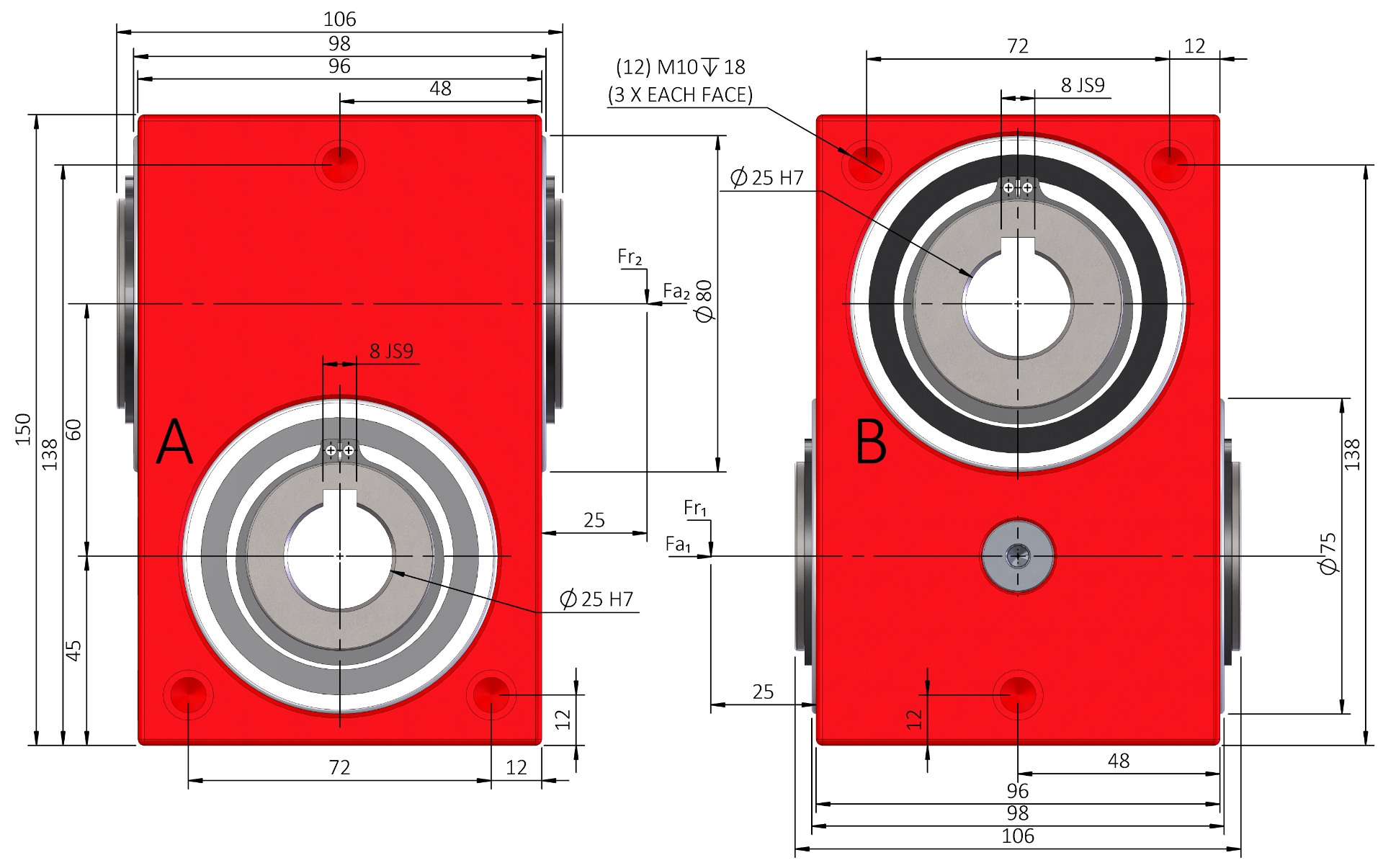

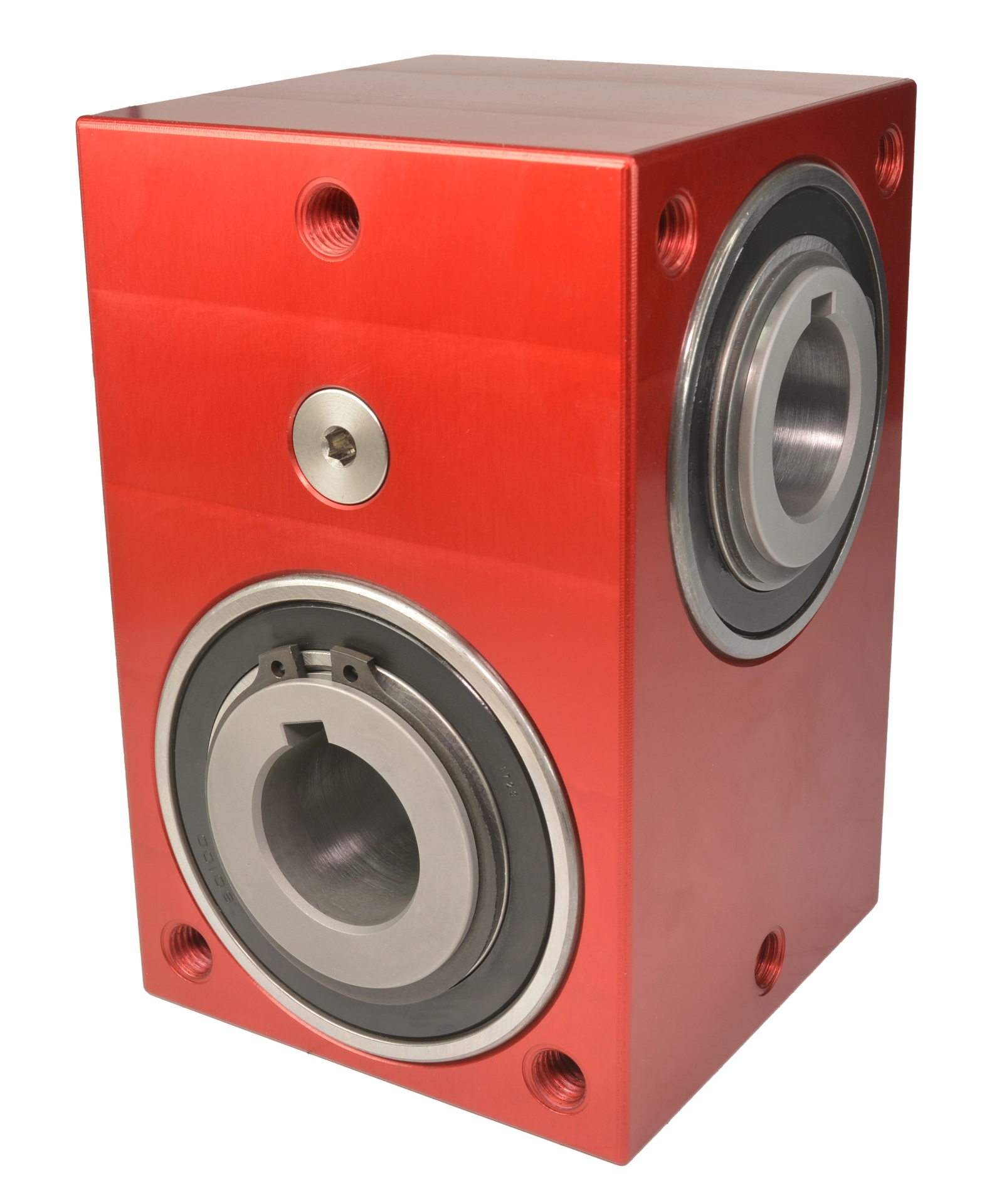

E60-RH 62Nm 60mm-Centres
Crossed Axis Helical Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Helix Direction | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j | Bore Diameter mm Ø H7 |
|---|---|---|---|---|---|---|---|
| E60-1 | 1:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 25 |
| E60-2 | 2:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 25 |
| E60-3 | 3:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 25 |
| E60-4 | 4:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 25 |
| E60-5 | 5:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 25 |
| E60-8 | 8:1 | Right Hand | 60.00 | 60 | 17.80 | ≤0.75° | 25 |
| E60-10 | 10:1 | Right Hand | 60.00 | 60 | 21.30 | ≤0.75° | 25 |
| E60-20 | 20:1 | Right Hand | 60.00 | 60 | 22.00 | ≤0.75° | 25 |
| E60-40 | 40:1 | Right Hand | 60.00 | 60 | 24.00 | ≤0.75° | 25 |
| E60-1-22 | 1:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 22 |
| E60-2-22 | 2:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 22 |
| E60-3-22 | 3:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 22 |
| E60-4-22 | 4:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 22 |
| E60-5-22 | 5:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 22 |
| E60-8-22 | 8:1 | Right Hand | 60.00 | 60 | 17.80 | ≤0.75° | 22 |
| E60-10-22 | 10:1 | Right Hand | 60.00 | 60 | 21.30 | ≤0.75° | 22 |
| E60-20-22 | 20:1 | Right Hand | 60.00 | 60 | 22.00 | ≤0.75° | 22 |
| E60-40-22 | 40:1 | Right Hand | 60.00 | 60 | 24.00 | ≤0.75° | 22 |
| E60-1-24 | 1:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 24 |
| E60-2-24 | 2:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 24 |
| E60-3-24 | 3:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 24 |
| E60-4-24 | 4:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 24 |
| E60-5-24 | 5:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 24 |
| E60-8-24 | 8:1 | Right Hand | 60.00 | 60 | 17.80 | ≤0.75° | 24 |
| E60-10-24 | 10:1 | Right Hand | 60.00 | 60 | 21.30 | ≤0.75° | 24 |
| E60-20-24 | 20:1 | Right Hand | 60.00 | 60 | 22.00 | ≤0.75° | 24 |
| E60-40-24 | 40:1 | Right Hand | 60.00 | 60 | 24.00 | ≤0.75° | 24 |
| E60-1-30 | 1:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 30 |
| E60-2-30 | 2:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 30 |
| E60-3-30 | 3:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 30 |
| E60-4-30 | 4:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 30 |
| E60-5-30 | 5:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.75° | 30 |
| E60-8-30 | 8:1 | Right Hand | 60.00 | 60 | 17.80 | ≤0.75° | 30 |
| E60-10-30 | 10:1 | Right Hand | 60.00 | 60 | 21.30 | ≤0.75° | 30 |
| E60-20-30 | 20:1 | Right Hand | 60.00 | 60 | 22.00 | ≤0.75° | 30 |
| E60-40-30 | 40:1 | Right Hand | 60.00 | 60 | 24.00 | ≤0.75° | 30 |
| E60-1A | 1:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 25 |
| E60-2A | 2:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 25 |
| E60-3A | 3:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 25 |
| E60-4A | 4:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 25 |
| E60-5A | 5:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 25 |
| E60-8A | 8:1 | Right Hand | 60.00 | 60 | 17.80 | ≤0.5° | 25 |
| E60-10A | 10:1 | Right Hand | 60.00 | 60 | 21.30 | ≤0.5° | 25 |
| E60-20A | 20:1 | Right Hand | 60.00 | 60 | 22.00 | ≤0.5° | 25 |
| E60-40A | 40:1 | Right Hand | 60.00 | 60 | 24.00 | ≤0.5° | 25 |
| E60-1A-22 | 1:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 22 |
| E60-2A-22 | 2:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 22 |
| E60-3A-22 | 3:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 22 |
| E60-4A-22 | 4:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 22 |
| E60-5A-22 | 5:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 22 |
| E60-8A-22 | 8:1 | Right Hand | 60.00 | 60 | 17.80 | ≤0.5° | 22 |
| E60-10A-22 | 10:1 | Right Hand | 60.00 | 60 | 21.30 | ≤0.5° | 22 |
| E60-20A-22 | 20:1 | Right Hand | 60.00 | 60 | 22.00 | ≤0.5° | 22 |
| E60-40A-22 | 40:1 | Right Hand | 60.00 | 60 | 24.00 | ≤0.5° | 22 |
| E60-1A-24 | 1:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 24 |
| E60-2A-24 | 2:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 24 |
| E60-3A-24 | 3:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 24 |
| E60-4A-24 | 4:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 24 |
| E60-5A-24 | 5:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 24 |
| E60-8A-24 | 8:1 | Right Hand | 60.00 | 60 | 17.80 | ≤0.5° | 24 |
| E60-10A-24 | 10:1 | Right Hand | 60.00 | 60 | 21.30 | ≤0.5° | 24 |
| E60-20A-24 | 20:1 | Right Hand | 60.00 | 60 | 22.00 | ≤0.5° | 24 |
| E60-40A-24 | 40:1 | Right Hand | 60.00 | 60 | 24.00 | ≤0.5° | 24 |
| E60-1A-30 | 1:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 30 |
| E60-2A-30 | 2:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 30 |
| E60-3A-30 | 3:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 30 |
| E60-4A-30 | 4:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 30 |
| E60-5A-30 | 5:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.5° | 30 |
| E60-8A-30 | 8:1 | Right Hand | 60.00 | 60 | 17.80 | ≤0.5° | 30 |
| E60-10A-30 | 10:1 | Right Hand | 60.00 | 60 | 21.30 | ≤0.5° | 30 |
| E60-20A-30 | 20:1 | Right Hand | 60.00 | 60 | 22.00 | ≤0.5° | 30 |
| E60-40A-30 | 40:1 | Right Hand | 60.00 | 60 | 24.00 | ≤0.5° | 30 |
| E60-1AR | 1:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 25 |
| E60-1AR-22 | 1:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 22 |
| E60-1AR-24 | 1:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 24 |
| E60-1AR-30 | 1:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 30 |
| E60-2AR | 2:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 25 |
| E60-2AR-22 | 2:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 22 |
| E60-2AR-24 | 2:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 24 |
| E60-2AR-30 | 2:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 30 |
| E60-4AR | 4:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 25 |
| E60-4AR-22 | 4:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 22 |
| E60-4AR-24 | 4:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 24 |
| E60-4AR-30 | 4:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 30 |
| E60-5AR | 5:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 25 |
| E60-5AR-22 | 5:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 22 |
| E60-5AR-24 | 5:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 24 |
| E60-5AR-30 | 5:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 30 |
| E60-8AR | 8:1 | Right Hand | 60.00 | 60 | 17.80 | ≤0.16° | 25 |
| E60-8AR-22 | 8:1 | Right Hand | 60.00 | 60 | 17.80 | ≤0.16° | 22 |
| E60-8AR-24 | 8:1 | Right Hand | 60.00 | 60 | 17.80 | ≤0.16° | 24 |
| E60-8AR-30 | 8:1 | Right Hand | 60.00 | 60 | 17.80 | ≤0.16° | 30 |
| E60-10AR | 10:1 | Right Hand | 60.00 | 60 | 21.30 | ≤0.16° | 25 |
| E60-10AR-22 | 10:1 | Right Hand | 60.00 | 60 | 21.30 | ≤0.16° | 22 |
| E60-10AR-24 | 10:1 | Right Hand | 60.00 | 60 | 21.30 | ≤0.16° | 24 |
| E60-10AR-30 | 10:1 | Right Hand | 60.00 | 60 | 21.30 | ≤0.16° | 30 |
| E60-20AR | 20:1 | Right Hand | 60.00 | 60 | 22.00 | ≤0.16° | 25 |
| E60-20AR-22 | 20:1 | Right Hand | 60.00 | 60 | 22.00 | ≤0.16° | 22 |
| E60-20AR-24 | 20:1 | Right Hand | 60.00 | 60 | 22.00 | ≤0.16° | 24 |
| E60-20AR-30 | 20:1 | Right Hand | 60.00 | 60 | 22.00 | ≤0.16° | 30 |
| E60-40AR | 40:1 | Right Hand | 60.00 | 60 | 24.00 | ≤0.16° | 25 |
| E60-40AR-22 | 40:1 | Right Hand | 60.00 | 60 | 24.00 | ≤0.16° | 22 |
| E60-40AR-24 | 40:1 | Right Hand | 60.00 | 60 | 24.00 | ≤0.16° | 24 |
| E60-40AR-30 | 40:1 | Right Hand | 60.00 | 60 | 24.00 | ≤0.16° | 30 |
| E60-3AR | 3:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 25 |
| E60-3AR-22 | 3:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 22 |
| E60-3AR-24 | 3:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | 24 |
| E60-3AR-30 | 3:1 | Right Hand | 60.00 | 24 | 8.00 | ≤0.16° | N/A |
