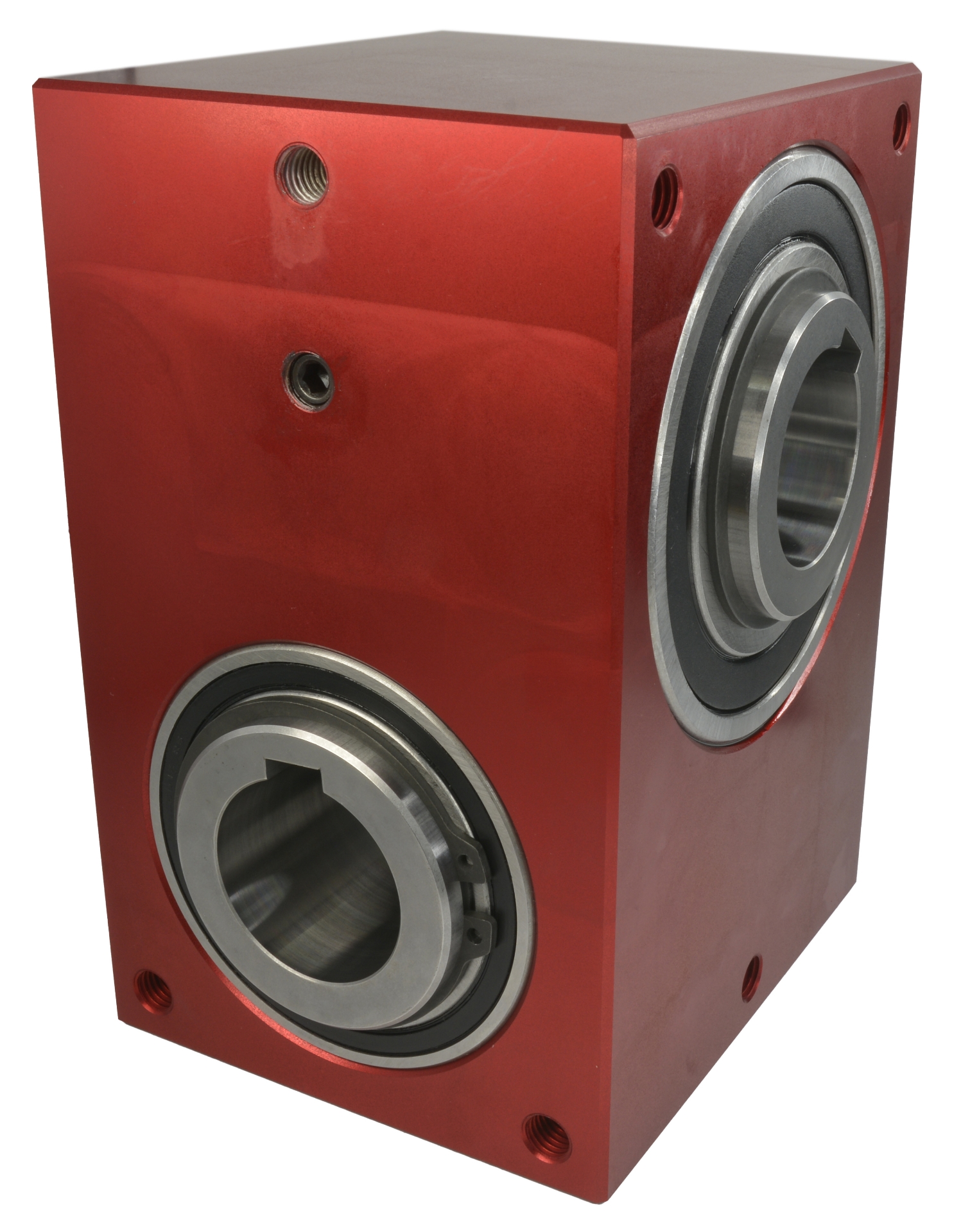

E70-LH 66Nm 70mm-Centres
Crossed Axis Helical Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Helix Direction | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|---|
| E70-1-LH | 1:1 | Left Hand | 70.00 | 66 | 10.33 | ≤0.75° |
| E70-1A-LH | 1:1 | Left Hand | 70.00 | 66 | 10.33 | ≤0.5° |
| E70-1AR-LH | 1:1 | Left Hand | 70.00 | 66 | 10.33 | ≤0.16° |
| E70-2-LH | 2:1 | Left Hand | 70.00 | 66 | 10.62 | ≤0.75° |
| E70-2A-LH | 2:1 | Left Hand | 70.00 | 66 | 10.62 | ≤0.5° |
| E70-2AR-LH | 2:1 | Left Hand | 70.00 | 66 | 10.62 | ≤0.16° |
| E70-3-LH | 3:1 | Left Hand | 70.00 | 66 | 7.22 | ≤0.75° |
| E70-3A-LH | 3:1 | Left Hand | 70.00 | 66 | 7.22 | ≤0.5° |
| E70-3AR-LH | 3:1 | Left Hand | 70.00 | 66 | 7.22 | ≤0.16° |
