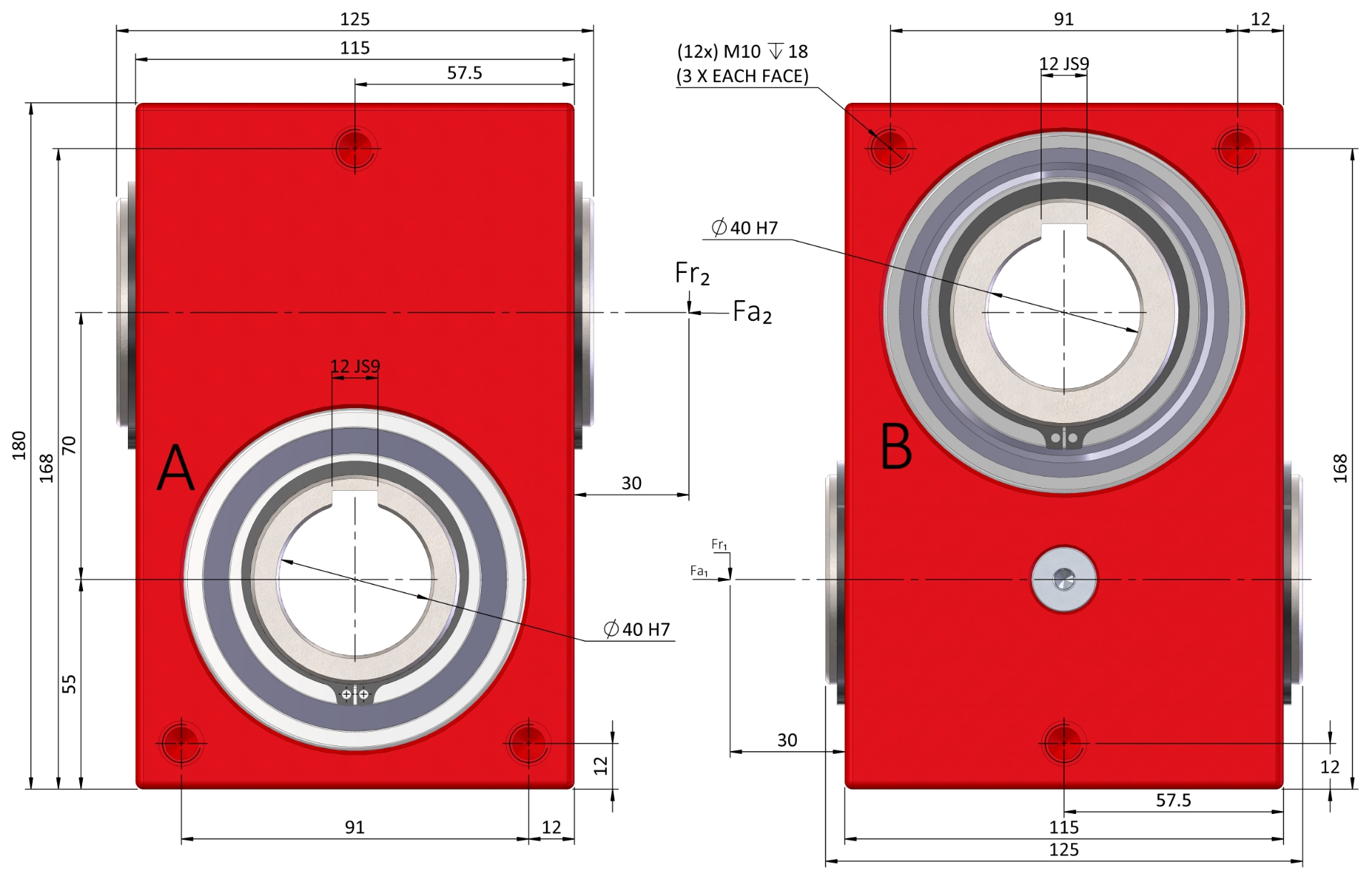

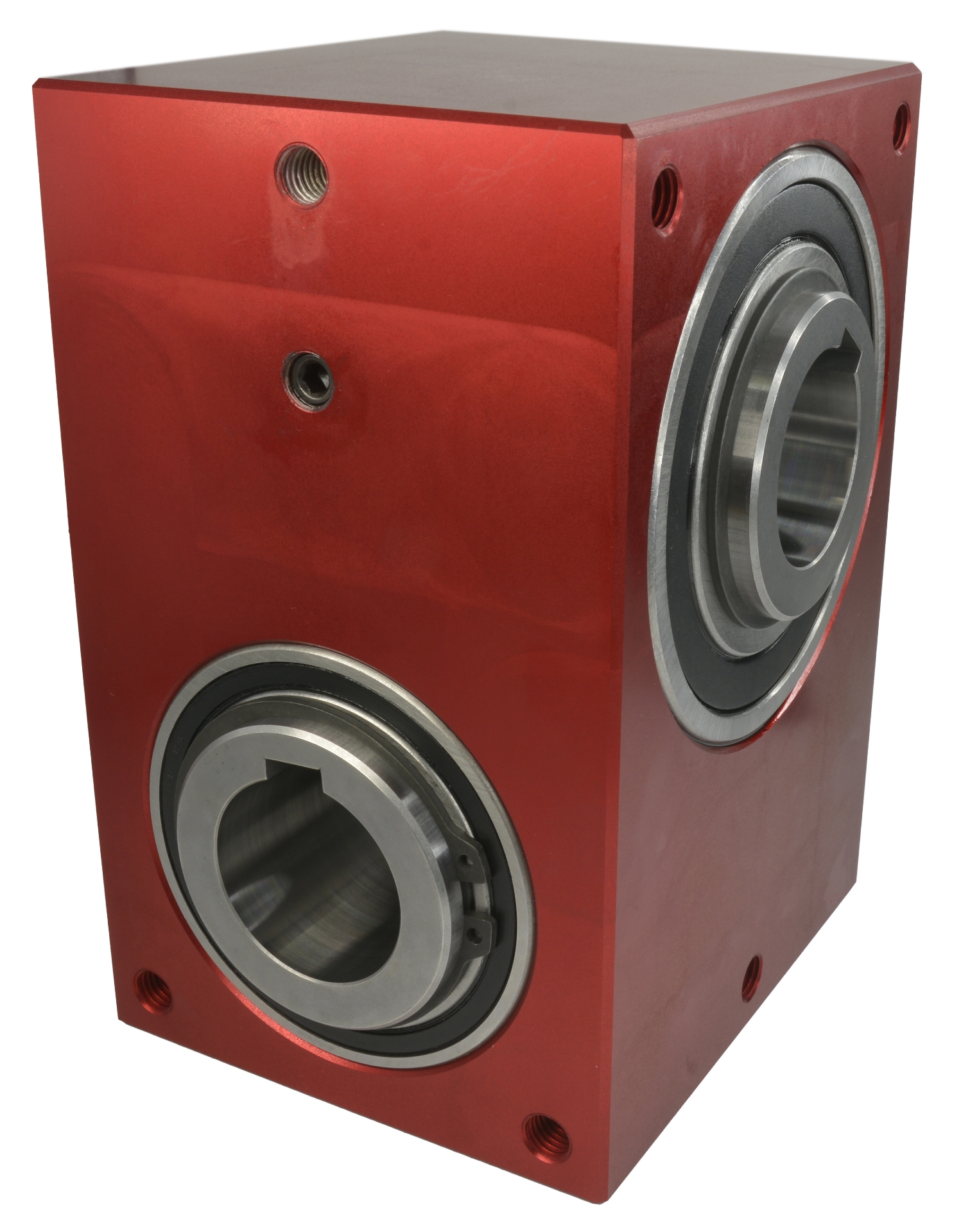

E70-RH 66Nm 70mm-Centres
Crossed Axis Helical Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Helix Direction | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|---|
| E70-1 | 1:1 | Right Hand | 70.00 | 66 | 10.33 | ≤0.75° |
| E70-2 | 2:1 | Right Hand | 70.00 | 66 | 10.62 | ≤0.75° |
| E70-3 | 3:1 | Right Hand | 70.00 | 66 | 7.22 | ≤0.75° |
| E70-1A | 1:1 | Right Hand | 70.00 | 66 | 10.33 | ≤0.5° |
| E70-2A | 2:1 | Right Hand | 70.00 | 66 | 10.62 | ≤0.5° |
| E70-3A | 3:1 | Right Hand | 70.00 | 66 | 7.22 | ≤0.5° |
| E70-1AR | 1:1 | Right Hand | 70.00 | 66 | 10.33 | ≤0.16° |
| E70-2AR | 2:1 | Right Hand | 70.00 | 66 | 10.62 | ≤0.16° |
| E70-3AR | 3:1 | Right Hand | 70.00 | 66 | 7.22 | ≤0.16° |
