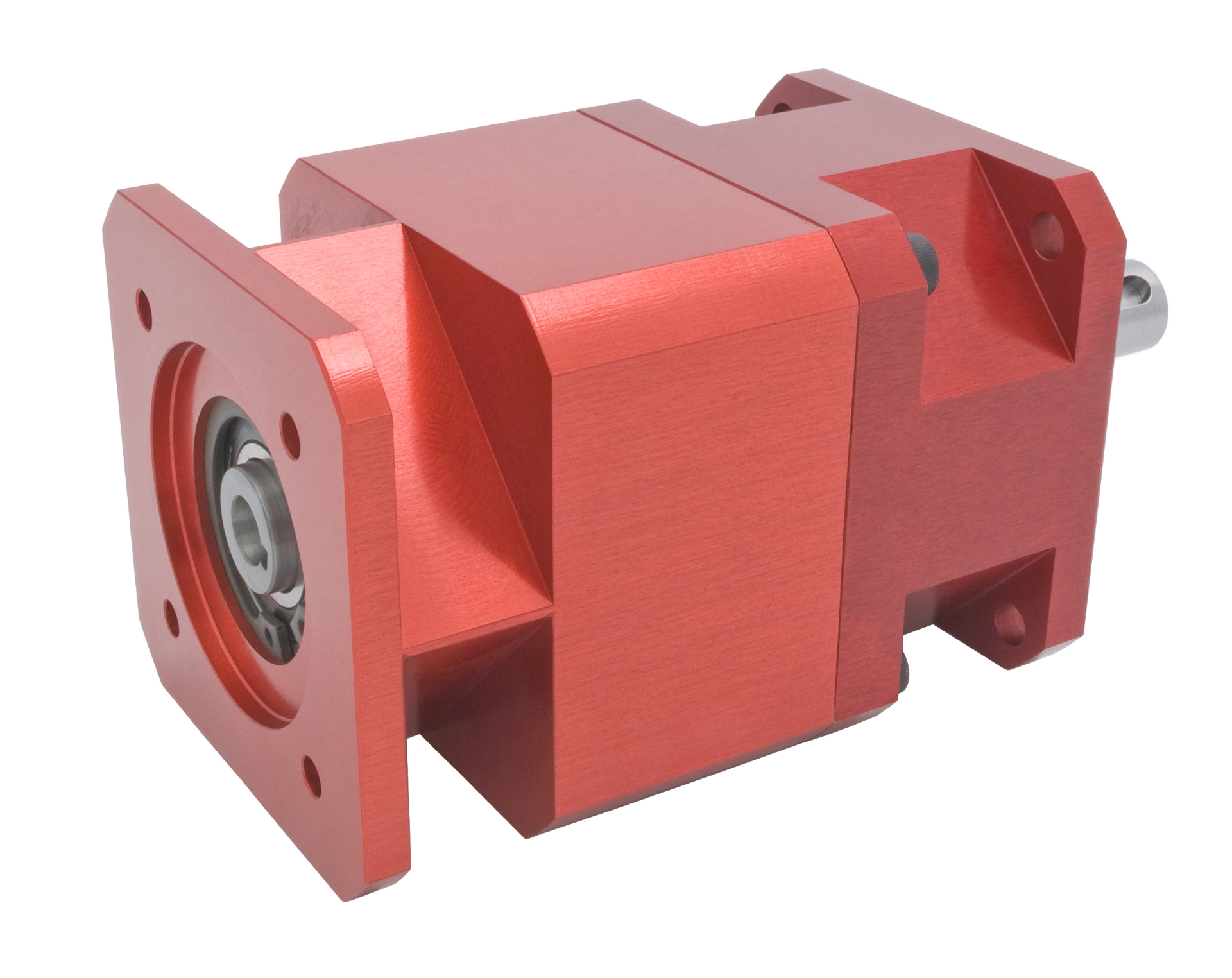

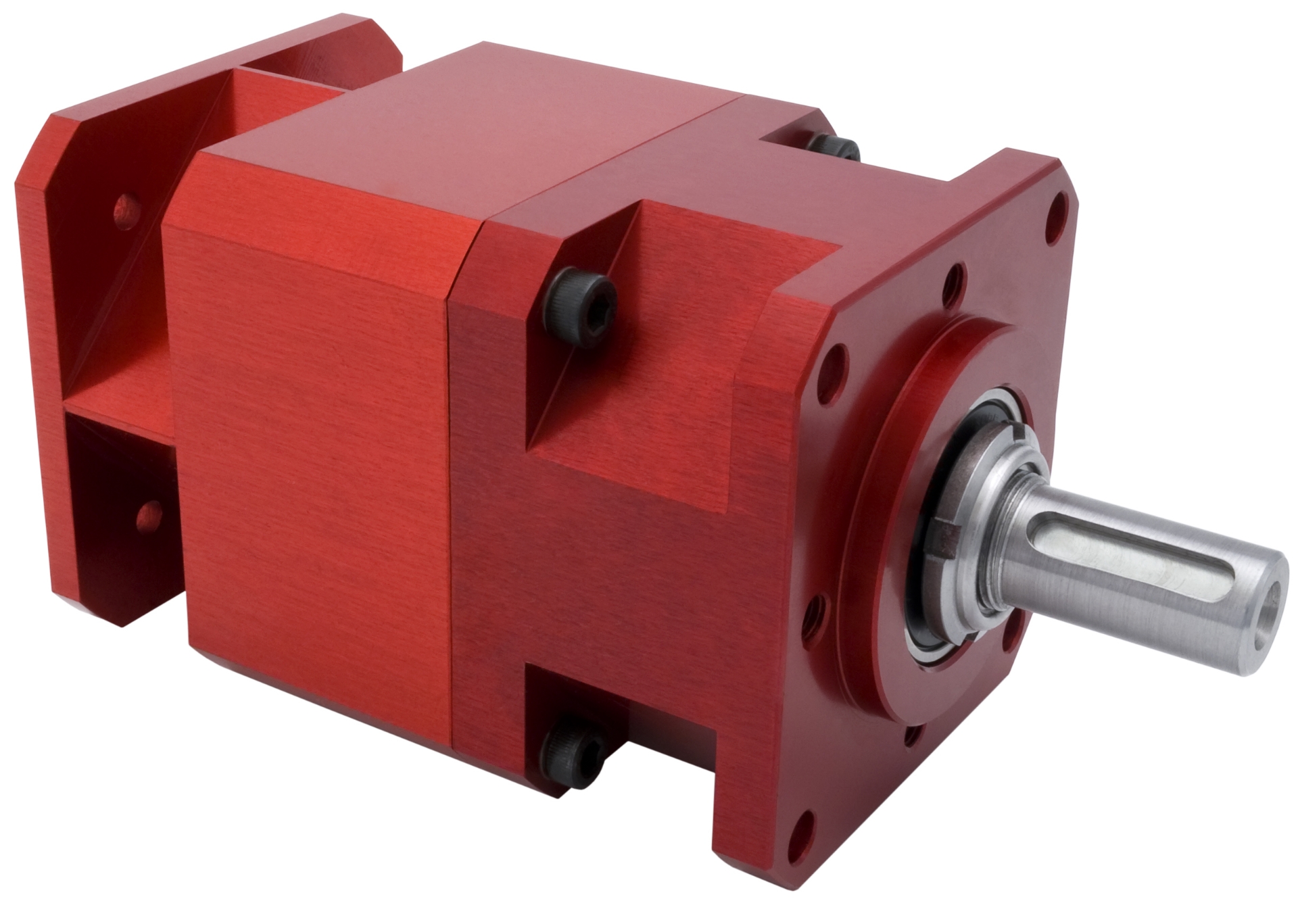

EHD08 50Nm-9:1-36:1 Ø15-Output-Shaft

Sku (Part No.)	Gear Ratio [i=]	Nom Output Torque T₂n [Nm]	Output Backlash j
EHD08-9	9:1	43	≤0.5°
EHD08-12	12:1	43	≤0.5°
EHD08-15	15:1	43	≤0.5°
EHD08-16	16:1	45	≤0.5°
EHD08-18	18:1	46	≤0.5°
EHD08-20	20:1	46	≤0.5°
EHD08-24	24:1	46	≤0.5°
EHD08-25	25:1	46	≤0.5°
EHD08-30	30:1	46	≤0.5°
EHD08-36	36:1	41	≤0.5°

;
