    Epicyclic Gearboxes

    Inline planetary epicyclic servo gearboxes and reducers. Ondrives designed and manufactured in the UK.
    Ondrives inline servo gearboxes are also availble as modified versions or complete new designs made to customers specifications.

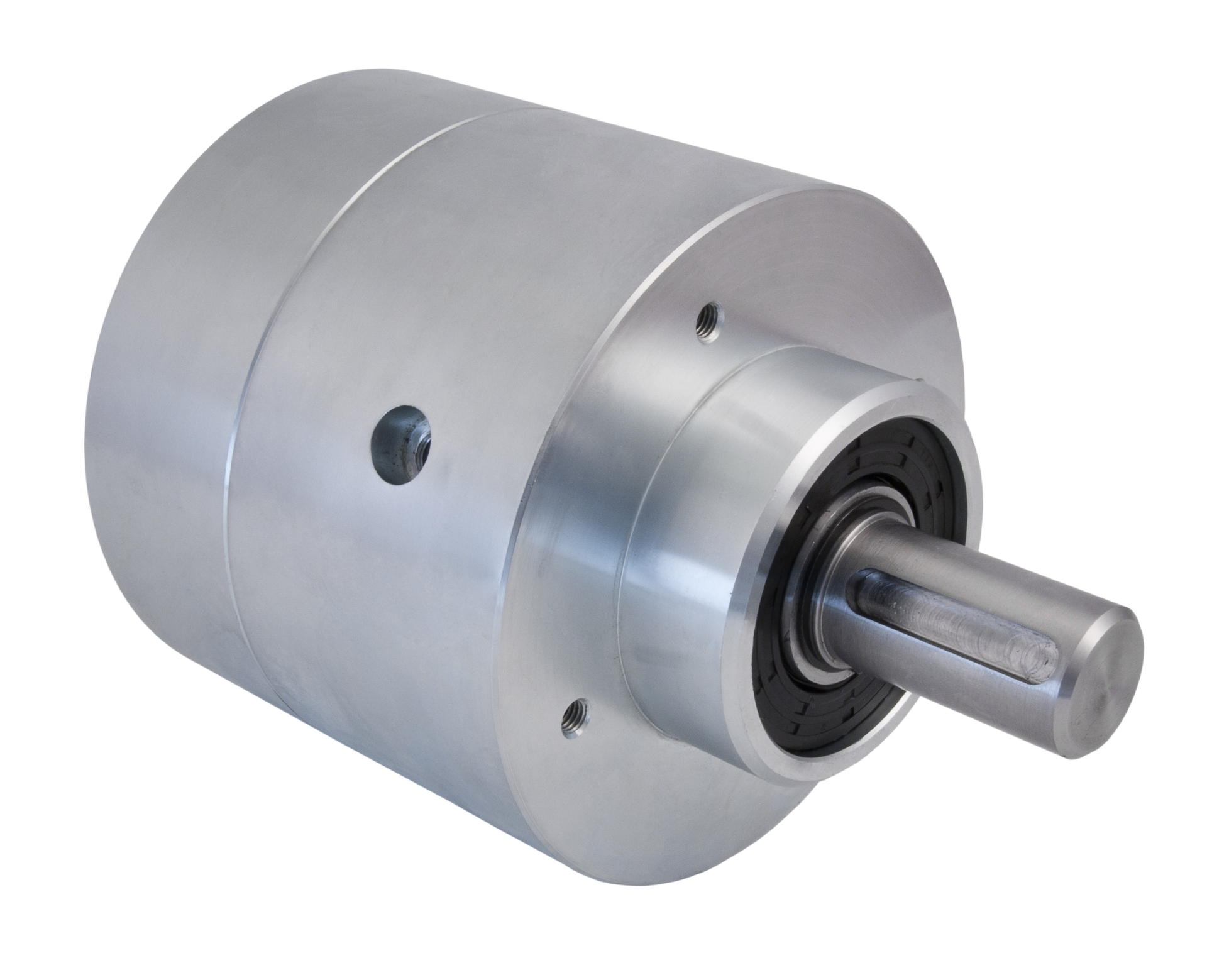

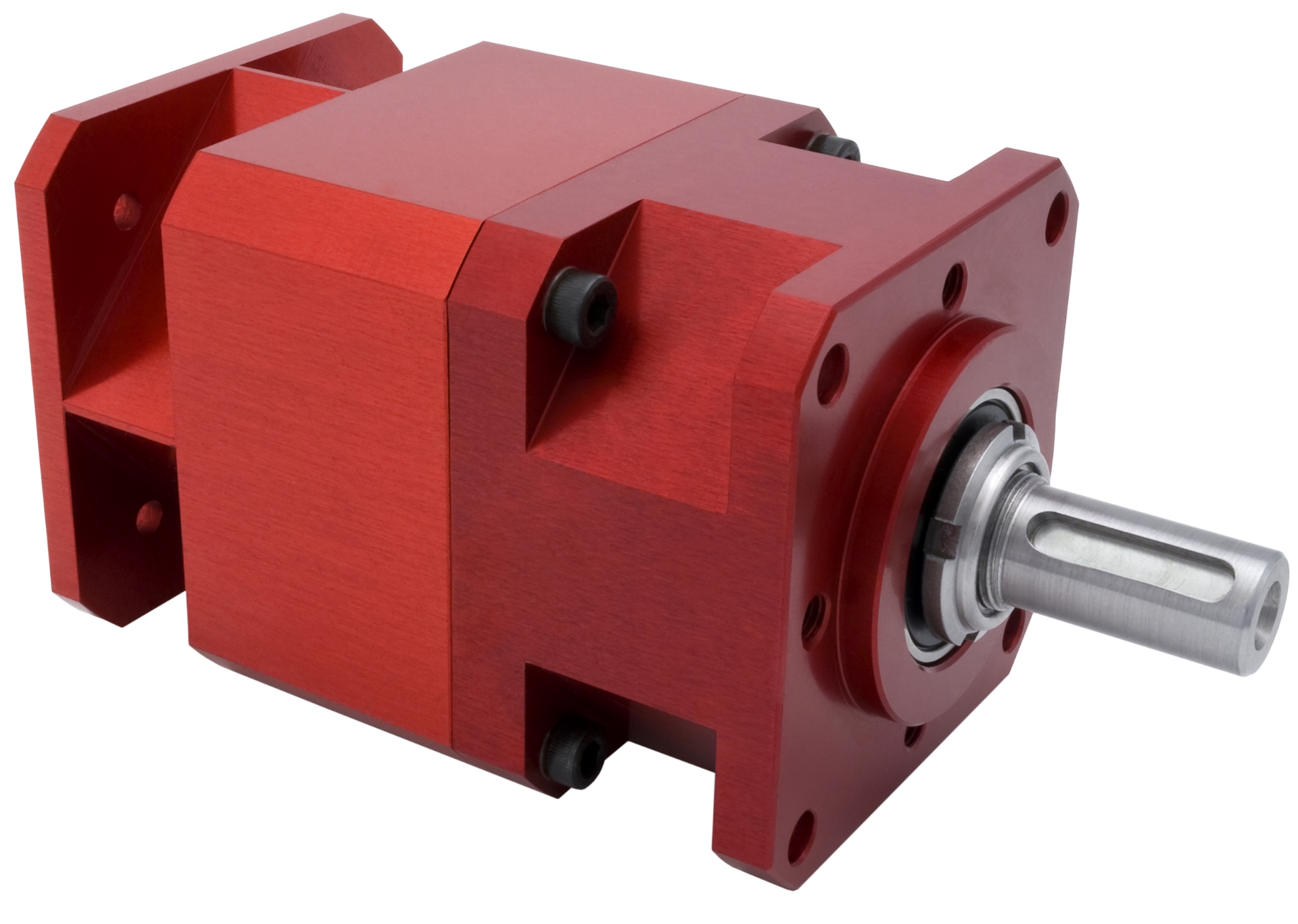

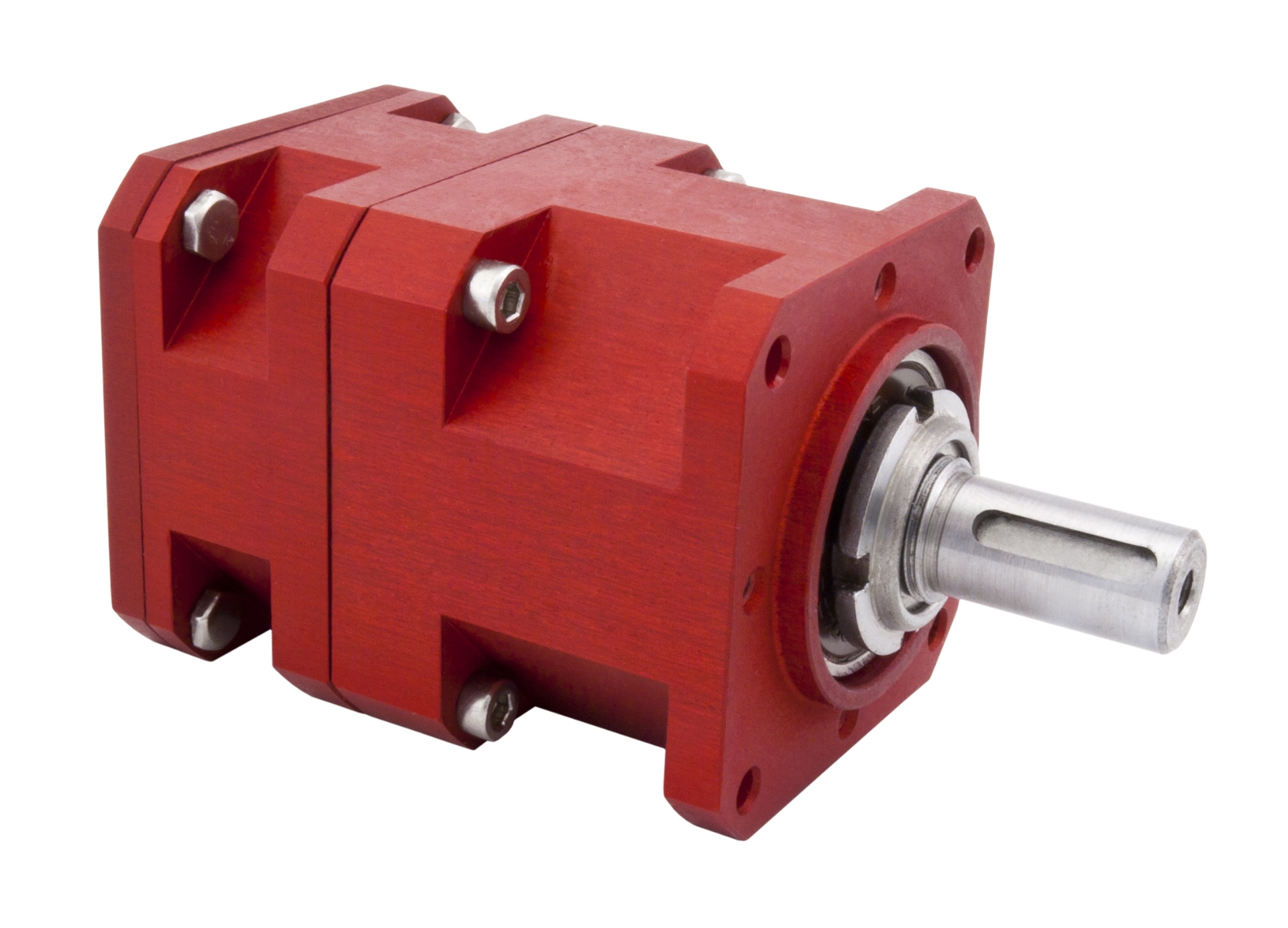

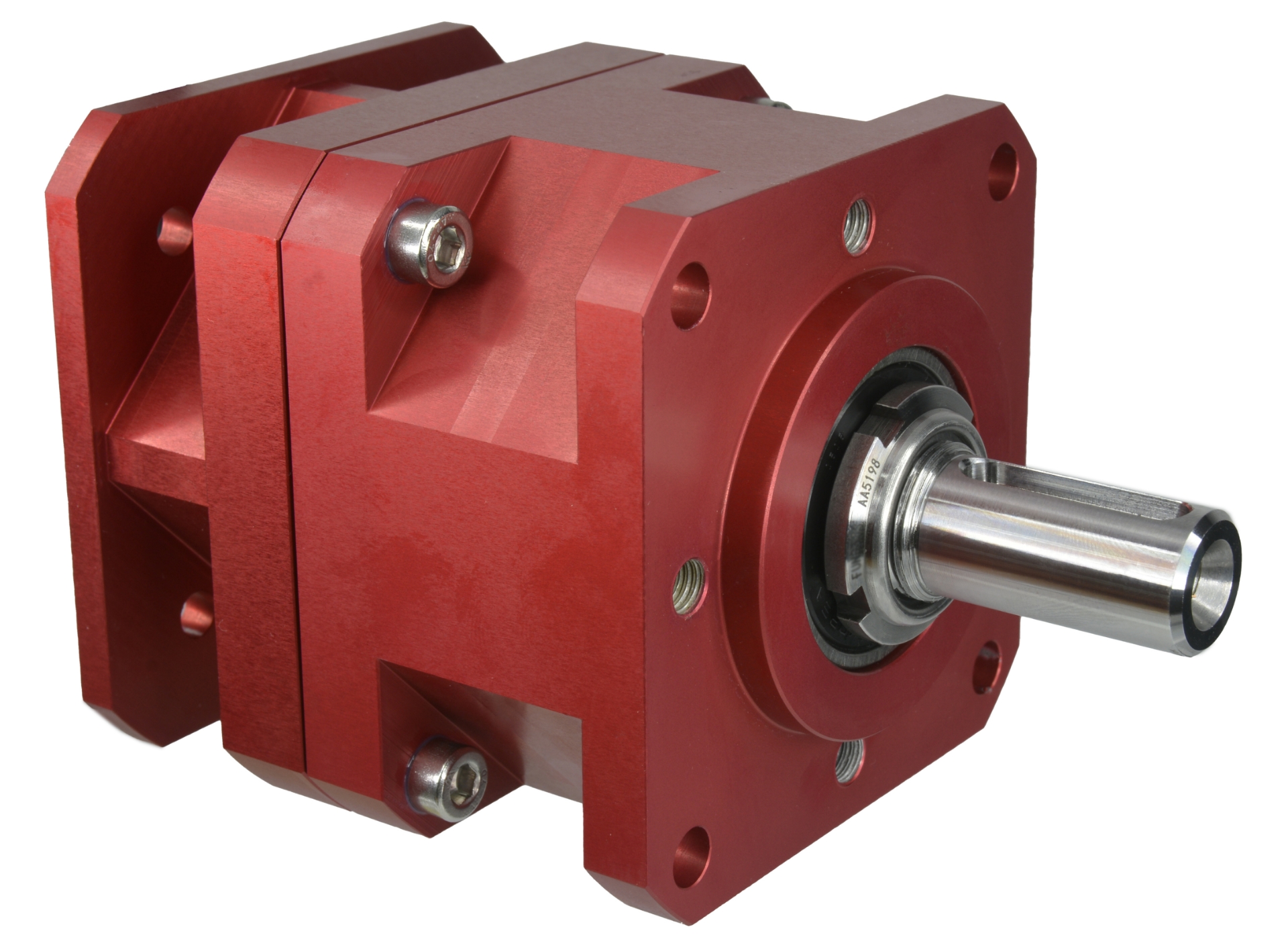

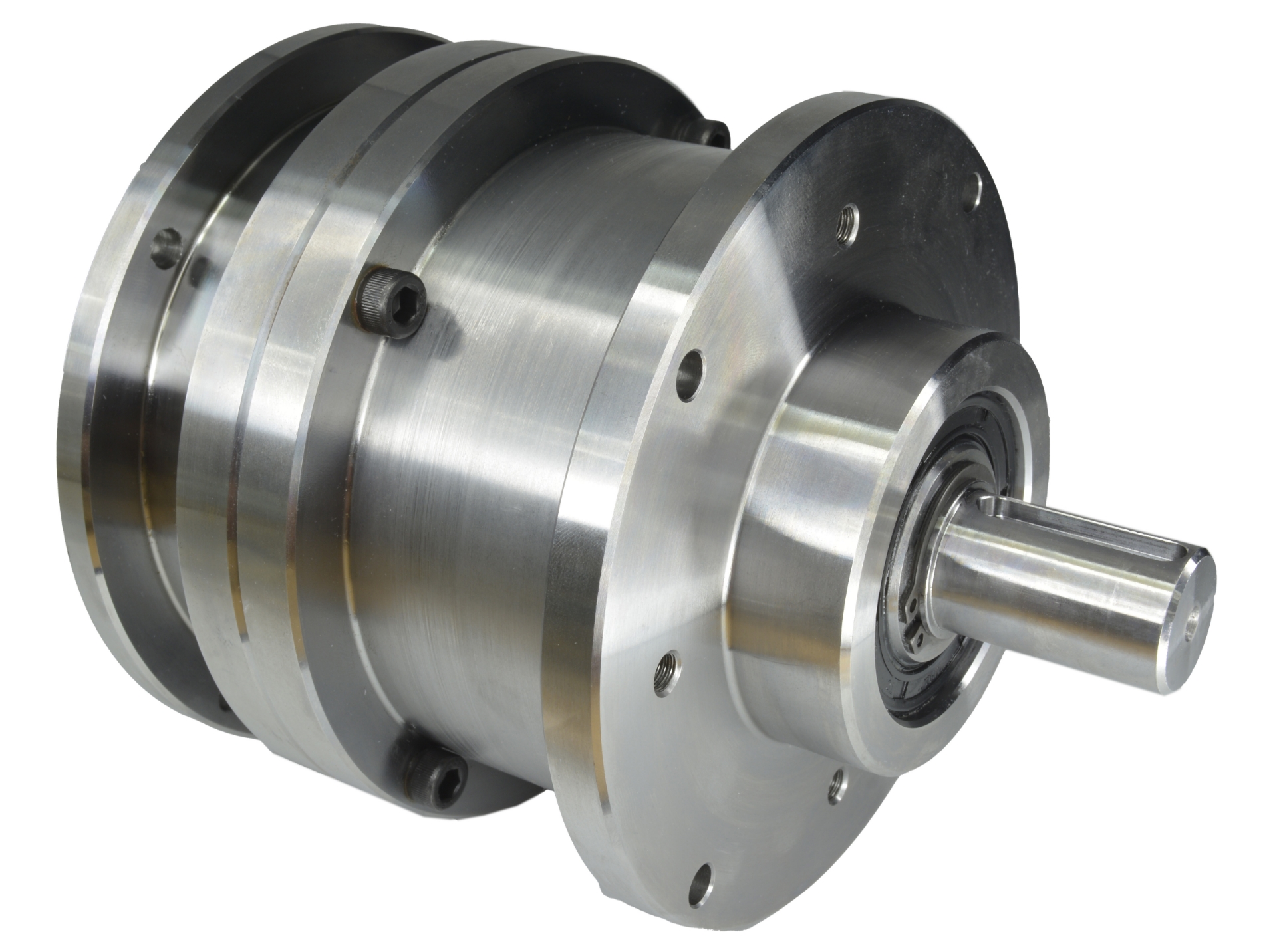

    Using planets and sun gears in an internal gear we are able to offer a high range of ratios with high torque capacity, using hardened steel planets and sun gears. Ratios as little as 3:1 to 36:1 and upto 380Nm of toruqe high strenght and a good range of power Kw.
    These reducers are used in a wide varaity of industries where space saving is needed with our slim fit designs as well special designs for those applications where needed.
    Types of industries - aerospace, robotics, semiconductor, medical,  OEM's (Original Equipment Manufacturers).
    See more on our gear reducers and gearboxes at:

    Ondrives Gearboxes Gear Reducer Info Page

    View as Grid List
    Sort by
    Display per page
    Ondrives Precision Gears and Gearboxes Part number  EHD04-3

    EHD04-3

    EHD04-3
    £413.68
    Inline epicyclic servo reducer, 5mm input bore, 10mm output shaft, 3.6Nm-7.0Nm output torque, ratio 3:1
    Ondrives Precision Gears and Gearboxes Part number  EHD04-3A

    EHD04-3A

    EHD04-3A
    £497.95
    Inline epicyclic servo reducer, 5mm input bore, 10mm output shaft, 3.6Nm-7.0Nm output torque, ratio 3:1
    Ondrives Precision Gears and Gearboxes Part number  EHD04-3AR

    EHD04-3AR

    EHD04-3AR
    £572.64
    Inline epicyclic servo reducer, 5mm input bore, 10mm output shaft, 3.6Nm-7.0Nm output torque, ratio 3:1
    Ondrives Precision Gears and Gearboxes Part number  EHD04-4A

    EHD04-4A

    EHD04-4A
    £497.95
    Inline epicyclic servo reducer, 5mm input bore, 10mm output shaft, 3.6Nm-7.0Nm output torque, ratio 4:1
    Ondrives Precision Gears and Gearboxes Part number  EHD04-4AR

    EHD04-4AR

    EHD04-4AR
    £572.64
    Inline epicyclic servo reducer, 5mm input bore, 10mm output shaft, 3.6Nm-7.0Nm output torque, ratio 4:1
    Ondrives Precision Gears and Gearboxes Part number  EHD04-4

    EHD04-4

    EHD04-4
    £413.68
    Inline epicyclic servo reducer, 5mm input bore, 10mm output shaft, 3.6Nm-7.0Nm output torque, ratio 4:1
