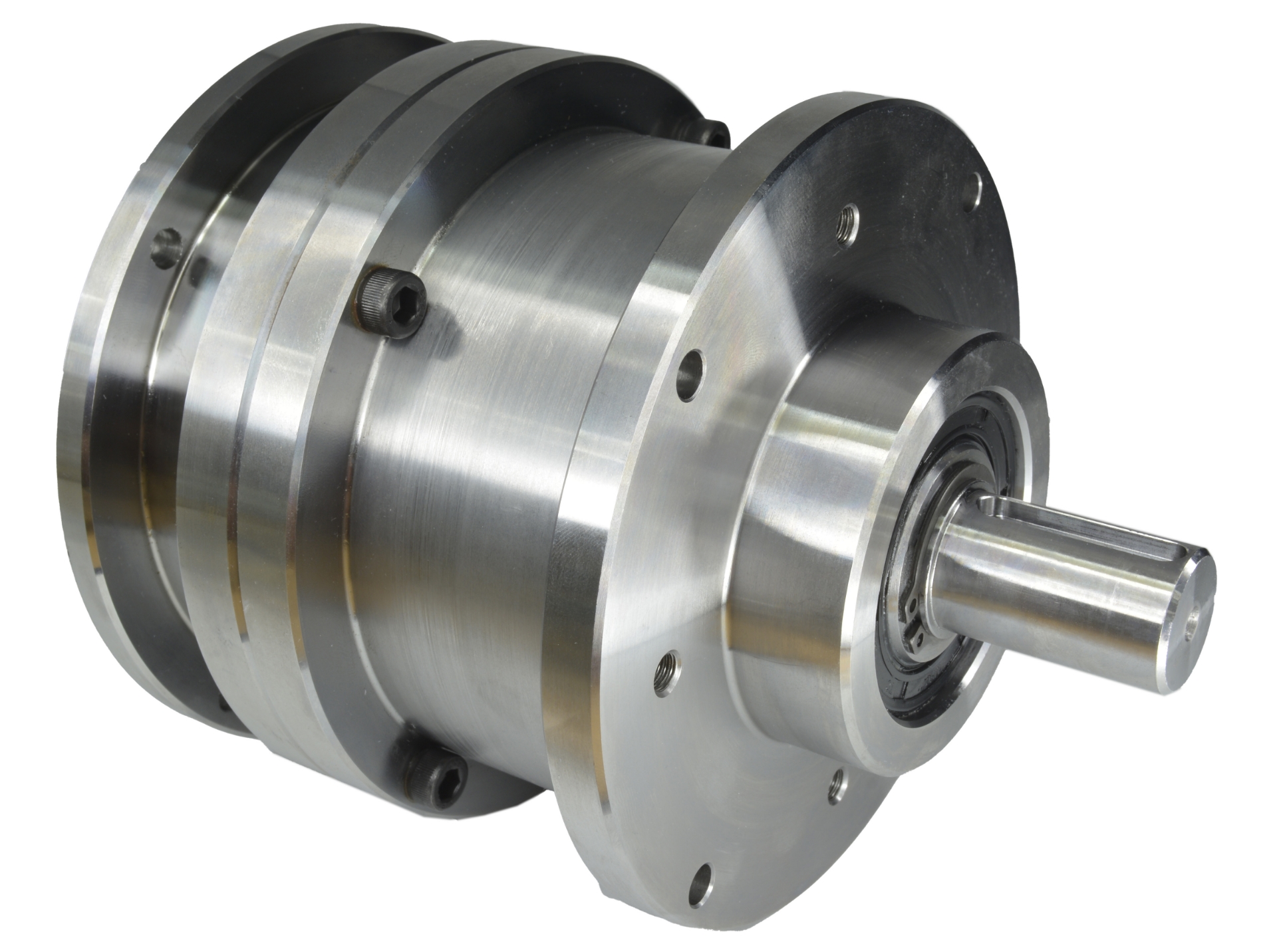

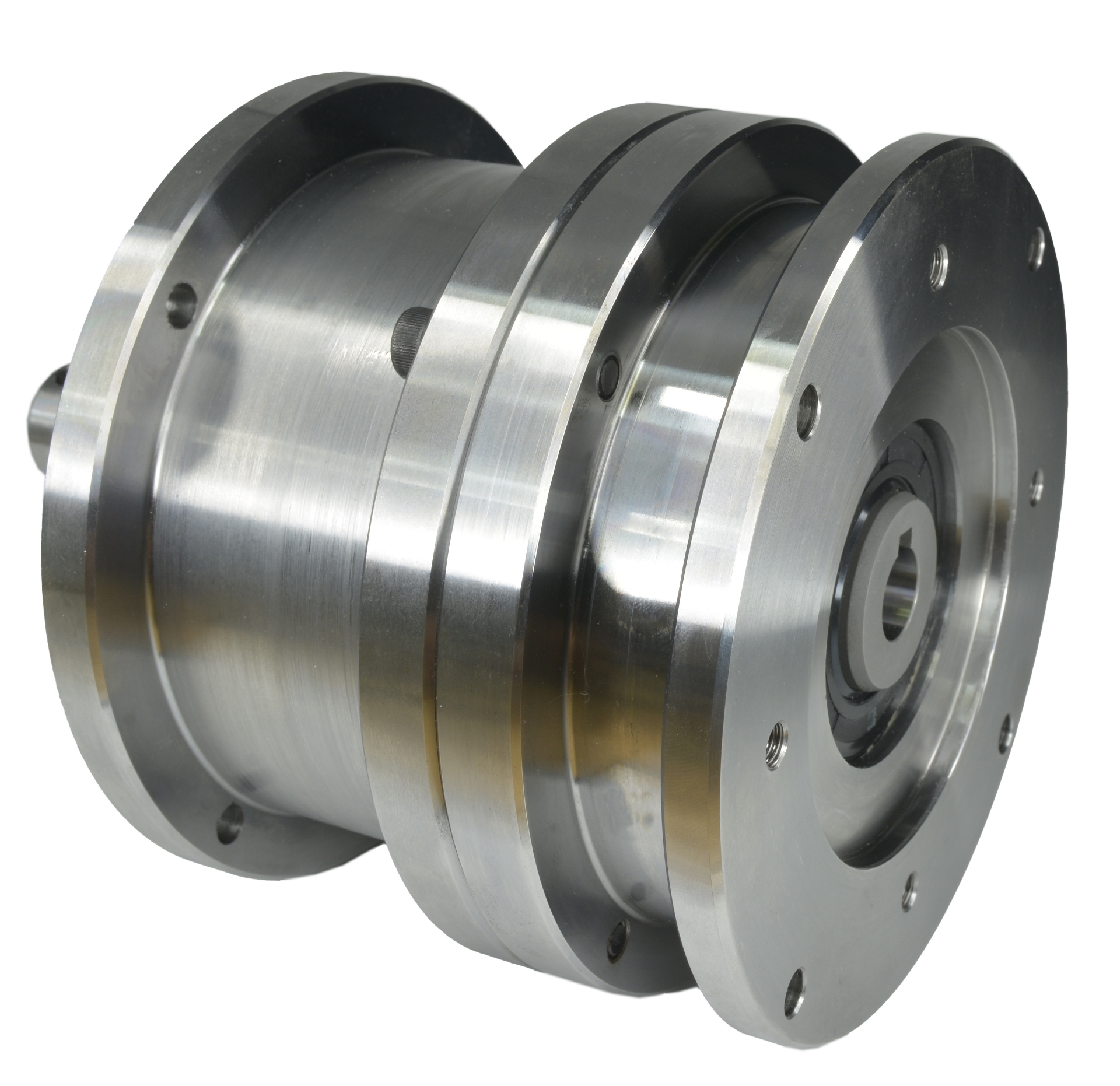

EHD12 140Nm-3:1-6:1 Ø22-Output-Shaft
| Sku (Part No.) | Gear Ratio [i=] | Nom Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|
| EHD12-3 | 3:1 | 110 | ≤0.25° |
| EHD12-4 | 4:1 | 110 | ≤0.25° |
| EHD12-5 | 5:1 | 110 | ≤0.25° |
| EHD12-6 | 6:1 | 90 | ≤0.25° |
| EHD12-3A | 3:1 | 110 | ≤0.13° |
| EHD12-4A | 4:1 | 110 | ≤0.13° |
| EHD12-5A | 5:1 | 110 | ≤0.13° |
| EHD12-5AR | 5:1 | 110 | ≤0.06° |
| EHD12-4AR | 4:1 | 110 | ≤0.06° |
| EHD12-3AR | 3:1 | 110 | ≤0.06° |
| EHD12-6A | 6:1 | 90 | ≤0.13° |
| EHD12-6AR | 6:1 | 90 | ≤0.06° |
