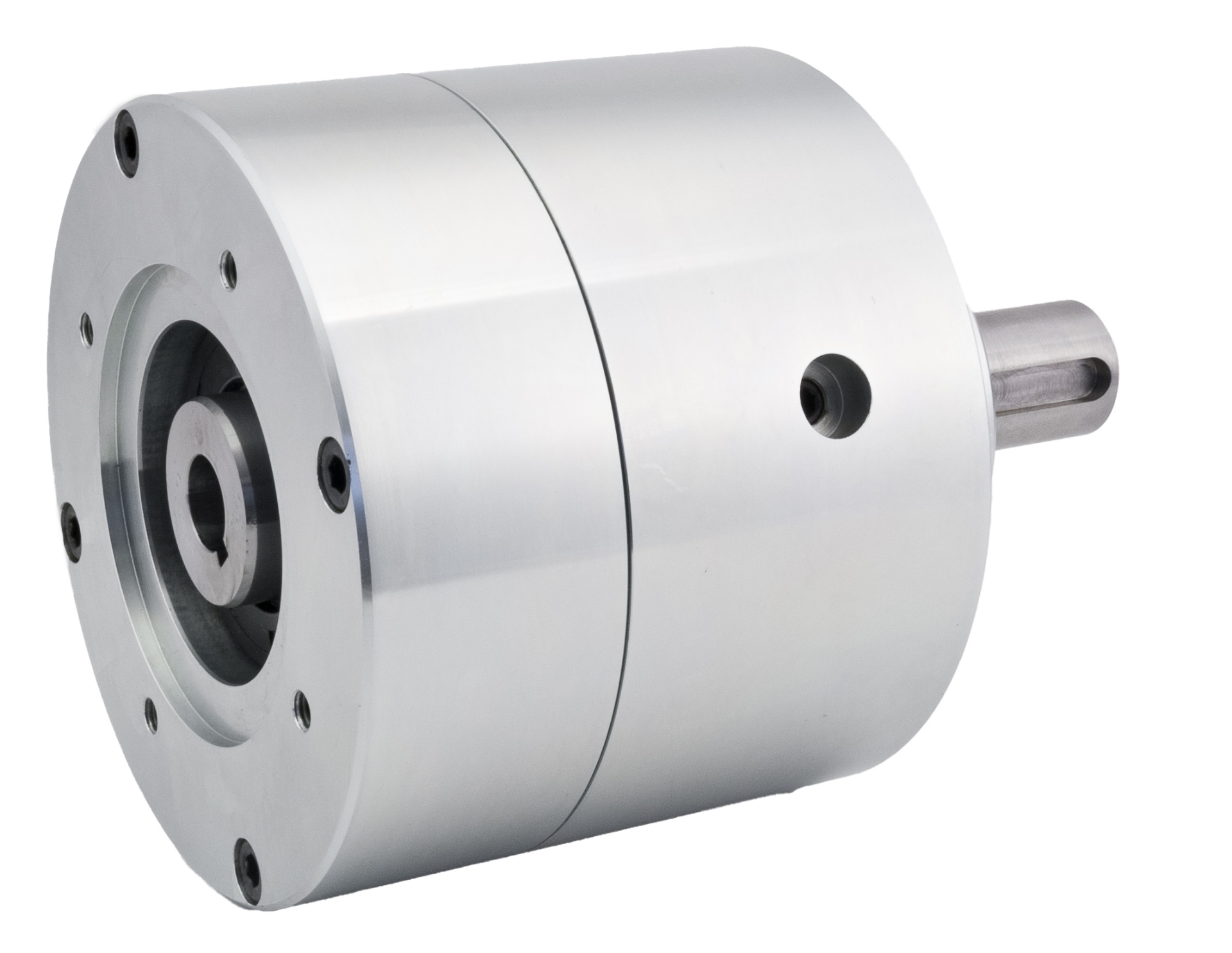

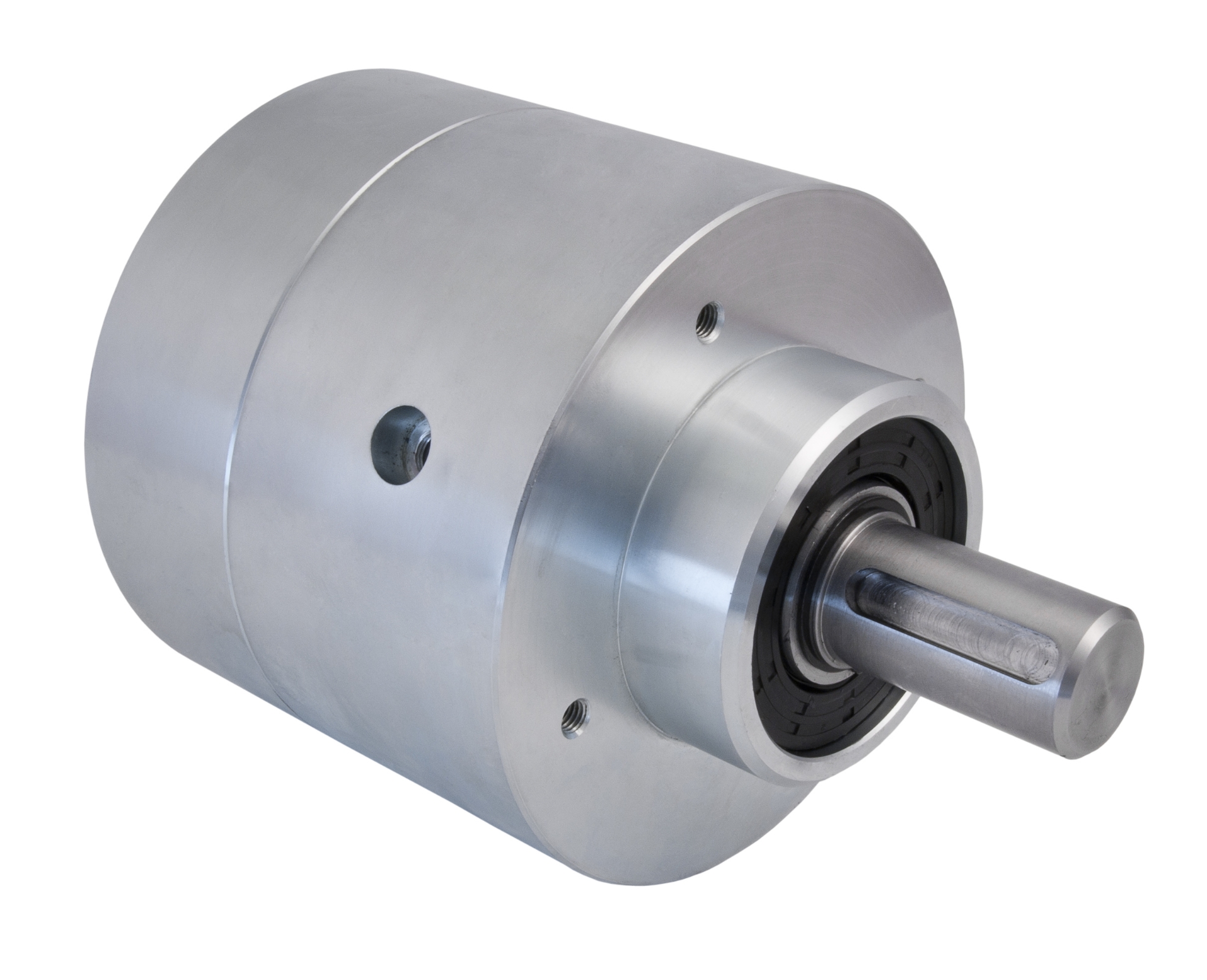

EHD16 380Nm-3:1-6:1 Ø32-Output-Shaft
| Sku (Part No.) | Gear Ratio [i=] | Nom Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|
| EHD16-3 | 3:1 | 300 | ≤0.25° |
| EHD16-4 | 4:1 | 300 | ≤0.25° |
| EHD16-5 | 5:1 | 300 | ≤0.25° |
| EHD16-6 | 6:1 | 250 | ≤0.25° |
| EHD16-3A | 3:1 | 300 | ≤0.13° |
| EHD16-4A | 4:1 | 300 | ≤0.13° |
| EHD16-5A | 5:1 | 300 | ≤0.13° |
| EHD16-5AR | 5:1 | 300 | ≤0.06° |
| EHD16-4AR | 4:1 | 300 | ≤0.06° |
| EHD16-3AR | 3:1 | 300 | ≤0.06° |
| EHD16-6A | 6:1 | 250 | ≤0.13° |
| EHD16-6AR | 6:1 | 250 | ≤0.06° |
