EHD04-5A

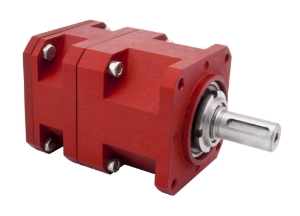

Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes

EHD04-5A

Inline epicyclic servo reducer, 5mm input bore, 10mm output shaft, 3.4Nm-6.5Nm output torque, ratio 5:1
Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for servo gearbox made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for servo gearbox made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]5:1
Nom Output Torque T₂n [Nm]4.5
Output Backlash j≤0.13°
Efficiency n1 1000 r/min [ηz]90%
Output Rotation DirectionSame as Input
Mass [kg]0.44
Max. Output Radial Load Fr2 N200
Max. Output Axial Load Fa2 N150
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Gear Ratio [i=]5:1
Nom Output Torque T₂n [Nm]4.5
Output Backlash j≤0.13°
Efficiency n1 1000 r/min [ηz]90%
Output Rotation DirectionSame as Input
Mass [kg]0.44
Max. Output Radial Load Fr2 N200
Max. Output Axial Load Fa2 N150
Lubrication GreaseShell Gadus S5 V42P 2.5
