CFF.00.06ss

CFF.00.06ss

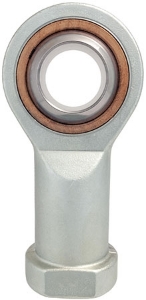

Heavy Duty Female Stainless Steel Rod End with Self-Lubricating Bronze Insert. Right Hand Thread. 6mm Bore.

Product specifications

Diameter [d] H76
Dimension [B]9 +0/-0.12
Dimension [C]6.75
Dimension [dk]12.7
Diameter [d1]8.9
Dimension [d2]20
Thread [d3]M6 x 1
Diameter [d4]10
Diameter [d5]13
Dimension [h]30
Dimension [L1]12
Dimension [b]40
Dimension [L3]11
Dimension [L4]5
Dimension [W]11
Max. Tilt Angle13°
Static Load Rating [N]3000
Mass (g)25
