SFE10.45

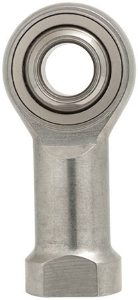

Ondrives Precision Gears and Gearboxes Part number SFE10.45

SFE10.45

Standard Duty Female Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 10mm Bore.
Ondrives Precision Gears and Gearboxes Part number SFE10.45 Ondrives Precision Gears and Gearboxes Part number SFE10.45

Product specifications

Diameter [d] H710
Dimension [B]14 +0/-0.05
Dimension [C]10.5 ±0.02
Dimension [dk]19.05
Diameter [d1]12.92
Dimension [d2]26
Thread [d3]M10 x 1.5
Diameter [d4]15
Diameter [d5]19
Dimension [h]43
Dimension [L1]19 ±0.05
Dimension [b]56
Dimension [L4]6.5
Dimension [W]16
Max. Tilt Angle14°
Static Load Rating [N]8100
Mass (g)70

Product specifications

Diameter [d] H710
Dimension [B]14 +0/-0.05
Dimension [C]10.5 ±0.02
Dimension [dk]19.05
Diameter [d1]12.92
Dimension [d2]26
Thread [d3]M10 x 1.5
Diameter [d4]15
Diameter [d5]19
Dimension [h]43
Dimension [L1]19 ±0.05
Dimension [b]56
Dimension [L4]6.5
Dimension [W]16
Max. Tilt Angle14°
Static Load Rating [N]8100
Mass (g)70
