SFE12.45

SFE12.45

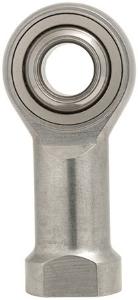

Standard Duty Female Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 12mm Bore.

Product specifications

Diameter [d] H712
Dimension [B]16 +0/-0.05
Dimension [C]12 ±0.02
Dimension [dk]22.23
Diameter [d1]15.43
Dimension [d2]30
Thread [d3]M12 x 1.75
Diameter [d4]17.5
Diameter [d5]22
Dimension [h]50
Dimension [L1]20 ±0.05
Dimension [b]65
Dimension [L4]6.5
Dimension [W]18
Max. Tilt Angle13°
Static Load Rating [N]10900
Mass (g)110
