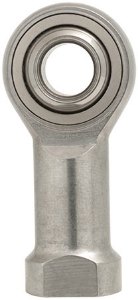

Standard Duty Female Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 16mm Bore.

Product specifications

Diameter [d] H716
Dimension [B]21 +0/-0.05
Dimension [C]15 ±0.02
Dimension [dk]28.58
Diameter [d1]19.39
Dimension [d2]38
Thread [d3]M16 x 2
Diameter [d4]22
Diameter [d5]27
Dimension [h]64
Dimension [L1]30 ±0.05
Dimension [b]83
Dimension [L4]8
Dimension [W]24
Max. Tilt Angle15°
Static Load Rating [N]16500
Mass (g)200
