SFE25.45

Ondrives Precision Gears and Gearboxes Part number SFE25.45

SFE25.45

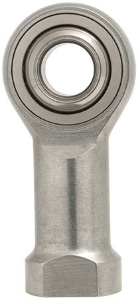

Standard Duty Female Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 25mm Bore.
Ondrives Precision Gears and Gearboxes Part number SFE25.45 Ondrives Precision Gears and Gearboxes Part number SFE25.45

Product specifications

Diameter [d] H725
Dimension [B]31 +0/-0.05
Dimension [C]22 ±0.02
Dimension [dk]42.85
Diameter [d1]29.6
Dimension [d2]56
Thread [d3]M24 x 2
Diameter [d4]33.5
Diameter [d5]42
Dimension [h]94
Dimension [L1]42 ±0.05
Dimension [b]122
Dimension [L4]12
Dimension [W]36
Max. Tilt Angle15°
Static Load Rating [N]34000
Mass (g)670

Product specifications

Diameter [d] H725
Dimension [B]31 +0/-0.05
Dimension [C]22 ±0.02
Dimension [dk]42.85
Diameter [d1]29.6
Dimension [d2]56
Thread [d3]M24 x 2
Diameter [d4]33.5
Diameter [d5]42
Dimension [h]94
Dimension [L1]42 ±0.05
Dimension [b]122
Dimension [L4]12
Dimension [W]36
Max. Tilt Angle15°
Static Load Rating [N]34000
Mass (g)670
