SFE30.45

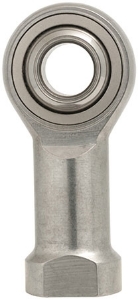

Ondrives Precision Gears and Gearboxes Part number SFE30.45

SFE30.45

Standard Duty Female Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 30mm Bore.
Ondrives Precision Gears and Gearboxes Part number SFE30.45 Ondrives Precision Gears and Gearboxes Part number SFE30.45

Product specifications

Diameter [d] H730
Dimension [B]37 +0/-0.05
Dimension [C]25 ±0.02
Dimension [dk]50.8
Diameter [d1]34.8
Dimension [d2]66
Thread [d3]M30 x 2
Diameter [d4]40
Diameter [d5]50
Dimension [h]110
Dimension [L1]50 ±0.05
Dimension [b]143
Dimension [L4]15
Dimension [W]46
Max. Tilt Angle17°
Static Load Rating [N]46900
Mass (g)1080

Product specifications

Diameter [d] H730
Dimension [B]37 +0/-0.05
Dimension [C]25 ±0.02
Dimension [dk]50.8
Diameter [d1]34.8
Dimension [d2]66
Thread [d3]M30 x 2
Diameter [d4]40
Diameter [d5]50
Dimension [h]110
Dimension [L1]50 ±0.05
Dimension [b]143
Dimension [L4]15
Dimension [W]46
Max. Tilt Angle17°
Static Load Rating [N]46900
Mass (g)1080
