SFE3.45

Ondrives Precision Gears and Gearboxes Part number SFE3.45

SFE3.45

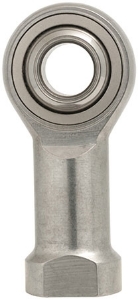

Standard Duty Female Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 3mm Bore.
Ondrives Precision Gears and Gearboxes Part number SFE3.45 Ondrives Precision Gears and Gearboxes Part number SFE3.45

Product specifications

Diameter [d] H73
Dimension [B]6 +0/-0.05
Dimension [C]4.5 ±0.02
Dimension [dk]7.93
Diameter [d1]5.18
Dimension [d2]12
Thread [d3]M3 x 0.50
Diameter [d4]5
Diameter [d5]6.5
Dimension [h]21
Dimension [L1]7.5 ±0.05
Dimension [b]27
Dimension [L4]3
Dimension [W]5.5
Max. Tilt Angle15°
Static Load Rating [N]1600
Mass (g)7

Product specifications

Diameter [d] H73
Dimension [B]6 +0/-0.05
Dimension [C]4.5 ±0.02
Dimension [dk]7.93
Diameter [d1]5.18
Dimension [d2]12
Thread [d3]M3 x 0.50
Diameter [d4]5
Diameter [d5]6.5
Dimension [h]21
Dimension [L1]7.5 ±0.05
Dimension [b]27
Dimension [L4]3
Dimension [W]5.5
Max. Tilt Angle15°
Static Load Rating [N]1600
Mass (g)7
