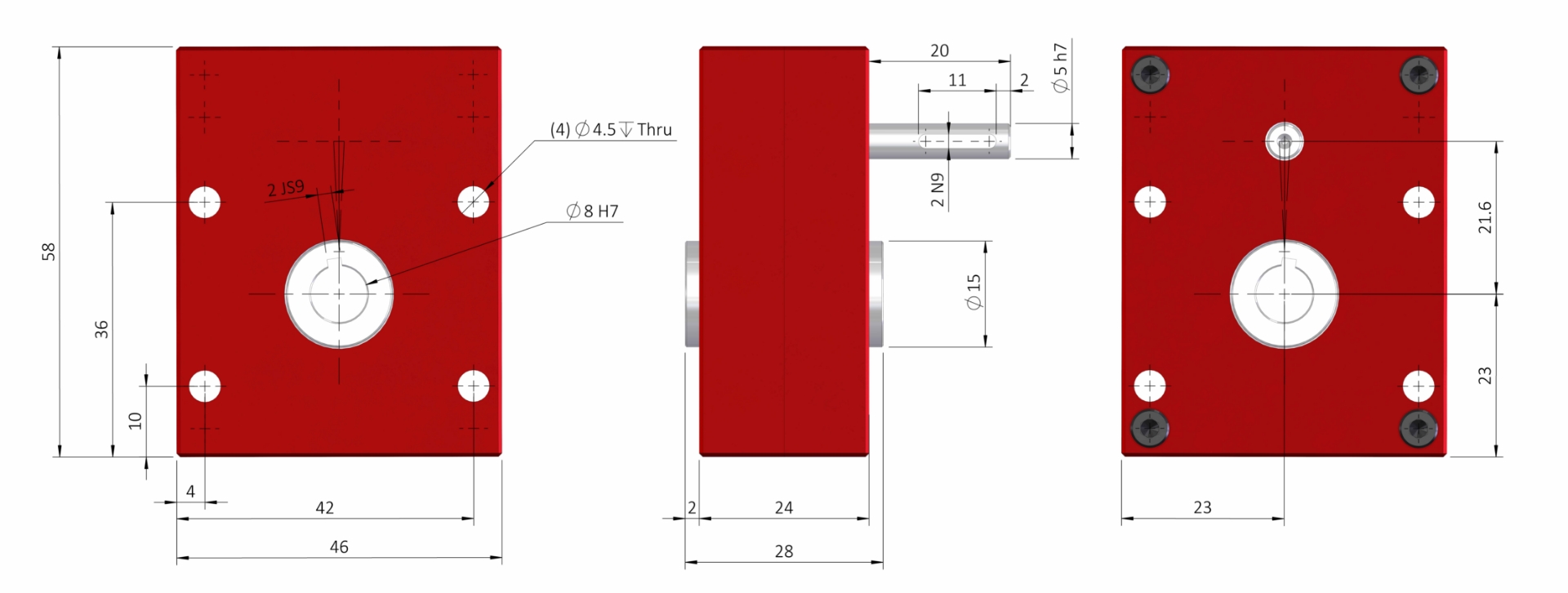

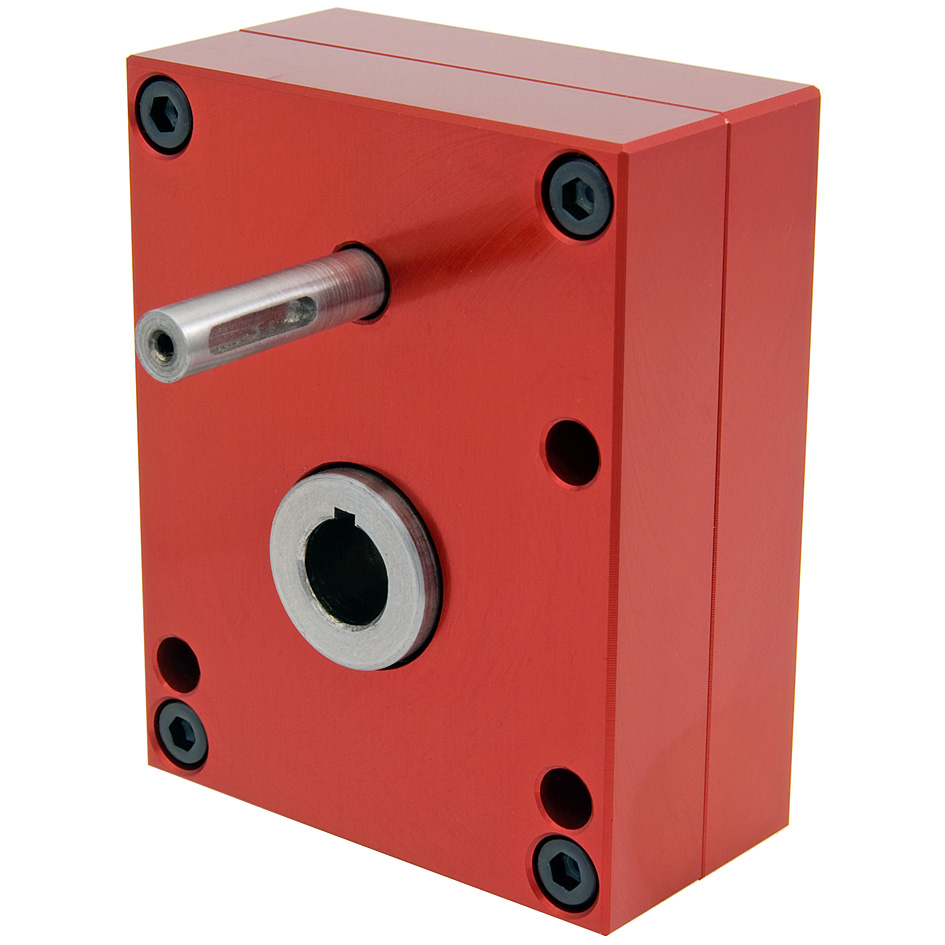

FF10 3.7Nm 21.6mm-Centres Ø5-Input-Shaft Ø8-Output-Bore
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Nom Output Torque T₂n [Nm] | Torque | Output Backlash j |
|---|---|---|---|---|---|
| FF10-2 | 2:1 | 21.60 | 1.55 | Normal | ≤0.5° |
| FF10-3 | 3:1 | 21.60 | 1.49 | Normal | ≤0.5° |
| FF10-4 | 4:1 | 21.60 | 1.33 | Normal | ≤0.5° |
| FF10-5 | 5:1 | 21.60 | 1.27 | Normal | ≤0.5° |
| FF10-6 | 6:1 | 21.60 | 1.08 | Normal | ≤0.5° |
| FF10-7 | 7:1 | 21.60 | 0.90 | Normal | ≤0.5° |
| FF10-2A | 2:1 | 21.60 | 1.55 | Normal | ≤0.16° |
| FF10-2AR | 2:1 | 21.60 | 1.55 | Normal | ≤0.08° |
| FF10-3A | 3:1 | 21.60 | 1.49 | Normal | ≤0.16° |
| FF10-3AR | 3:1 | 21.60 | 1.49 | Normal | ≤0.08° |
| FF10-4A | 4:1 | 21.60 | 1.33 | Normal | ≤0.16° |
| FF10-4AR | 4:1 | 21.60 | 1.33 | Normal | ≤0.08° |
| FF10-5A | 5:1 | 21.60 | 1.27 | Normal | ≤0.16° |
| FF10-5AR | 5:1 | 21.60 | 1.27 | Normal | ≤0.08° |
| FF10-6A | 6:1 | 21.60 | 1.08 | Normal | ≤0.16° |
| FF10-6AR | 6:1 | 21.60 | 1.08 | Normal | ≤0.08° |
| FF10-7A | 7:1 | 21.60 | 0.90 | Normal | ≤0.16° |
| FF10-7AR | 7:1 | 21.60 | 0.90 | Normal | ≤0.08° |
| FF10-XH-2 | 2:1 | 21.60 | 3.1 | High | ≤0.5° |
| FF10-XH-2A | 2:1 | 21.60 | 3.1 | High | ≤0.16° |
| FF10-XH-2AR | 2:1 | 21.60 | 3.1 | High | ≤0.08° |
| FF10-XH-3 | 3:1 | 21.60 | 2.98 | High | ≤0.5° |
| FF10-XH-3A | 3:1 | 21.60 | 2.98 | High | ≤0.16° |
| FF10-XH-3AR | 3:1 | 21.60 | 2.98 | High | ≤0.08° |
| FF10-XH-4 | 4:1 | 21.60 | 2.66 | High | ≤0.5° |
| FF10-XH-4A | 4:1 | 21.60 | 2.66 | High | ≤0.16° |
| FF10-XH-4AR | 4:1 | 21.60 | 2.66 | High | ≤0.08° |
| FF10-XH-5 | 5:1 | 21.60 | 2.54 | High | ≤0.5° |
| FF10-XH-5A | 5:1 | 21.60 | 2.54 | High | ≤0.16° |
| FF10-XH-5AR | 5:1 | 21.60 | 2.54 | High | ≤0.08° |
| FF10-XH-6 | 6:1 | 21.60 | 2.16 | High | ≤0.5° |
| FF10-XH-6A | 6:1 | 21.60 | 2.16 | High | ≤0.16° |
| FF10-XH-6AR | 6:1 | 21.60 | 2.16 | High | ≤0.08° |
| FF10-XH-7 | 7:1 | 21.60 | 1.8 | High | ≤0.5° |
| FF10-XH-7A | 7:1 | 21.60 | 1.8 | High | ≤0.16° |
| FF10-XH-7AR | 7:1 | 21.60 | 1.8 | High | ≤0.08° |
