    Inline Offset Gear Reducer

    Ondrives range of parallel axis inline offset spur and helical gear reducers, helical gear drives are available with output bores from 8mm to 30mm and a torque range upto 850Nm. A lightweight compact design ideal for shaft mounting and availble with a minimum backlash. Units are available with modifications including ratios and mountings to suit your application.

    See more about Ondrives and our gear drive production at -Ondrives Gears and Gearboxes web site

    View as Grid List
    Sort by
    Display per page

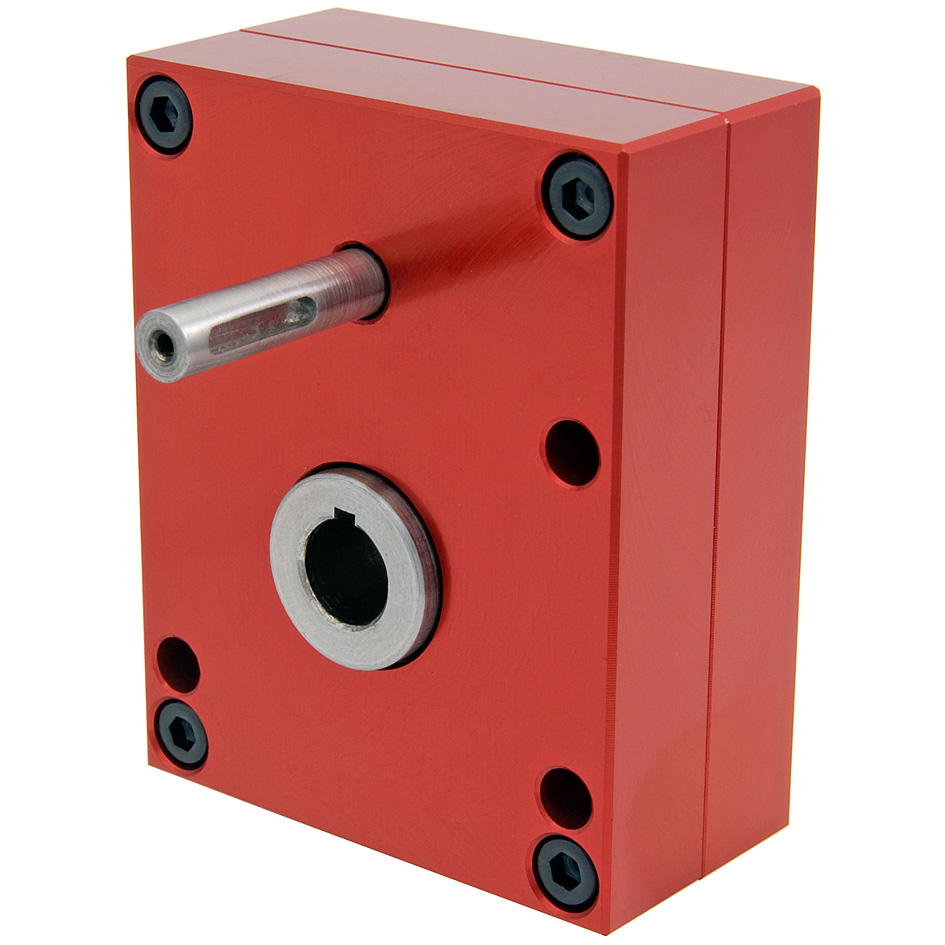

    Ondrives Precision Gears and Gearboxes Part number  FF10-2

    FF10-2

    FF10-2
    Parallel gears, ≤30' backlash, 5mm shaft input, 8mm bore output, 1.34Nm-3.7Nm output torque, ratio 2:1
    Ondrives Precision Gears and Gearboxes Part number  FF10-2A

    FF10-2A

    FF10-2A
    Parallel gears, ≤10' backlash, 5mm shaft input, 8mm bore output, 1.34Nm-3.70Nm output torque, ratio 2:1
    Ondrives Precision Gears and Gearboxes Part number  FF10-2AR

    FF10-2AR

    FF10-2AR
    Parallel gears, ≤5' backlash, 5mm shaft input, 8mm bore output, 1.34Nm-3.7Nm output torque, ratio 2:1
    Ondrives Precision Gears and Gearboxes Part number  FF10-3

    FF10-3

    FF10-3
    Parallel gears, ≤30' backlash, 5mm shaft input, 8mm bore output, 1.29Nm-3.57Nm output torque, ratio 3:1
    Ondrives Precision Gears and Gearboxes Part number  FF10-3A

    FF10-3A

    FF10-3A
    Parallel gears, ≤10' backlash, 5mm shaft input, 8mm bore output, 1.29Nm-3.57Nm output torque, ratio 3:1
    Ondrives Precision Gears and Gearboxes Part number  FF10-3AR

    FF10-3AR

    FF10-3AR
    Parallel gears, ≤5' backlash, 5mm shaft input, 8mm bore output, 1.29Nm-3.57Nm output torque, ratio 3:1
