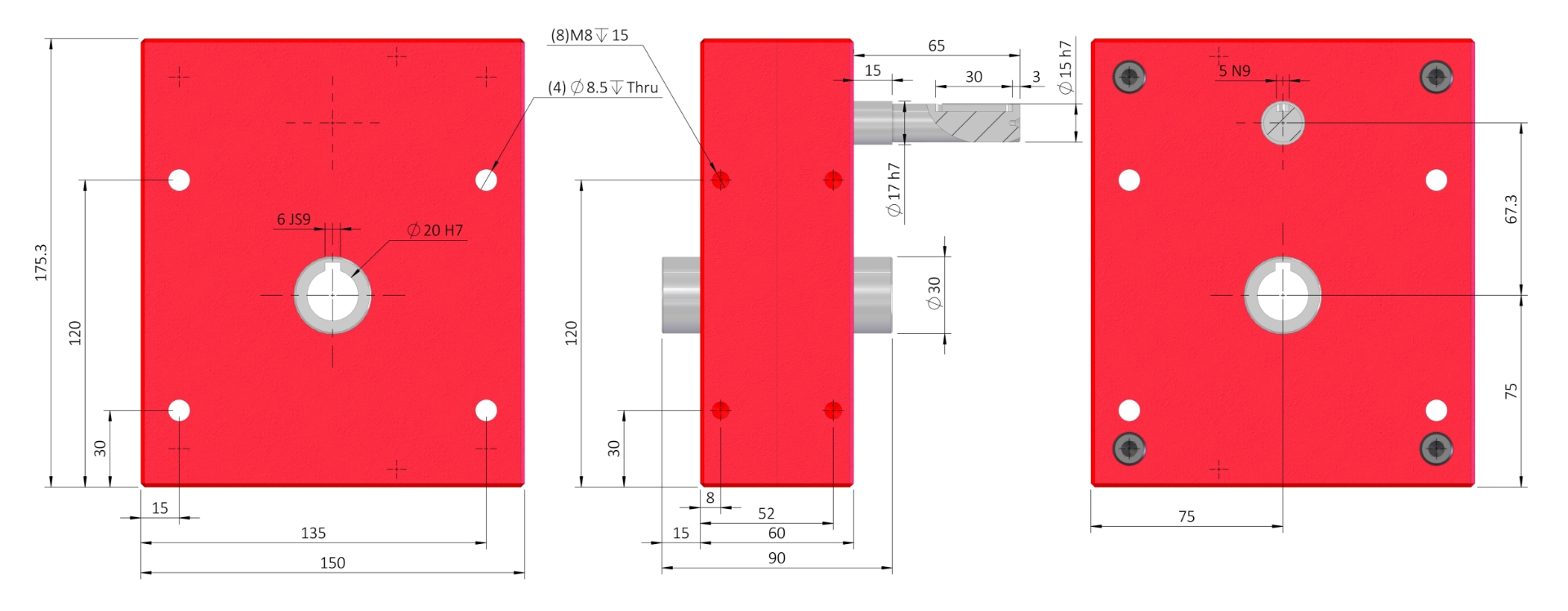

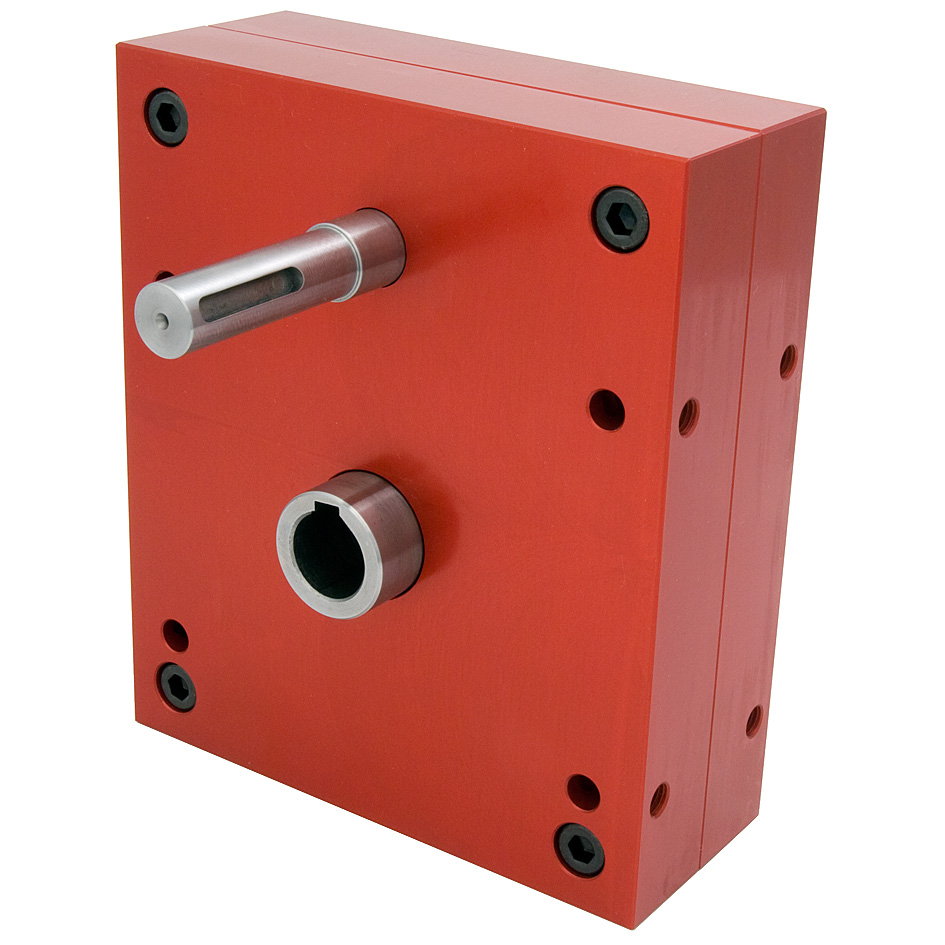

FF30 83Nm 67.3mm-Centres Ø15-Input-Shaft Ø20-Output-Bore

Sku (Part No.)	Gear Ratio [i=]	Centre Dist. [a]	Nom Output Torque T₂n [Nm]	Torque	Output Backlash j
FF30-2	2:1	67.30	39.1	Normal	≤0.5°
FF30-3	3:1	67.30	34.4	Normal	≤0.5°
FF30-4	4:1	67.30	29.8	Normal	≤0.5°
FF30-5	5:1	67.30	28.7	Normal	≤0.5°
FF30-6	6:1	67.30	27.3	Normal	≤0.5°
FF30-7	7:1	67.30	25.1	Normal	≤0.5°
FF30-2A	2:1	67.30	39.1	Normal	≤0.16°
FF30-3A	3:1	67.30	34.4	Normal	≤0.16°
FF30-4A	4:1	67.30	29.8	Normal	≤0.16°
FF30-5A	5:1	67.30	28.7	Normal	≤0.16°
FF30-6A	6:1	67.30	27.3	Normal	≤0.16°
FF30-7A	7:1	67.30	25.1	Normal	≤0.16°
FF30-2AR	2:1	67.30	39.1	Normal	≤0.08°
FF30-3AR	3:1	67.30	34.4	Normal	≤0.08°
FF30-4AR	4:1	67.30	29.8	Normal	≤0.08°
FF30-5AR	5:1	67.30	28.7	Normal	≤0.08°
FF30-6AR	6:1	67.30	27.3	Normal	≤0.08°
FF30-7AR	7:1	67.30	25.1	Normal	≤0.08°
FF30-XH-2	2:1	67.30	78.2	High	≤0.5°
FF30-XH-2A	2:1	67.30	78.2	High	≤0.16°
FF30-XH-2AR	2:1	67.30	78.2	High	≤0.08°
FF30-XH-3	3:1	67.30	68.8	High	≤0.5°
FF30-XH-3A	3:1	67.30	68.8	High	≤0.16°
FF30-XH-3AR	3:1	67.30	68.8	High	≤0.08°
FF30-XH-4	4:1	67.30	59.6	High	≤0.5°
FF30-XH-4A	4:1	67.30	59.6	High	≤0.16°
FF30-XH-4AR	4:1	67.30	59.6	High	≤0.08°
FF30-XH-5	5:1	67.30	57.4	High	≤0.5°
FF30-XH-5A	5:1	67.30	57.4	High	≤0.16°
FF30-XH-5AR	5:1	67.30	57.4	High	≤0.08°
FF30-XH-6	6:1	67.30	54.6	High	≤0.5°
FF30-XH-6A	6:1	67.30	54.6	High	≤0.16°
FF30-XH-6AR	6:1	67.30	54.6	High	≤0.08°
FF30-XH-7	7:1	67.30	50.2	High	≤0.5°
FF30-XH-7A	7:1	67.30	50.2	High	≤0.16°
FF30-XH-7AR	7:1	67.30	50.2	High	≤0.08°

;
