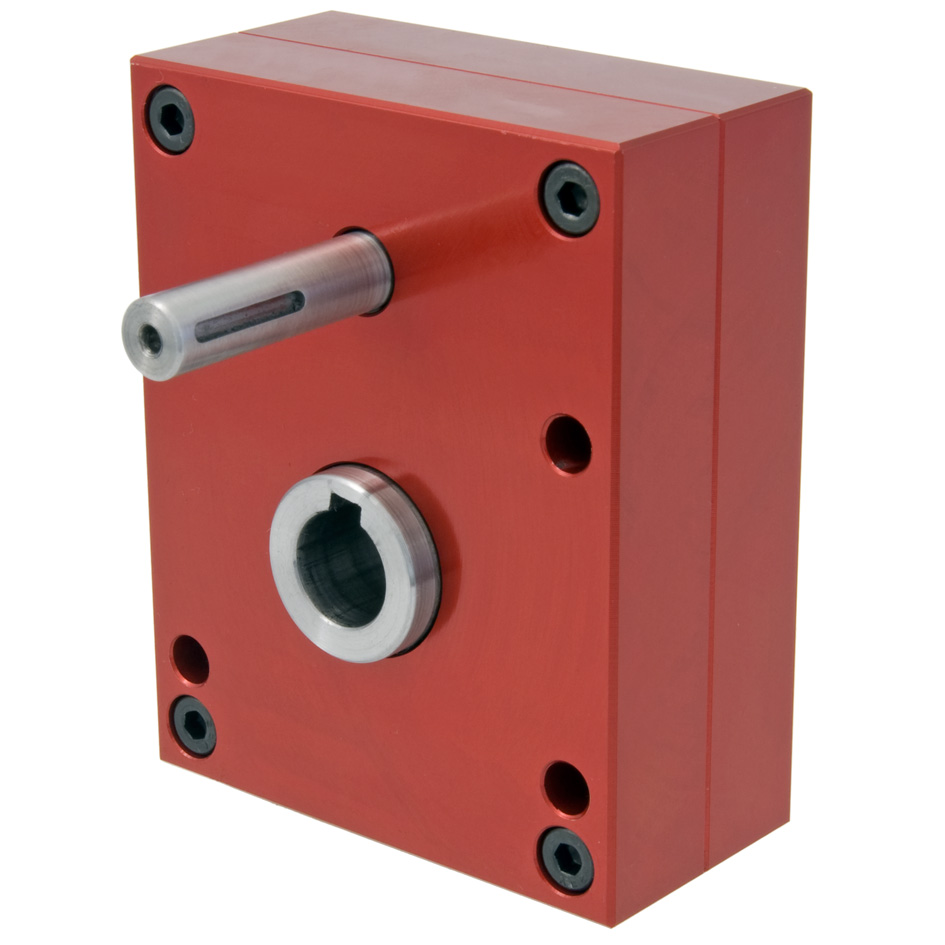

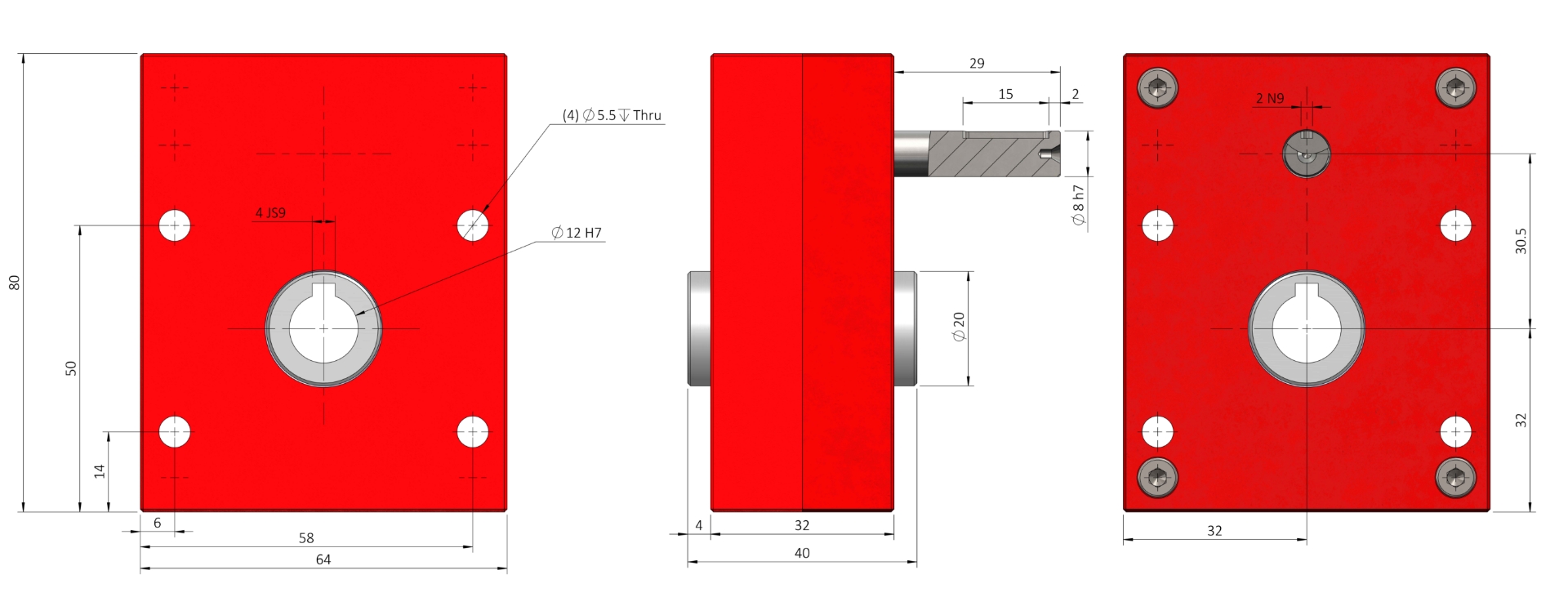

FF15 10.0Nm 30.5mm-Centres Ø8-Input-Shaft Ø12-Output-Bore
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Nom Output Torque T₂n [Nm] | Torque | Output Backlash j |
|---|---|---|---|---|---|
| FF15-2 | 2:1 | 30.50 | 4.3 | Normal | ≤0.5° |
| FF15-3 | 3:1 | 30.50 | 4 | Normal | ≤0.5° |
| FF15-4 | 4:1 | 30.50 | 3.7 | Normal | ≤0.5° |
| FF15-5 | 5:1 | 30.50 | 3.4 | Normal | ≤0.5° |
| FF15-6 | 6:1 | 30.50 | 3.1 | Normal | ≤0.5° |
| FF15-7 | 7:1 | 30.50 | 2.6 | Normal | ≤0.5° |
| FF15-2A | 2:1 | 30.50 | 4.3 | Normal | ≤0.16° |
| FF15-3A | 3:1 | 30.50 | 4 | Normal | ≤0.16° |
| FF15-4A | 4:1 | 30.50 | 3.7 | Normal | ≤0.16° |
| FF15-5A | 5:1 | 30.50 | 3.4 | Normal | ≤0.16° |
| FF15-6A | 6:1 | 30.50 | 3.1 | Normal | ≤0.16° |
| FF15-7A | 7:1 | 30.50 | 2.6 | Normal | ≤0.16° |
| FF15-2AR | 2:1 | 30.50 | 4.3 | Normal | ≤0.08° |
| FF15-3AR | 3:1 | 30.50 | 4 | Normal | ≤0.08° |
| FF15-4AR | 4:1 | 30.50 | 3.7 | Normal | ≤0.08° |
| FF15-5AR | 5:1 | 30.50 | 3.4 | Normal | ≤0.08° |
| FF15-6AR | 6:1 | 30.50 | 3.1 | Normal | ≤0.08° |
| FF15-7AR | 7:1 | 30.50 | 2.6 | Normal | ≤0.08° |
| FF15-XH-2 | 2:1 | 30.50 | 8.6 | High | ≤0.5° |
| FF15-XH-2A | 2:1 | 30.50 | 8.6 | High | ≤0.16° |
| FF15-XH-2AR | 2:1 | 30.50 | 8.6 | High | ≤0.08° |
| FF15-XH-3 | 3:1 | 30.50 | 8 | High | ≤0.5° |
| FF15-XH-3A | 3:1 | 30.50 | 8 | High | ≤0.16° |
| FF15-XH-3AR | 3:1 | 30.50 | 8 | High | ≤0.08° |
| FF15-XH-4 | 4:1 | 30.50 | 7.4 | High | ≤0.5° |
| FF15-XH-4A | 4:1 | 30.50 | 7.4 | High | ≤0.16° |
| FF15-XH-4AR | 4:1 | 30.50 | 7.4 | High | ≤0.08° |
| FF15-XH-5 | 5:1 | 30.50 | 6.8 | High | ≤0.5° |
| FF15-XH-5A | 5:1 | 30.50 | 6.8 | High | ≤0.16° |
| FF15-XH-5AR | 5:1 | 30.50 | 6.8 | High | ≤0.08° |
| FF15-XH-6 | 6:1 | 30.50 | 6.2 | High | ≤0.5° |
| FF15-XH-6A | 6:1 | 30.50 | 6.2 | High | ≤0.16° |
| FF15-XH-6AR | 6:1 | 30.50 | 6.2 | High | ≤0.08° |
| FF15-XH-7 | 7:1 | 30.50 | 5.2 | High | ≤0.5° |
| FF15-XH-7A | 7:1 | 30.50 | 5.2 | High | ≤0.16° |
| FF15-XH-7AR | 7:1 | 30.50 | 5.2 | High | ≤0.08° |
