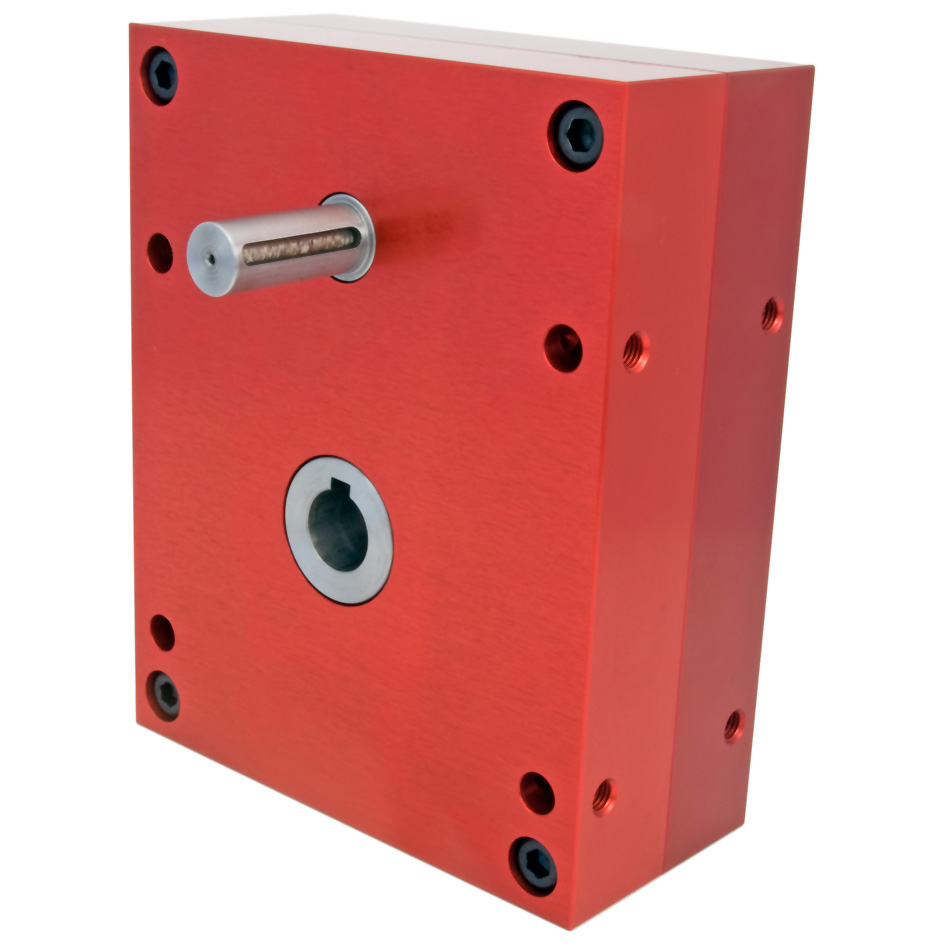

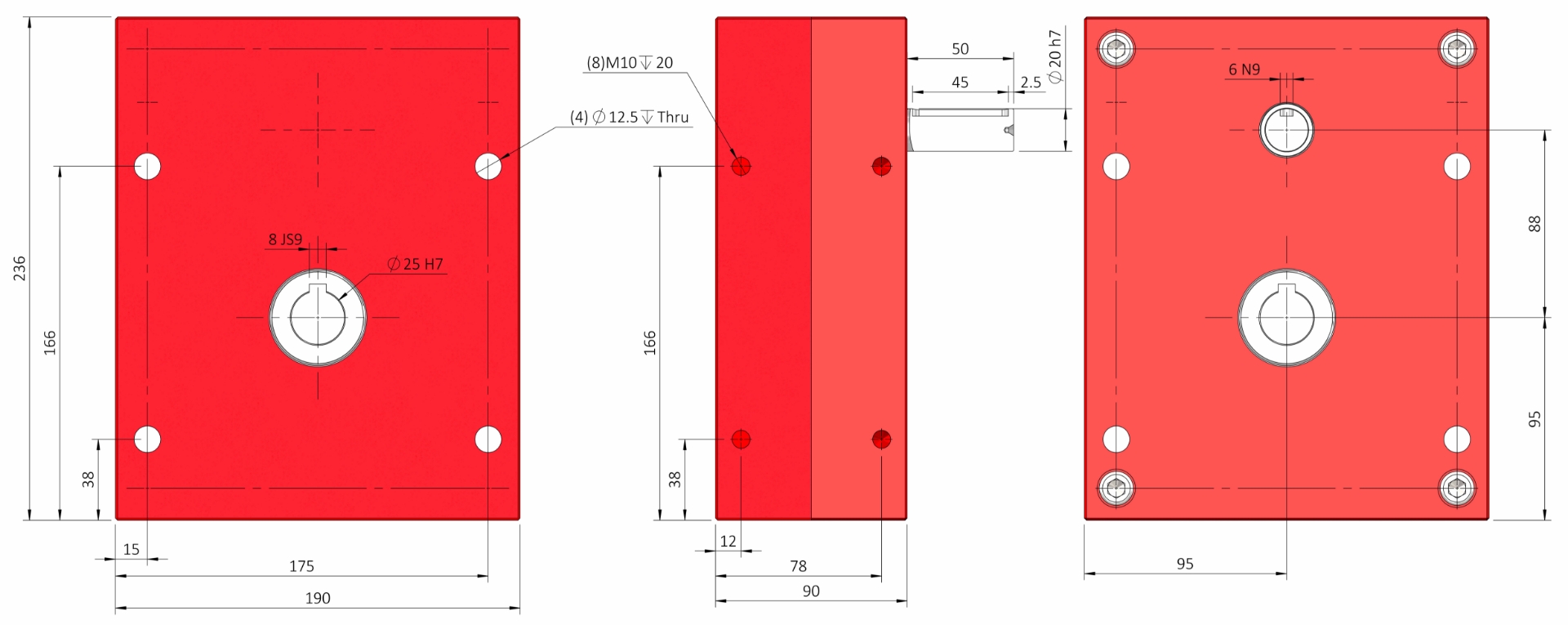

FF40 210Nm 88mm-Centres Ø20-Input-Shaft Ø25-Output-Bore
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Nom Output Torque T₂n [Nm] | Torque | Output Backlash j |
|---|---|---|---|---|---|
| FF40-2 | 2:1 | 88.00 | 90 | Normal | ≤0.5° |
| FF40-3 | 3:1 | 88.00 | 90 | Normal | ≤0.5° |
| FF40-4 | 4:1 | 88.00 | 82 | Normal | ≤0.5° |
| FF40-5 | 5:1 | 88.00 | 76 | Normal | ≤0.5° |
| FF40-6 | 6:1 | 88.00 | 66 | Normal | ≤0.5° |
| FF40-7 | 7:1 | 88.00 | 64 | Normal | ≤0.5° |
| FF40-2A | 2:1 | 88.00 | 90 | Normal | ≤0.16° |
| FF40-2AR | 2:1 | 88.00 | 90 | Normal | ≤0.08° |
| FF40-3A | 3:1 | 88.00 | 90 | Normal | ≤0.16° |
| FF40-3AR | 3:1 | 88.00 | 90 | Normal | ≤0.08° |
| FF40-4A | 4:1 | 88.00 | 82 | Normal | ≤0.16° |
| FF40-4AR | 4:1 | 88.00 | 82 | Normal | ≤0.08° |
| FF40-5A | 5:1 | 88.00 | 76 | Normal | ≤0.16° |
| FF40-5AR | 5:1 | 88.00 | 76 | Normal | ≤0.08° |
| FF40-6A | 6:1 | 88.00 | 66 | Normal | ≤0.16° |
| FF40-6AR | 6:1 | 88.00 | 66 | Normal | ≤0.08° |
| FF40-7A | 7:1 | 88.00 | 64 | Normal | ≤0.16° |
| FF40-7AR | 7:1 | 88.00 | 64 | Normal | ≤0.08° |
| FF40-XH-2 | 2:1 | 88.00 | 180 | High | ≤0.5° |
| FF40-XH-2A | 2:1 | 88.00 | 180 | High | ≤0.16° |
| FF40-XH-2AR | 2:1 | 88.00 | 180 | High | ≤0.08° |
| FF40-XH-3 | 3:1 | 88.00 | 180 | High | ≤0.5° |
| FF40-XH-3A | 3:1 | 88.00 | 180 | High | ≤0.16° |
| FF40-XH-3AR | 3:1 | 88.00 | 180 | High | ≤0.08° |
| FF40-XH-4 | 4:1 | 88.00 | 164 | High | ≤0.5° |
| FF40-XH-4A | 4:1 | 88.00 | 164 | High | ≤0.16° |
| FF40-XH-4AR | 4:1 | 88.00 | 164 | High | ≤0.08° |
| FF40-XH-5 | 5:1 | 88.00 | 152 | High | ≤0.5° |
| FF40-XH-5A | 5:1 | 88.00 | 152 | High | ≤0.16° |
| FF40-XH-5AR | 5:1 | 88.00 | 152 | High | ≤0.08° |
| FF40-XH-6 | 6:1 | 88.00 | 132 | High | ≤0.5° |
| FF40-XH-6A | 6:1 | 88.00 | 132 | High | ≤0.16° |
| FF40-XH-6AR | 6:1 | 88.00 | 132 | High | ≤0.08° |
| FF40-XH-7 | 7:1 | 88.00 | 128 | High | ≤0.5° |
| FF40-XH-7A | 7:1 | 88.00 | 128 | High | ≤0.16° |
| FF40-XH-7AR | 7:1 | 88.00 | 128 | High | ≤0.08° |
