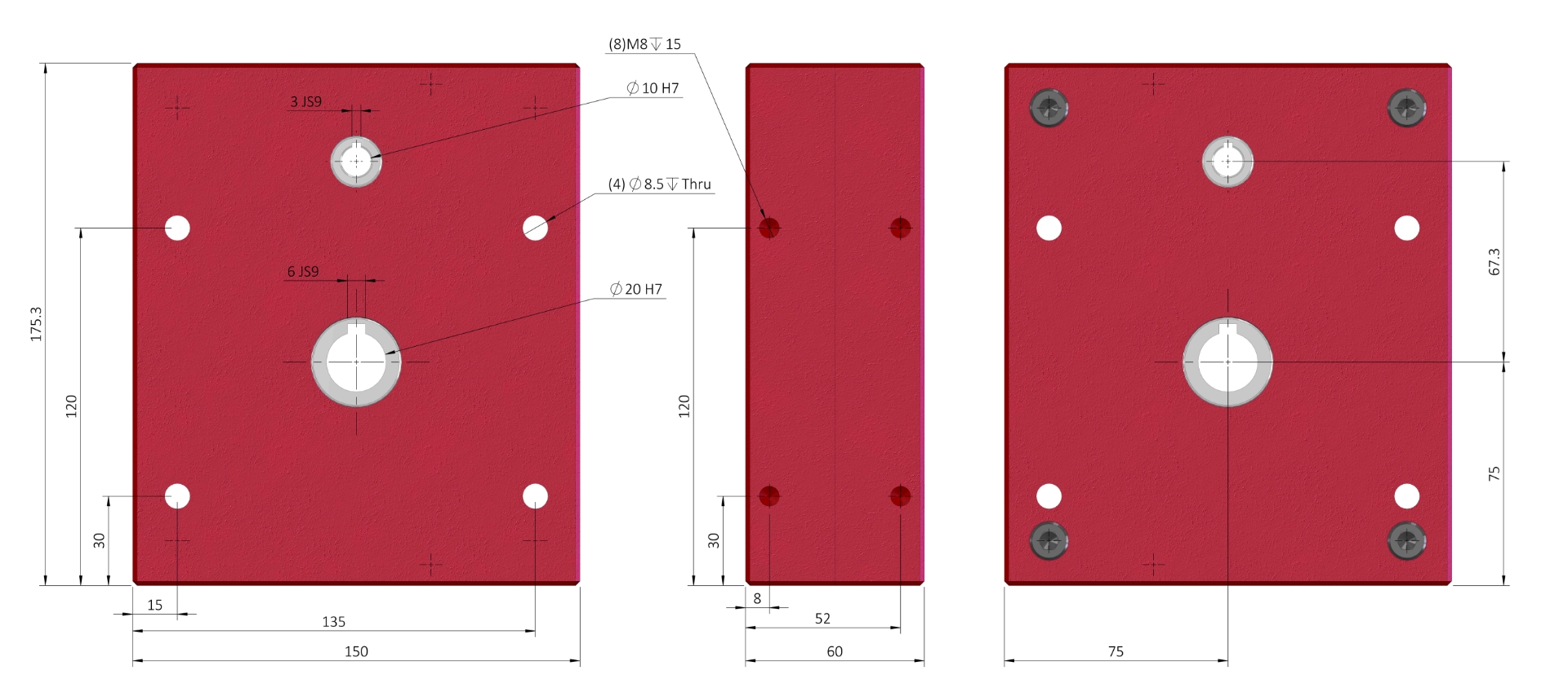

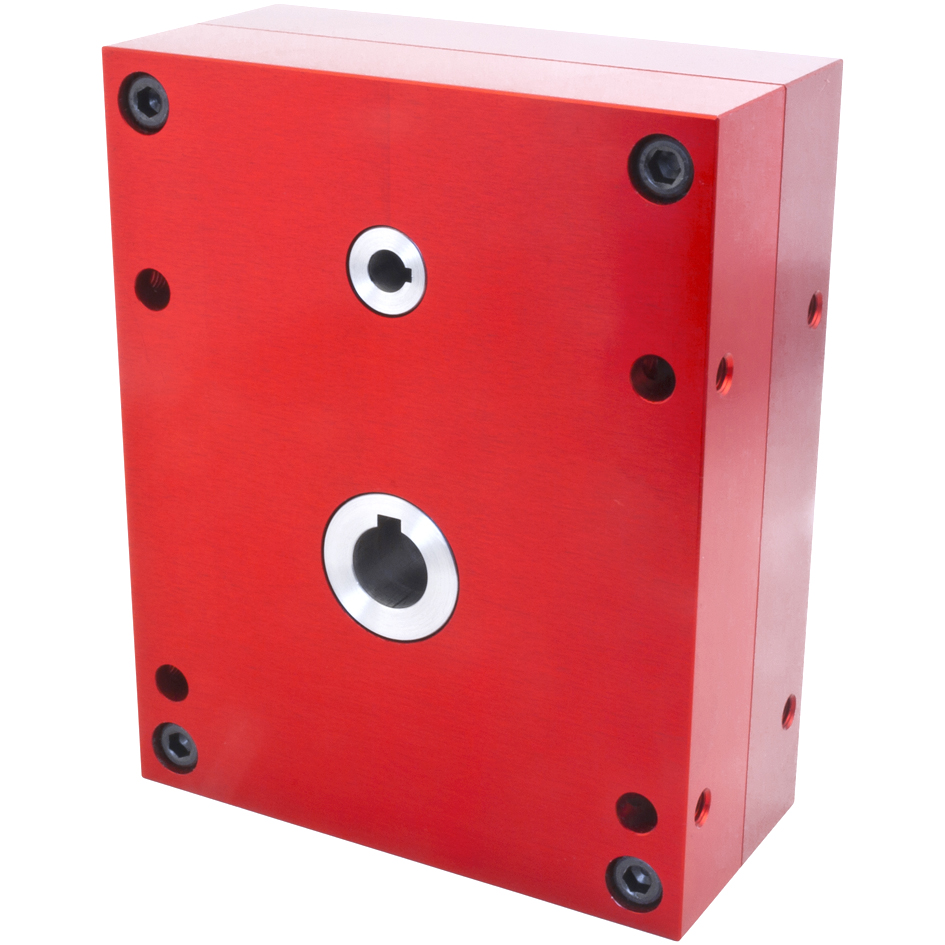

FFS30 83Nm 67.3mm-Centres Ø8-Ø10-Input-Bores Ø20-Output-Bore
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Nom Output Torque T₂n [Nm] | Torque | Output Backlash j | Input Bore Ø |
|---|---|---|---|---|---|---|
| FFS30-2-8 | 2:1 | 67.30 | 39.1 | Normal | ≤0.5° | 8 |
| FFS30-3-8 | 3:1 | 67.30 | 34.4 | Normal | ≤0.5° | 8 |
| FFS30-4-8 | 4:1 | 67.30 | 29.8 | Normal | ≤0.5° | 8 |
| FFS30-5-8 | 5:1 | 67.30 | 28.7 | Normal | ≤0.5° | 8 |
| FFS30-2-9 | 2:1 | 67.30 | 39.1 | Normal | ≤0.5° | 9 |
| FFS30-3-9 | 3:1 | 67.30 | 34.4 | Normal | ≤0.5° | 9 |
| FFS30-4-9 | 4:1 | 67.30 | 29.8 | Normal | ≤0.5° | 9 |
| FFS30-5-9 | 5:1 | 67.30 | 28.7 | Normal | ≤0.5° | 9 |
| FFS30-2-10 | 2:1 | 67.30 | 39.1 | Normal | ≤0.5° | 10 |
| FFS30-3-10 | 3:1 | 67.30 | 34.4 | Normal | ≤0.5° | 10 |
| FFS30-4-10 | 4:1 | 67.30 | 29.8 | Normal | ≤0.5° | 10 |
| FFS30-5-10 | 5:1 | 67.30 | 28.7 | Normal | ≤0.5° | 10 |
| FFS30-2A-10 | 2:1 | 67.30 | 39.1 | Normal | ≤0.16° | 10 |
| FFS30-2AR-10 | 2:1 | 67.30 | 39.1 | Normal | ≤0.08° | 10 |
| FFS30-2AR-8 | 2:1 | 67.30 | 39.1 | Normal | ≤0.08° | 8 |
| FFS30-2A-8 | 2:1 | 67.30 | 39.1 | Normal | ≤0.16° | 8 |
| FFS30-2AR-9 | 2:1 | 67.30 | 39.1 | Normal | ≤0.08° | 9 |
| FFS30-3A-10 | 3:1 | 67.30 | 34.4 | Normal | ≤0.16° | 10 |
| FFS30-3AR-10 | 3:1 | 67.30 | 34.4 | Normal | ≤0.08° | 10 |
| FFS30-3A-8 | 3:1 | 67.30 | 34.4 | Normal | ≤0.16° | 8 |
| FFS30-3AR-8 | 3:1 | 67.30 | 34.4 | Normal | ≤0.08° | 8 |
| FFS30-3A-9 | 3:1 | 67.30 | 34.4 | Normal | ≤0.16° | 9 |
| FFS30-3AR-9 | 3:1 | 67.30 | 34.4 | Normal | ≤0.08° | 9 |
| FFS30-4A-10 | 4:1 | 67.30 | 29.8 | Normal | ≤0.16° | 10 |
| FFS30-4AR-10 | 4:1 | 67.30 | 29.8 | Normal | ≤0.08° | 10 |
| FFS30-4A-8 | 4:1 | 67.30 | 29.8 | Normal | ≤0.16° | 8 |
| FFS30-4AR-8 | 4:1 | 67.30 | 29.8 | Normal | ≤0.08° | 8 |
| FFS30-4A-9 | 4:1 | 67.30 | 29.8 | Normal | ≤0.16° | 9 |
| FFS30-4AR-9 | 4:1 | 67.30 | 29.8 | Normal | ≤0.08° | 9 |
| FFS30-5A-10 | 5:1 | 67.30 | 28.7 | Normal | ≤0.16° | 10 |
| FFS30-5AR-10 | 5:1 | 67.30 | 28.7 | Normal | ≤0.08° | 10 |
| FFS30-5A-8 | 5:1 | 67.30 | 28.7 | Normal | ≤0.16° | 8 |
| FFS30-5AR-8 | 5:1 | 67.30 | 28.7 | Normal | ≤0.08° | 8 |
| FFS30-5A-9 | 5:1 | 67.30 | 28.7 | Normal | ≤0.16° | 9 |
| FFS30-5AR-9 | 5:1 | 67.30 | 28.7 | Normal | ≤0.08° | 9 |
| FFS30-2A-9 | 2:1 | 67.30 | 39.1 | Normal | ≤0.16° | 9 |
| FFS30-XH-2-10 | 2:1 | 67.30 | 78.2 | High | ≤0.5° | 10 |
| FFS30-XH-2-8 | 2:1 | 67.30 | 78.2 | High | ≤0.5° | 8 |
| FFS30-XH-2-9 | 2:1 | 67.30 | 78.2 | High | ≤0.5° | 9 |
| FFS30-XH-2A-10 | 2:1 | 67.30 | 78.2 | High | ≤0.16° | 10 |
| FFS30-XH-2A-8 | 2:1 | 67.30 | 78.2 | High | ≤0.16° | 8 |
| FFS30-XH-2A-9 | 2:1 | 67.30 | 78.2 | High | ≤0.16° | 9 |
| FFS30-XH-2AR-10 | 2:1 | 67.30 | 78.2 | High | ≤0.08° | 10 |
| FFS30-XH-2AR-8 | 2:1 | 67.30 | 78.2 | High | ≤0.08° | 8 |
| FFS30-XH-2AR-9 | 2:1 | 67.30 | 78.2 | High | ≤0.08° | 9 |
| FFS30-XH-3-10 | 3:1 | 67.30 | 68.8 | High | ≤0.5° | 10 |
| FFS30-XH-3-8 | 3:1 | 67.30 | 68.8 | High | ≤0.5° | 8 |
| FFS30-XH-3-9 | 3:1 | 67.30 | 68.8 | High | ≤0.5° | 9 |
| FFS30-XH-3A-10 | 3:1 | 67.30 | 68.8 | High | ≤0.16° | 10 |
| FFS30-XH-3A-8 | 3:1 | 67.30 | 68.8 | High | ≤0.16° | 8 |
| FFS30-XH-3A-9 | 3:1 | 67.30 | 68.8 | High | ≤0.16° | 9 |
| FFS30-XH-3AR-10 | 3:1 | 67.30 | 68.8 | High | ≤0.08° | 10 |
| FFS30-XH-3AR-8 | 3:1 | 67.30 | 68.8 | High | ≤0.08° | 8 |
| FFS30-XH-3AR-9 | 3:1 | 67.30 | 68.8 | High | ≤0.08° | 9 |
| FFS30-XH-4-10 | 4:1 | 67.30 | 59.6 | High | ≤0.5° | 10 |
| FFS30-XH-4-8 | 4:1 | 67.30 | 59.6 | High | ≤0.5° | 8 |
| FFS30-XH-4-9 | 4:1 | 67.30 | 59.6 | High | ≤0.5° | 9 |
| FFS30-XH-4A-10 | 4:1 | 67.30 | 59.6 | High | ≤0.16° | 10 |
| FFS30-XH-4A-8 | 4:1 | 67.30 | 59.6 | High | ≤0.16° | 8 |
| FFS30-XH-4A-9 | 4:1 | 67.30 | 59.6 | High | ≤0.16° | 9 |
| FFS30-XH-4AR-10 | 4:1 | 67.30 | 59.6 | High | ≤0.08° | 10 |
| FFS30-XH-4AR-8 | 4:1 | 67.30 | 59.6 | High | ≤0.08° | 8 |
| FFS30-XH-4AR-9 | 4:1 | 67.30 | 59.6 | High | ≤0.08° | 9 |
| FFS30-XH-5-10 | 5:1 | 67.30 | 57.4 | High | ≤0.5° | 10 |
| FFS30-XH-5-8 | 5:1 | 67.30 | 57.4 | High | ≤0.5° | 8 |
| FFS30-XH-5-9 | 5:1 | 67.30 | 57.4 | High | ≤0.5° | 9 |
| FFS30-XH-5A-10 | 5:1 | 67.30 | 57.4 | High | ≤0.16° | 10 |
| FFS30-XH-5A-8 | 5:1 | 67.30 | 57.4 | High | ≤0.16° | 8 |
| FFS30-XH-5A-9 | 5:1 | 67.30 | 57.4 | High | ≤0.16° | 9 |
| FFS30-XH-5AR-10 | 5:1 | 67.30 | 57.4 | High | ≤0.08° | 10 |
| FFS30-XH-5AR-8 | 5:1 | 67.30 | 57.4 | High | ≤0.08° | 8 |
| FFS30-XH-5AR-9 | 5:1 | 67.30 | 57.4 | High | ≤0.08° | 9 |
