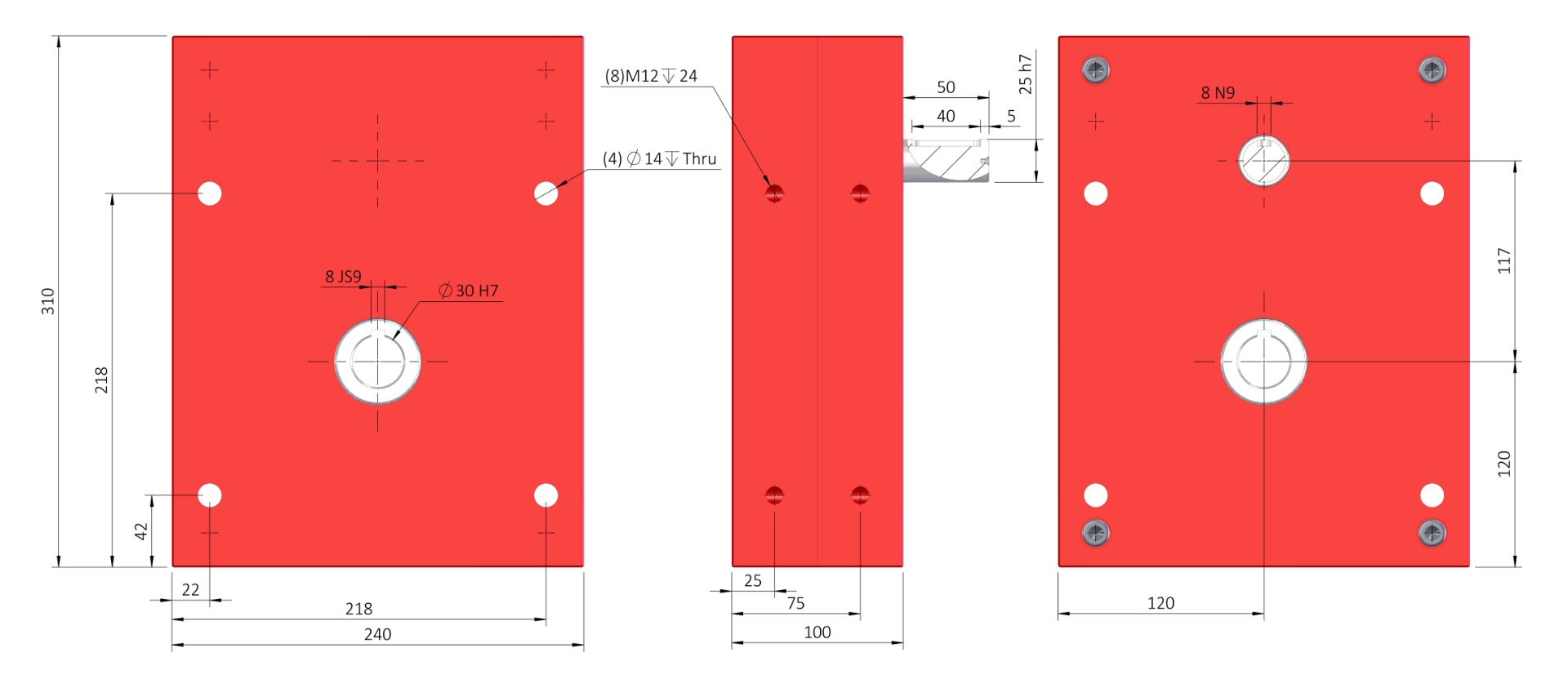

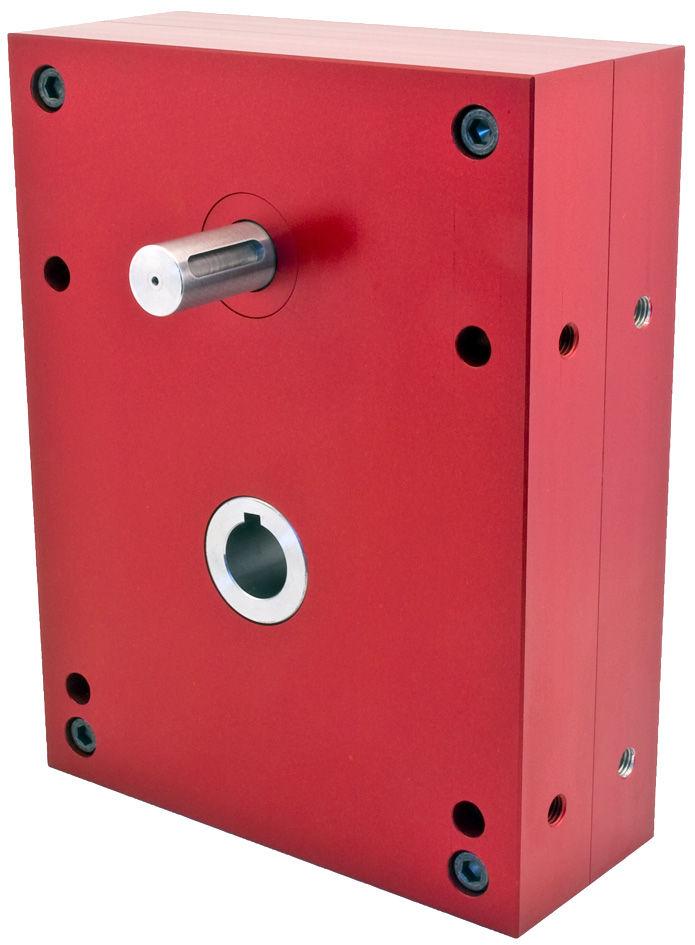

FF50 425Nm 117mm-Centres Ø25-Input-Shaft Ø30-Output-Bore
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Nom Output Torque T₂n [Nm] | Torque | Output Backlash j |
|---|---|---|---|---|---|
| FF50-2 | 2:1 | 117.00 | 180 | Normal | ≤0.5° |
| FF50-3 | 3:1 | 117.00 | 168 | Normal | ≤0.5° |
| FF50-4 | 4:1 | 117.00 | 160 | Normal | ≤0.5° |
| FF50-5 | 5:1 | 117.00 | 149 | Normal | ≤0.5° |
| FF50-6 | 6:1 | 117.00 | 130 | Normal | ≤0.5° |
| FF50-7 | 7:1 | 117.00 | 120 | Normal | ≤0.5° |
| FF50-2A | 2:1 | 117.00 | 180 | Normal | ≤0.16° |
| FF50-2AR | 2:1 | 117.00 | 180 | Normal | ≤0.08° |
| FF50-3A | 3:1 | 117.00 | 168 | Normal | ≤0.16° |
| FF50-3AR | 3:1 | 117.00 | 168 | Normal | ≤0.08° |
| FF50-4A | 4:1 | 117.00 | 160 | Normal | ≤0.16° |
| FF50-4AR | 4:1 | 117.00 | 160 | Normal | ≤0.08° |
| FF50-5A | 5:1 | 117.00 | 149 | Normal | ≤0.16° |
| FF50-5AR | 5:1 | 117.00 | 149 | Normal | ≤0.08° |
| FF50-6A | 6:1 | 117.00 | 130 | Normal | ≤0.16° |
| FF50-6AR | 6:1 | 117.00 | 130 | Normal | ≤0.08° |
| FF50-7A | 7:1 | 117.00 | 120 | Normal | ≤0.16° |
| FF50-7AR | 7:1 | 117.00 | 120 | Normal | ≤0.08° |
| FF50-XH-2 | 2:1 | 117.00 | 360 | High | ≤0.5° |
| FF50-XH-2A | 2:1 | 117.00 | 360 | High | ≤0.16° |
| FF50-XH-2AR | 2:1 | 117.00 | 360 | High | ≤0.08° |
| FF50-XH-3 | 3:1 | 117.00 | 336 | High | ≤0.5° |
| FF50-XH-3A | 3:1 | 117.00 | 336 | High | ≤0.16° |
| FF50-XH-3AR | 3:1 | 117.00 | 336 | High | ≤0.08° |
| FF50-XH-4 | 4:1 | 117.00 | 320 | High | ≤0.5° |
| FF50-XH-4A | 4:1 | 117.00 | 320 | High | ≤0.16° |
| FF50-XH-4AR | 4:1 | 117.00 | 320 | High | ≤0.08° |
| FF50-XH-5 | 5:1 | 117.00 | 298 | High | ≤0.5° |
| FF50-XH-5A | 5:1 | 117.00 | 298 | High | ≤0.16° |
| FF50-XH-5AR | 5:1 | 117.00 | 298 | High | ≤0.08° |
| FF50-XH-6 | 6:1 | 117.00 | 260 | High | ≤0.5° |
| FF50-XH-6A | 6:1 | 117.00 | 260 | High | ≤0.16° |
| FF50-XH-6AR | 6:1 | 117.00 | 260 | High | ≤0.08° |
| FF50-XH-7 | 7:1 | 117.00 | 240 | High | ≤0.5° |
| FF50-XH-7A | 7:1 | 117.00 | 240 | High | ≤0.16° |
| FF50-XH-7AR | 7:1 | 117.00 | 240 | High | ≤0.08° |
