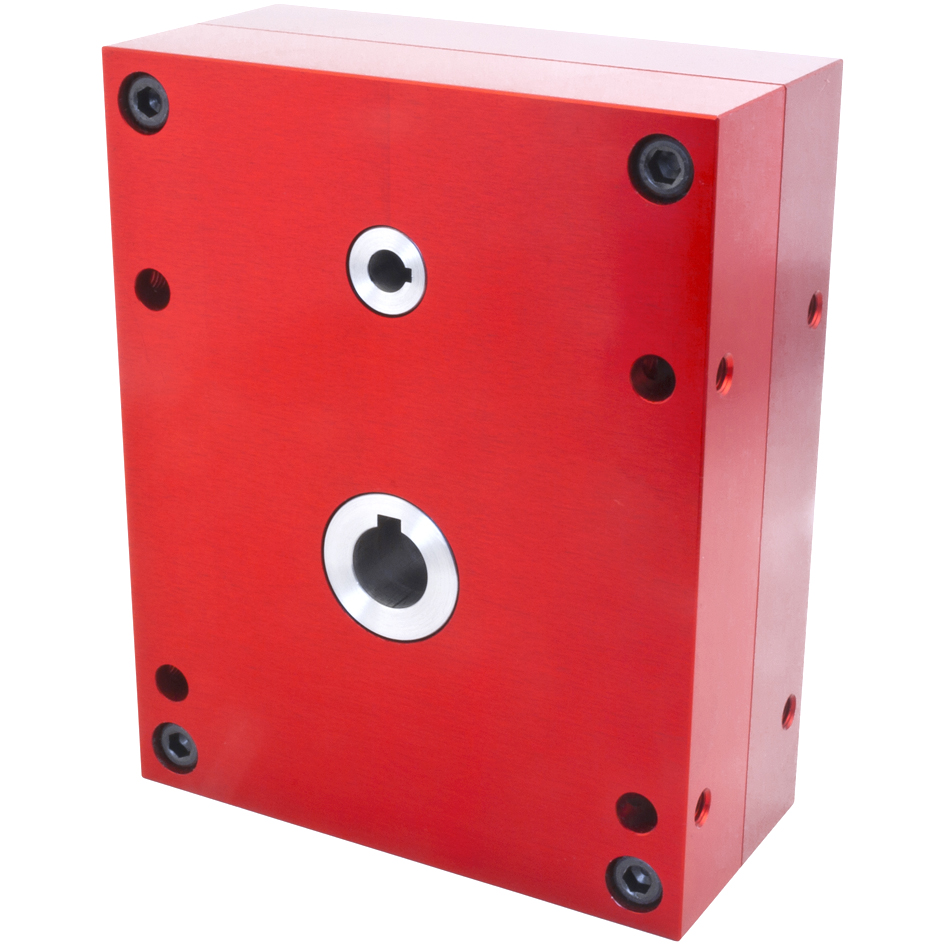

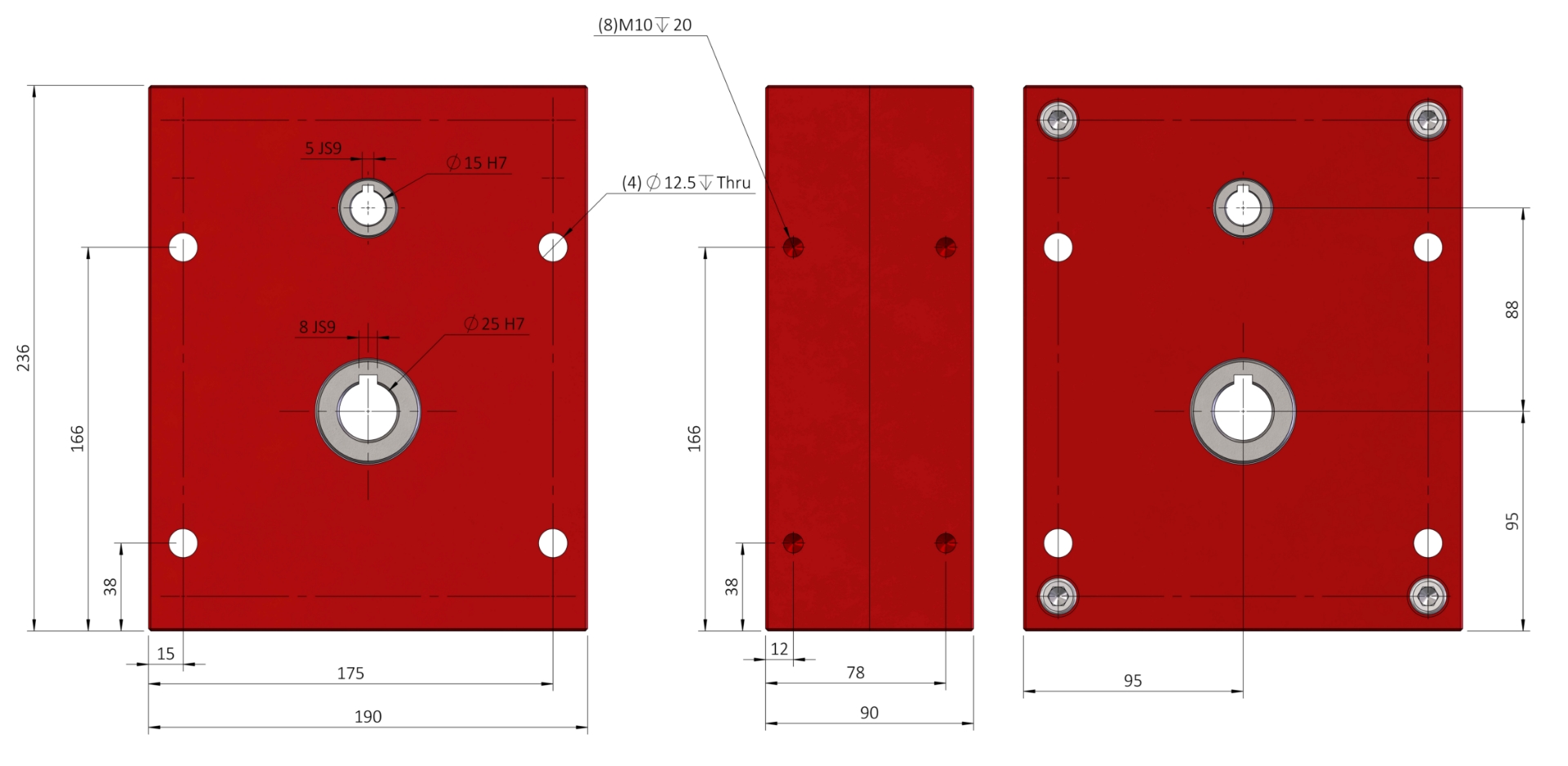

FFS40 210Nm 88mm-Centres Ø12-Ø15-Input-Bores Ø25-Output-Bore
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Nom Output Torque T₂n [Nm] | Torque | Output Backlash j | Input Bore Ø |
|---|---|---|---|---|---|---|
| FFS40-2-12 | 2:1 | 88.00 | 90 | Normal | ≤0.5° | 12 |
| FFS40-3-12 | 3:1 | 88.00 | 90 | Normal | ≤0.5° | 12 |
| FFS40-4-12 | 4:1 | 88.00 | 82 | Normal | ≤0.5° | 12 |
| FFS40-2-14 | 2:1 | 88.00 | 90 | Normal | ≤0.5° | 14 |
| FFS40-3-14 | 3:1 | 88.00 | 90 | Normal | ≤0.5° | 14 |
| FFS40-4-14 | 4:1 | 88.00 | 82 | Normal | ≤0.5° | 14 |
| FFS40-2-15 | 2:1 | 88.00 | 90 | Normal | ≤0.5° | 15 |
| FFS40-3-15 | 3:1 | 88.00 | 90 | Normal | ≤0.5° | 15 |
| FFS40-4-15 | 4:1 | 88.00 | 82 | Normal | ≤0.5° | 15 |
| FFS40-2A-12 | 2:1 | 88.00 | 90 | Normal | ≤0.16° | 12 |
| FFS40-2AR-12 | 2:1 | 88.00 | 90 | Normal | ≤0.08° | 12 |
| FFS40-2A-14 | 2:1 | 88.00 | 90 | Normal | ≤0.16° | 14 |
| FFS40-2AR-14 | 2:1 | 88.00 | 90 | Normal | ≤0.08° | 14 |
| FFS40-2A-15 | 2:1 | 88.00 | 90 | Normal | ≤0.16° | 15 |
| FFS40-2AR-15 | 2:1 | 88.00 | 90 | Normal | ≤0.08° | 15 |
| FFS40-3A-12 | 3:1 | 88.00 | 90 | Normal | ≤0.16° | 12 |
| FFS40-3AR-12 | 3:1 | 88.00 | 90 | Normal | ≤0.08° | 12 |
| FFS40-3A-14 | 3:1 | 88.00 | 90 | Normal | ≤0.16° | 14 |
| FFS40-3AR-14 | 3:1 | 88.00 | 90 | Normal | ≤0.08° | 14 |
| FFS40-3A-15 | 3:1 | 88.00 | 90 | Normal | ≤0.16° | 15 |
| FFS40-3AR-15 | 3:1 | 88.00 | 90 | Normal | ≤0.08° | 15 |
| FFS40-4A-12 | 4:1 | 88.00 | 82 | Normal | ≤0.16° | 12 |
| FFS40-4AR-12 | 4:1 | 88.00 | 82 | Normal | ≤0.08° | 12 |
| FFS40-4A-14 | 4:1 | 88.00 | 82 | Normal | ≤0.16° | 14 |
| FFS40-4AR-14 | 4:1 | 88.00 | 82 | Normal | ≤0.08° | 14 |
| FFS40-4A-15 | 4:1 | 88.00 | 82 | Normal | ≤0.16° | 15 |
| FFS40-4AR-15 | 4:1 | 88.00 | 82 | Normal | ≤0.08° | 15 |
| FFS40-XH-2-12 | 2:1 | 88.00 | 180 | High | ≤0.5° | 12 |
| FFS40-XH-2-14 | 2:1 | 88.00 | 180 | High | ≤0.5° | 14 |
| FFS40-XH-2-15 | 2:1 | 88.00 | 180 | High | ≤0.5° | 15 |
| FFS40-XH-2A-12 | 2:1 | 88.00 | 180 | High | ≤0.16° | 12 |
| FFS40-XH-2A-14 | 2:1 | 88.00 | 180 | High | ≤0.16° | 14 |
| FFS40-XH-2A-15 | 2:1 | 88.00 | 180 | High | ≤0.16° | 15 |
| FFS40-XH-2AR-12 | 2:1 | 88.00 | 180 | High | ≤0.08° | 12 |
| FFS40-XH-2AR-14 | 2:1 | 88.00 | 180 | High | ≤0.08° | 14 |
| FFS40-XH-2AR-15 | 2:1 | 88.00 | 180 | High | ≤0.08° | 15 |
| FFS40-XH-3-12 | 3:1 | 88.00 | 180 | High | ≤0.5° | 12 |
| FFS40-XH-3-14 | 3:1 | 88.00 | 180 | High | ≤0.5° | 14 |
| FFS40-XH-3-15 | 3:1 | 88.00 | 180 | High | ≤0.5° | 15 |
| FFS40-XH-3A-12 | 3:1 | 88.00 | 180 | High | ≤0.16° | 12 |
| FFS40-XH-3A-14 | 3:1 | 88.00 | 180 | High | ≤0.16° | 14 |
| FFS40-XH-3A-15 | 3:1 | 88.00 | 180 | High | ≤0.16° | 15 |
| FFS40-XH-3AR-12 | 3:1 | 88.00 | 180 | High | ≤0.08° | 12 |
| FFS40-XH-3AR-14 | 3:1 | 88.00 | 180 | High | ≤0.08° | 14 |
| FFS40-XH-3AR-15 | 3:1 | 88.00 | 180 | High | ≤0.08° | 15 |
| FFS40-XH-4-12 | 4:1 | 88.00 | 164 | High | ≤0.5° | 12 |
| FFS40-XH-4-14 | 4:1 | 88.00 | 164 | High | ≤0.5° | 14 |
| FFS40-XH-4-15 | 4:1 | 88.00 | 164 | High | ≤0.5° | 15 |
| FFS40-XH-4A-12 | 4:1 | 88.00 | 164 | High | ≤0.16° | 12 |
| FFS40-XH-4A-14 | 4:1 | 88.00 | 164 | High | ≤0.16° | 14 |
| FFS40-XH-4A-15 | 4:1 | 88.00 | 164 | High | ≤0.16° | 15 |
| FFS40-XH-4AR-12 | 4:1 | 88.00 | 164 | High | ≤0.08° | 12 |
| FFS40-XH-4AR-14 | 4:1 | 88.00 | 164 | High | ≤0.08° | 14 |
| FFS40-XH-4AR-15 | 4:1 | 88.00 | 164 | High | ≤0.08° | 15 |
