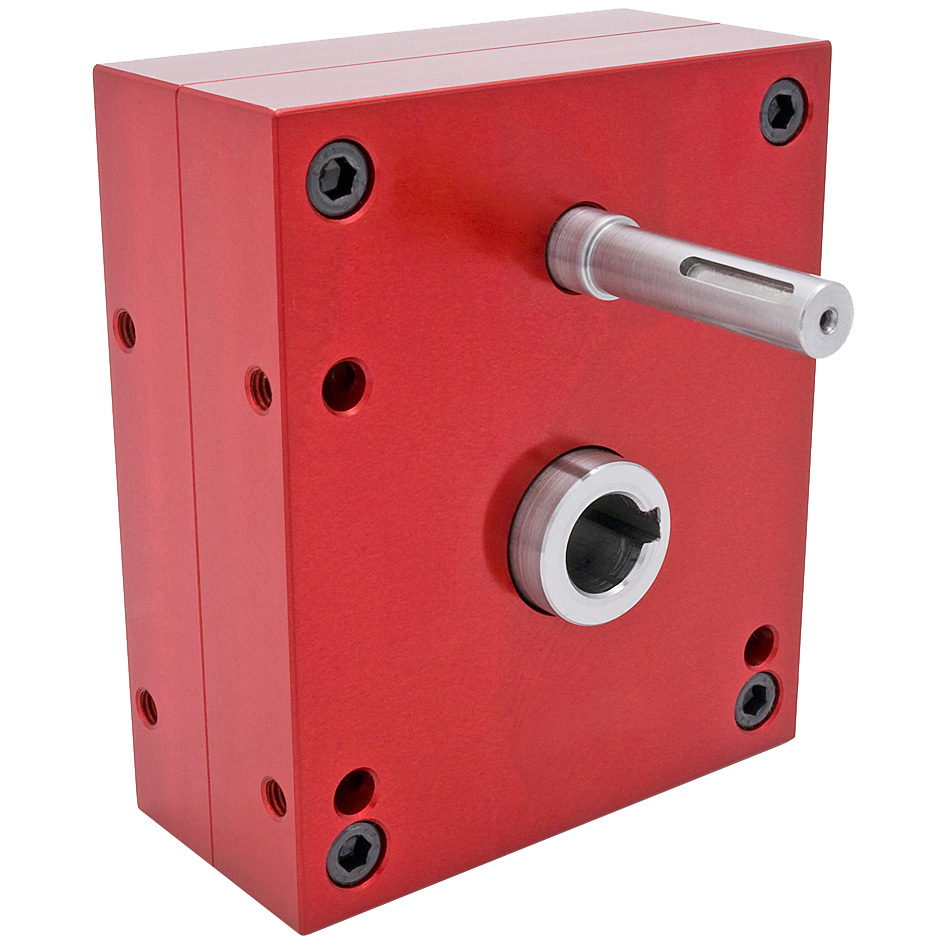

FF20 23.0Nm 42.4mm-Centres Ø10-Input-Shaft Ø15-Output-Bore

Sku (Part No.)	Gear Ratio [i=]	Centre Dist. [a]	Nom Output Torque T₂n [Nm]	Torque	Output Backlash j
FF20-2	2:1	42.40	10.8	Normal	≤0.5°
FF20-3	3:1	42.40	10.2	Normal	≤0.5°
FF20-4	4:1	42.40	9.5	Normal	≤0.5°
FF20-5	5:1	42.40	8.2	Normal	≤0.5°
FF20-6	6:1	42.40	7.8	Normal	≤0.5°
FF20-7	7:1	42.40	6.9	Normal	≤0.5°
FF20-2A	2:1	42.40	10.8	Normal	≤0.16°
FF20-3A	3:1	42.40	10.2	Normal	≤0.16°
FF20-4A	4:1	42.40	9.5	Normal	≤0.16°
FF20-5A	5:1	42.40	8.2	Normal	≤0.16°
FF20-6A	6:1	42.40	7.8	Normal	≤0.16°
FF20-7A	7:1	42.40	6.9	Normal	≤0.16°
FF20-2AR	2:1	42.40	10.8	Normal	≤0.08°
FF20-3AR	3:1	42.40	10.2	Normal	≤0.08°
FF20-4AR	4:1	42.40	9.5	Normal	≤0.08°
FF20-5AR	5:1	42.40	8.2	Normal	≤0.08°
FF20-6AR	6:1	42.40	7.8	Normal	≤0.08°
FF20-7AR	7:1	42.40	6.9	Normal	≤0.08°
FF20-XH-2	2:1	42.40	21.6	High	≤0.5°
FF20-XH-3	3:1	42.40	20.4	High	≤0.5°
FF20-XH-4	4:1	42.40	19	High	≤0.5°
FF20-XH-5	5:1	42.40	16.4	High	≤0.5°
FF20-XH-6	6:1	42.40	15.6	High	≤0.5°
FF20-XH-7	7:1	42.40	13.8	High	≤0.5°
FF20-XH-2A	2:1	42.40	21.6	High	≤0.16°
FF20-XH-3A	3:1	42.40	20.4	High	≤0.16°
FF20-XH-4A	4:1	42.40	19	High	≤0.16°
FF20-XH-5A	5:1	42.40	16.4	High	≤0.16°
FF20-XH-6A	6:1	42.40	15.6	High	≤0.16°
FF20-XH-7A	7:1	42.40	13.8	High	≤0.16°
FF20-XH-2AR	2:1	42.40	21.6	High	≤0.08°
FF20-XH-3AR	3:1	42.40	20.4	High	≤0.08°
FF20-XH-4AR	4:1	42.40	19	High	≤0.08°
FF20-XH-5AR	5:1	42.40	16.4	High	≤0.08°
FF20-XH-6AR	6:1	42.40	15.6	High	≤0.08°
FF20-XH-7AR	7:1	42.40	13.8	High	≤0.08°

;
