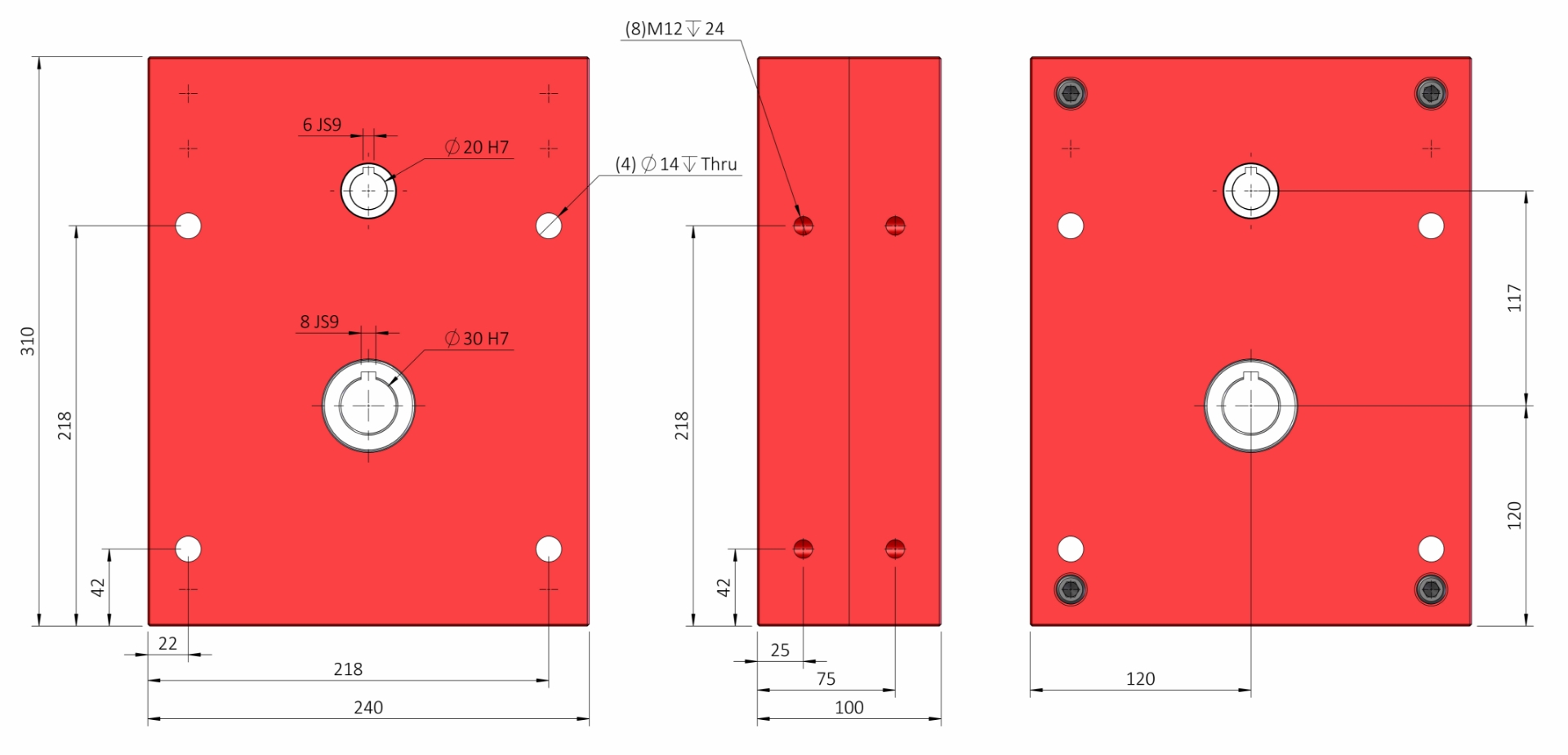

FFS50 425Nm 117mm-Centres Ø16-Ø20-Input-Bores Ø30-Output-Bore
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Nom Output Torque T₂n [Nm] | Torque | Output Backlash j | Input Bore Ø |
|---|---|---|---|---|---|---|
| FFS50-2-16 | 2:1 | 117.00 | 180 | Normal | ≤0.5° | 16 |
| FFS50-3-16 | 3:1 | 117.00 | 168 | Normal | ≤0.5° | 16 |
| FFS50-4-16 | 4:1 | 117.00 | 160 | Normal | ≤0.5° | 16 |
| FFS50-2-19 | 2:1 | 117.00 | 180 | Normal | ≤0.5° | 19 |
| FFS50-3-19 | 3:1 | 117.00 | 168 | Normal | ≤0.5° | 19 |
| FFS50-4-19 | 4:1 | 117.00 | 160 | Normal | ≤0.5° | 19 |
| FFS50-2-20 | 2:1 | 117.00 | 180 | Normal | ≤0.5° | 20 |
| FFS50-3-20 | 3:1 | 117.00 | 168 | Normal | ≤0.5° | 20 |
| FFS50-4-20 | 4:1 | 117.00 | 160 | Normal | ≤0.5° | 20 |
| FFS50-2A-16 | 2:1 | 117.00 | 180 | Normal | ≤0.16° | 16 |
| FFS50-2AR-16 | 2:1 | 117.00 | 180 | Normal | ≤0.08° | 16 |
| FFS50-2A-19 | 2:1 | 117.00 | 180 | Normal | ≤0.16° | 19 |
| FFS50-2AR-19 | 2:1 | 117.00 | 180 | Normal | ≤0.08° | 19 |
| FFS50-2A-20 | 2:1 | 117.00 | 180 | Normal | ≤0.16° | 20 |
| FFS50-2AR-20 | 2:1 | 117.00 | 180 | Normal | ≤0.08° | 20 |
| FFS50-3A-16 | 3:1 | 117.00 | 168 | Normal | ≤0.16° | 16 |
| FFS50-3AR-16 | 3:1 | 117.00 | 168 | Normal | ≤0.08° | 16 |
| FFS50-3A-19 | 3:1 | 117.00 | 168 | Normal | ≤0.16° | 19 |
| FFS50-3AR-19 | 3:1 | 117.00 | 168 | Normal | ≤0.08° | 19 |
| FFS50-3A-20 | 3:1 | 117.00 | 168 | Normal | ≤0.16° | 20 |
| FFS50-3AR-20 | 3:1 | 117.00 | 168 | Normal | ≤0.08° | 20 |
| FFS50-4A-16 | 4:1 | 117.00 | 160 | Normal | ≤0.16° | 16 |
| FFS50-4AR-16 | 4:1 | 117.00 | 160 | Normal | ≤0.08° | 16 |
| FFS50-4A-19 | 4:1 | 117.00 | 160 | Normal | ≤0.16° | 19 |
| FFS50-4AR-19 | 4:1 | 117.00 | 160 | Normal | ≤0.08° | 19 |
| FFS50-4A-20 | 4:1 | 117.00 | 160 | Normal | ≤0.16° | 20 |
| FFS50-4AR-20 | 4:1 | 117.00 | 160 | Normal | ≤0.08° | 20 |
| FFS50-XH-2-16 | 2:1 | 117.00 | 360 | High | ≤0.5° | 16 |
| FFS50-XH-2-19 | 2:1 | 117.00 | 360 | High | ≤0.5° | 19 |
| FFS50-XH-2-20 | 2:1 | 117.00 | 360 | High | ≤0.5° | 20 |
| FFS50-XH-2A-16 | 2:1 | 117.00 | 360 | High | ≤0.16° | 16 |
| FFS50-XH-2A-19 | 2:1 | 117.00 | 360 | High | ≤0.16° | 19 |
| FFS50-XH-2A-20 | 2:1 | 117.00 | 360 | High | ≤0.16° | 20 |
| FFS50-XH-2AR-16 | 2:1 | 117.00 | 360 | High | ≤0.08° | 16 |
| FFS50-XH-2AR-19 | 2:1 | 117.00 | 360 | High | ≤0.08° | 19 |
| FFS50-XH-2AR-20 | 2:1 | 117.00 | 360 | High | ≤0.08° | 20 |
| FFS50-XH-3-16 | 3:1 | 117.00 | 336 | High | ≤0.5° | 16 |
| FFS50-XH-3-19 | 3:1 | 117.00 | 336 | High | ≤0.5° | 19 |
| FFS50-XH-3-20 | 3:1 | 117.00 | 336 | High | ≤0.5° | 20 |
| FFS50-XH-3A-16 | 3:1 | 117.00 | 336 | High | ≤0.16° | 16 |
| FFS50-XH-3A-19 | 3:1 | 117.00 | 336 | High | ≤0.16° | 19 |
| FFS50-XH-3A-20 | 3:1 | 117.00 | 336 | High | ≤0.16° | 20 |
| FFS50-XH-3AR-16 | 3:1 | 117.00 | 336 | High | ≤0.08° | 16 |
| FFS50-XH-3AR-19 | 3:1 | 117.00 | 336 | High | ≤0.08° | 19 |
| FFS50-XH-3AR-20 | 3:1 | 117.00 | 336 | High | ≤0.08° | 20 |
| FFS50-XH-4-16 | 4:1 | 117.00 | 320 | High | ≤0.5° | 16 |
| FFS50-XH-4-19 | 4:1 | 117.00 | 320 | High | ≤0.5° | 19 |
| FFS50-XH-4-20 | 4:1 | 117.00 | 320 | High | ≤0.5° | 20 |
| FFS50-XH-4A-16 | 4:1 | 117.00 | 320 | High | ≤0.16° | 16 |
| FFS50-XH-4A-19 | 4:1 | 117.00 | 320 | High | ≤0.16° | 19 |
| FFS50-XH-4A-20 | 4:1 | 117.00 | 320 | High | ≤0.16° | 20 |
| FFS50-XH-4AR-16 | 4:1 | 117.00 | 320 | High | ≤0.08° | 16 |
| FFS50-XH-4AR-19 | 4:1 | 117.00 | 320 | High | ≤0.08° | 19 |
| FFS50-XH-4AR-20 | 4:1 | 117.00 | 320 | High | ≤0.08° | 20 |
