SF6701ZZ

Ondrives Precision Gears and Gearboxes Part number SF6701ZZ

SF6701ZZ

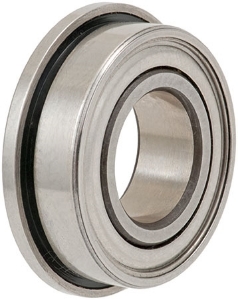

Stainless Steel Flanged Ball Bearing. Metal Shielded Type ZZ. 12mm Bore
Ondrives Precision Gears and Gearboxes Part number SF6701ZZ Ondrives Precision Gears and Gearboxes Part number SF6701ZZ

Product specifications

Bore Diameter [d]12
Diameter [A]18
Dimension [B]4
Diameter [F]19.5
Dimension [FW]0.8
Dimension [r] Min.0.2
Static Load Rating [N]421.69
Dynamic Load Rating [N]745.31
Max. Speed [rpm]13000

Product specifications

Bore Diameter [d]12
Diameter [A]18
Dimension [B]4
Diameter [F]19.5
Dimension [FW]0.8
Dimension [r] Min.0.2
Static Load Rating [N]421.69
Dynamic Load Rating [N]745.31
Max. Speed [rpm]13000
