SF6702ZZ

Ondrives Precision Gears and Gearboxes Part number SF6702ZZ

SF6702ZZ

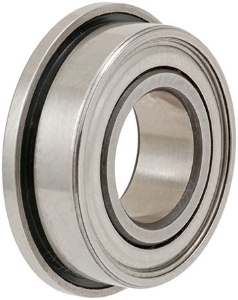

Stainless Steel Flanged Ball Bearing. Metal Shielded Type ZZ. 15mm Bore
Ondrives Precision Gears and Gearboxes Part number SF6702ZZ Ondrives Precision Gears and Gearboxes Part number SF6702ZZ

Product specifications

Bore Diameter [d]15
Diameter [A]21
Dimension [B]4
Diameter [F]22.5
Dimension [FW]0.8
Dimension [r] Min.0.2
Static Load Rating [N]470.72
Dynamic Load Rating [N]774.73
Max. Speed [rpm]13000

Product specifications

Bore Diameter [d]15
Diameter [A]21
Dimension [B]4
Diameter [F]22.5
Dimension [FW]0.8
Dimension [r] Min.0.2
Static Load Rating [N]470.72
Dynamic Load Rating [N]774.73
Max. Speed [rpm]13000
