UPSG1.25-41PH-K

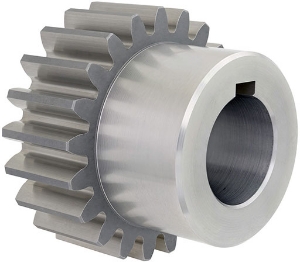

Ondrives Precision Gears and Gearboxes Part number UPSG1.25-41PH-K

UPSG1.25-41PH-K

1.25 Module 17-4PH Stainless Steel (38-40HRC) Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number UPSG1.25-41PH-K Ondrives Precision Gears and Gearboxes Part number UPSG1.25-41PH-K

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeSpur Ground
Normal Module mn1.25
Pressure Angle20°
No. of Teeth [z]41
Torque T₂ [Nm] n1 500 r/min52.96
Ref. Diameter [d]51.25
Tip Diameter [da]53.75
Bore Diameter [di] H610
Keyway [K] DIN 6885-1 Js93 x 3
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.027
Backlash (mm) jt.e (max)0.099
Inertia [I] kgm²8.97 x 10-5
Mass kg0.306

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeSpur Ground
Normal Module mn1.25
Pressure Angle20°
No. of Teeth [z]41
Torque T₂ [Nm] n1 500 r/min52.96
Ref. Diameter [d]51.25
Tip Diameter [da]53.75
Bore Diameter [di] H610
Keyway [K] DIN 6885-1 Js93 x 3
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.027
Backlash (mm) jt.e (max)0.099
Inertia [I] kgm²8.97 x 10-5
Mass kg0.306
