UPSG4.0-62PH-K

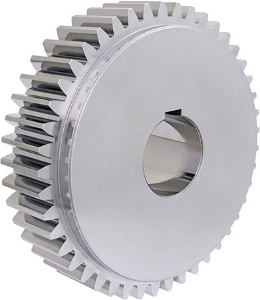

Ondrives Precision Gears and Gearboxes Part number UPSG4.0-62PH-K

UPSG4.0-62PH-K

4.0 Module 17-4PH Stainless Steel (38-40HRC) Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)

Ondrives Precision Gears and Gearboxes Part number UPSG4.0-62PH-K

Ondrives Precision Gears and Gearboxes Part number UPSG4.0-62PH-K

Product specifications

Material	17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN3967	4f24
Gear Tooth Type	Spur Ground
Normal Module mn	4
Pressure Angle	20°
No. of Teeth [z]	62
Torque T₂ [Nm] n1 500 r/min	3063.8
Ref. Diameter [d]	248
Tip Diameter [da]	256
Bore Diameter [di] H6	65
Keyway [K] DIN 6885-1 Js9	20 x 12
Hub Diameter [BD]	218
Backlash (mm) jt.i (min)	0.035
Backlash (mm) jt.e (max)	0.129
Inertia [I] kgm²	1.31 x 10-1
Mass kg	16.544

Product specifications

Material	17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN3967	4f24
Gear Tooth Type	Spur Ground
Normal Module mn	4
Pressure Angle	20°
No. of Teeth [z]	62
Torque T₂ [Nm] n1 500 r/min	3063.8
Ref. Diameter [d]	248
Tip Diameter [da]	256
Bore Diameter [di] H6	65
Keyway [K] DIN 6885-1 Js9	20 x 12
Hub Diameter [BD]	218
Backlash (mm) jt.i (min)	0.035
Backlash (mm) jt.e (max)	0.129
Inertia [I] kgm²	1.31 x 10-1
Mass kg	16.544
