UPSG6.0-25PH-K

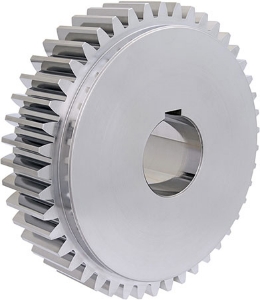

Ondrives Precision Gears and Gearboxes Part number UPSG6.0-25PH-K

UPSG6.0-25PH-K

6.0 Module 17-4PH Stainless Steel (38-40HRC) Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number UPSG6.0-25PH-K Ondrives Precision Gears and Gearboxes Part number UPSG6.0-25PH-K

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeSpur Ground
Normal Module mn6
Pressure Angle20°
No. of Teeth [z]25
Torque T₂ [Nm] n1 500 r/min2375
Ref. Diameter [d]150
Tip Diameter [da]162
Bore Diameter [di] H630
Keyway [K] DIN 6885-1 Js98 x 7
Hub Diameter [BD]105
Backlash (mm) jt.i (min)0.037
Backlash (mm) jt.e (max)0.127
Inertia [I] kgm²2.43 x 10-2
Mass kg8.44

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeSpur Ground
Normal Module mn6
Pressure Angle20°
No. of Teeth [z]25
Torque T₂ [Nm] n1 500 r/min2375
Ref. Diameter [d]150
Tip Diameter [da]162
Bore Diameter [di] H630
Keyway [K] DIN 6885-1 Js98 x 7
Hub Diameter [BD]105
Backlash (mm) jt.i (min)0.037
Backlash (mm) jt.e (max)0.127
Inertia [I] kgm²2.43 x 10-2
Mass kg8.44
