UPSG8.0-44PH-K

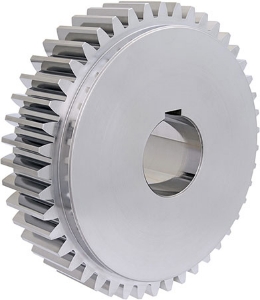

Ondrives Precision Gears and Gearboxes Part number UPSG8.0-44PH-K

UPSG8.0-44PH-K

8.0 Module 17-4PH Stainless Steel (38-40HRC) Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number UPSG8.0-44PH-K Ondrives Precision Gears and Gearboxes Part number UPSG8.0-44PH-K

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeSpur Ground
Normal Module mn8
Pressure Angle20°
No. of Teeth [z]44
Torque T₂ [Nm] n1 500 r/min16522
Ref. Diameter [d]352
Tip Diameter [da]368
Bore Diameter [di] H690
Keyway [K] DIN 6885-1 Js925 x 14
Hub Diameter [BD]295
Backlash (mm) jt.i (min)0.049
Backlash (mm) jt.e (max)0.171
Inertia [I] kgm²9.85 x 10-1
Mass kg60.903

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeSpur Ground
Normal Module mn8
Pressure Angle20°
No. of Teeth [z]44
Torque T₂ [Nm] n1 500 r/min16522
Ref. Diameter [d]352
Tip Diameter [da]368
Bore Diameter [di] H690
Keyway [K] DIN 6885-1 Js925 x 14
Hub Diameter [BD]295
Backlash (mm) jt.i (min)0.049
Backlash (mm) jt.e (max)0.171
Inertia [I] kgm²9.85 x 10-1
Mass kg60.903
