UPW0.5-1PH

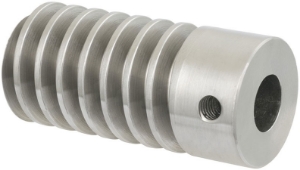

Ondrives Precision Gears and Gearboxes Part number UPW0.5-1PH

UPW0.5-1PH

0.5 Module 17-4PH Stainless Steel (38-40HRC) 1 Start Ground Bore Worm 20° PA Quality Grade 6e DIN 3974/58405
Ondrives Precision Gears and Gearboxes Part number UPW0.5-1PH Ondrives Precision Gears and Gearboxes Part number UPW0.5-1PH

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3974 DIN 584056e
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx0.5
Pressure Angle20°
Gear Tooth TypeWorm Ground

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3974 DIN 584056e
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx0.5
Pressure Angle20°
Gear Tooth TypeWorm Ground
