UPW1.0-3PH

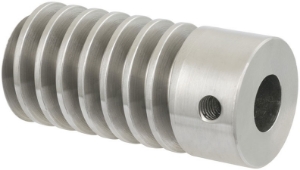

Ondrives Precision Gears and Gearboxes Part number UPW1.0-3PH

UPW1.0-3PH

1.0 Module 17-4PH Stainless Steel (38-40HRC) 3 Start Ground Bore Worm 20° PA Quality Grade 6e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number UPW1.0-3PH Ondrives Precision Gears and Gearboxes Part number UPW1.0-3PH

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3974 DIN39676e25
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.0
Pressure Angle20°
Gear Tooth TypeWorm Ground

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3974 DIN39676e25
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.0
Pressure Angle20°
Gear Tooth TypeWorm Ground
