    Hypoid Gearboxes

    Hypoid spiral bevel gearboxes right angle and offset. A hypoid pinion is offset from the gear centre which gives this a stronger pinion than a comparable spiral bevel design.
    Hypoid gearboxes from Ondrives are finish hardened and ground to give excellent characteristics in smooth quiet motion.

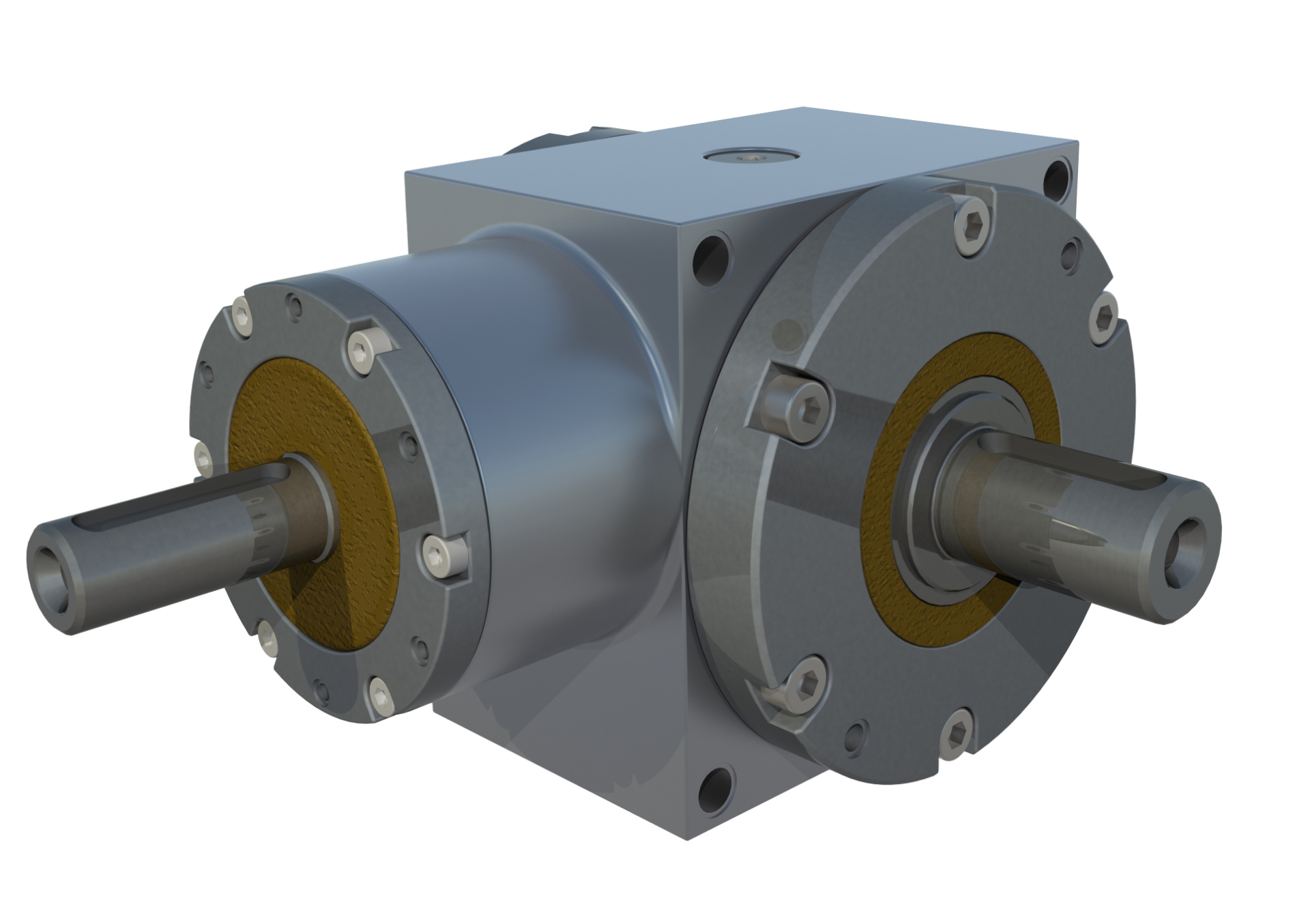

    The HYSB (Small Offset Medium Ratios) Hypoid bevel gear versions have small offsets and ratios 3:1 to 15:1.

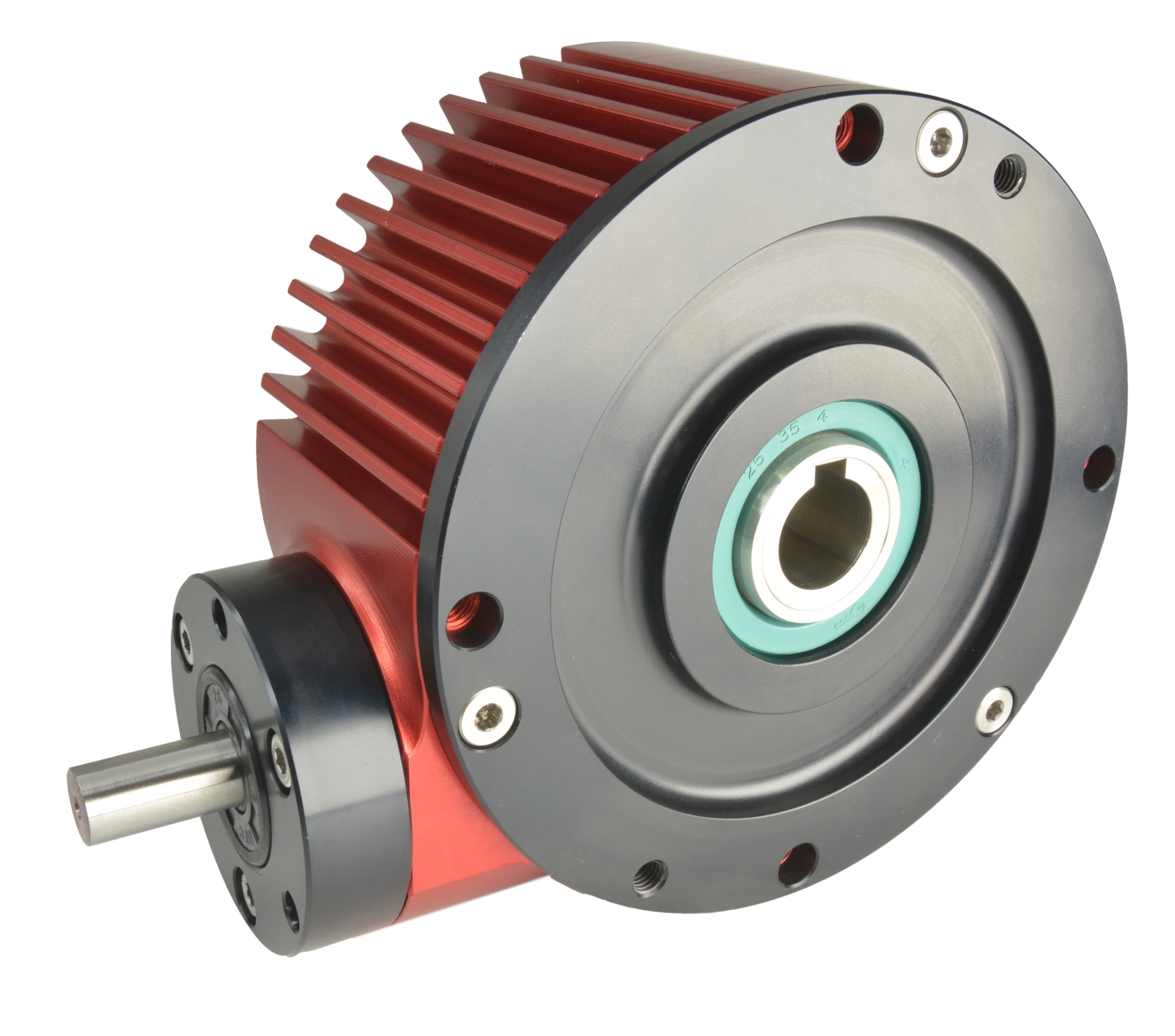

    The HRHC (High Ratio High Offset) SRH HRH Hypoid gears have large offsets and high ratios 10:1 to 60:1.
    The SBC (Right Angle Inline Low Ratios) Spiral Bevels right angle inline ratios 1:1 to 5:1.

    See more on our gear reducers and gearboxes at:

    Ondrives Gearboxes Gear Reducer Info Page

    View as Grid List
    Sort by
    Display per page

    HRHC28-10

    HRHC28-10
    £598.00
    Precision high ratio hypoid gearbox, <15' backlash, shaft input, 12mm output bore & 10mm input shaft, 20Nm output torque, 28mm offset centres, ratio 10:1

    HRHC28-10A

    HRHC28-10A
    £687.00
    Precision high ratio hypoid gearbox, <8' backlash, shaft input, 12mm output bore & 10mm input shaft, 20Nm output torque, 28mm offset centres, ratio 10:1

    HRHC28-10AR

    HRHC28-10AR
    £798.00
    Precision high ratio hypoid gearbox, <4' backlash, shaft input, 12mm output bore & 10mm input shaft, 20Nm output torque, 28mm offset centres, ratio 10:1

    HRHC28-15

    HRHC28-15
    £598.00
    Precision high ratio hypoid gearbox, <15' backlash, shaft input, 12mm output bore & 10mm input shaft, 20Nm output torque, 28mm offset centres, ratio 15:1

    HRHC28-15A

    HRHC28-15A
    £687.00
    Precision high ratio hypoid gearbox, <8' backlash, shaft input, 12mm output bore & 10mm input shaft, 20Nm output torque, 28mm offset centres, ratio 15:1

    HRHC28-15AR

    HRHC28-15AR
    £798.00
    Precision high ratio hypoid gearbox, <4' backlash, shaft input, 12mm output bore & 10mm input shaft, 20Nm output torque, 28mm offset centres, ratio 15:1
