HYSB Hypoid High torque Low Offset Gearboxes
Hypoid Gear Rotation Direction.
LH-Left Hand Pinion Lead - When input rotation is clockwise , output is pushed away from input.
When input is counter-clockwise , output is pulled to input.
Output Hypoid Gear is a right hand lead direction.

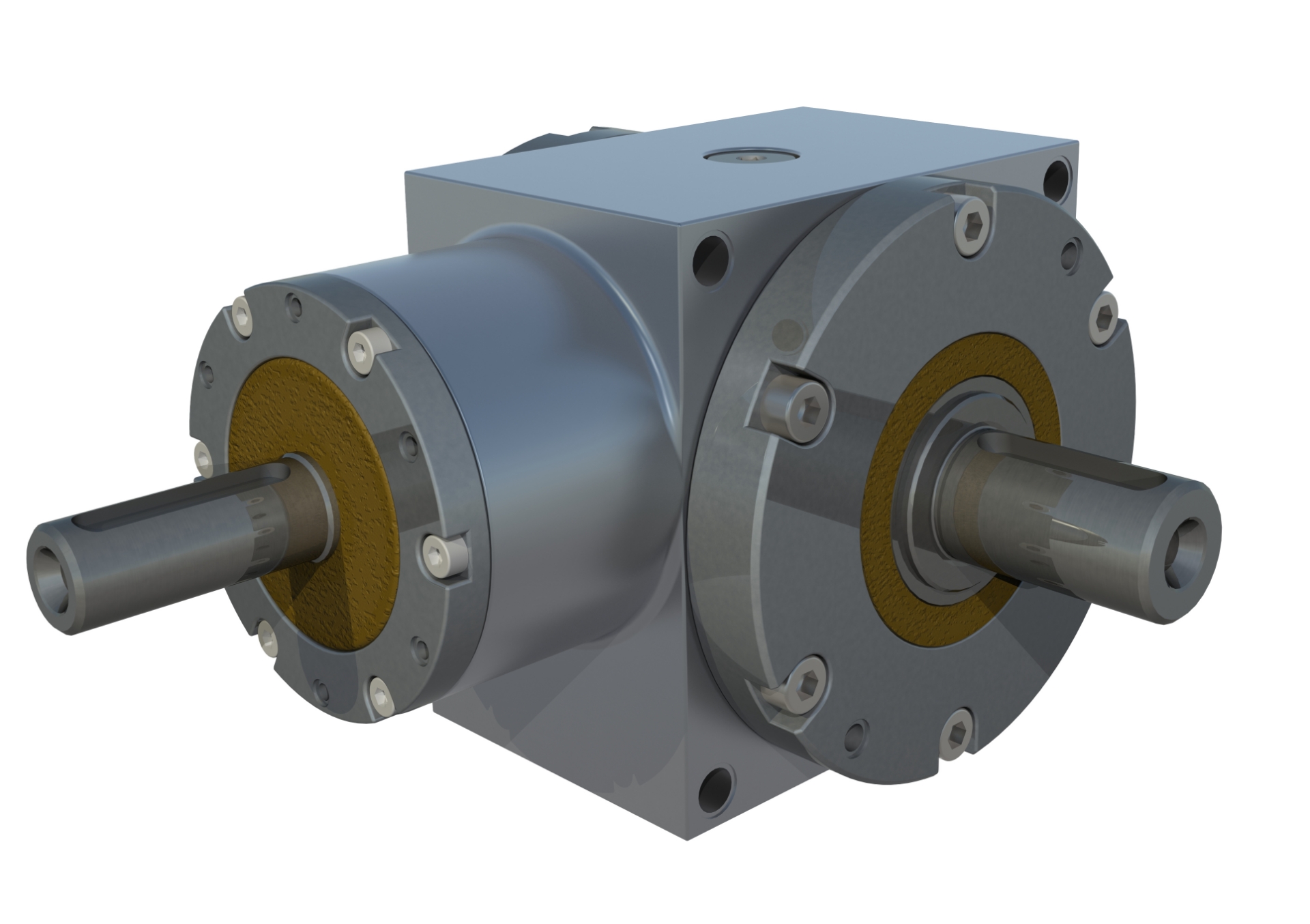

HYSB-9-10
HYSB-9-10
Precision hypoid gearbox, <6' backlash, shaft input, 20mm output shaft & 14mm input shaft, 30Nm output torque, 9mm offset centres, ratio 10:1
HYSB-9-12
HYSB-9-12
Precision hypoid gearbox, <6' backlash, shaft input, 20mm output shaft & 14mm input shaft, 25Nm output torque, 9mm offset centres, ratio 12:1
HYSB-9-15
HYSB-9-15
Precision hypoid gearbox, <6' backlash, shaft input, 20mm output shaft & 14mm input shaft, 20Nm output torque, 9mm offset centres, ratio 15:1
HYSB-9-3
HYSB-9-3
Precision hypoid gearbox, <6' backlash, shaft input, 20mm output shaft & 14mm input shaft, 40Nm output torque, 9mm offset centres, ratio 3:1
HYSB-9-5
HYSB-9-5
Precision hypoid gearbox, <6' backlash, shaft input, 20mm output shaft & 14mm input shaft, 40Nm output torque, 9mm offset centres, ratio 5:1
HYSB-9-6
HYSB-9-6
Precision hypoid gearbox, <6' backlash, shaft input, 20mm output shaft & 14mm input shaft, 35Nm output torque, 9mm offset centres, ratio 6:1
