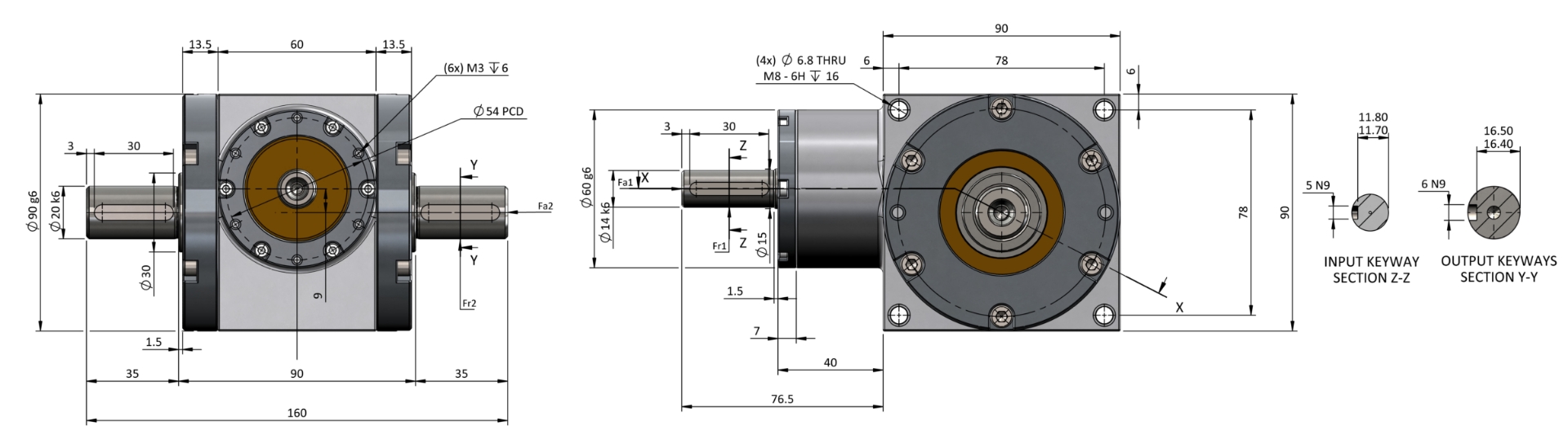

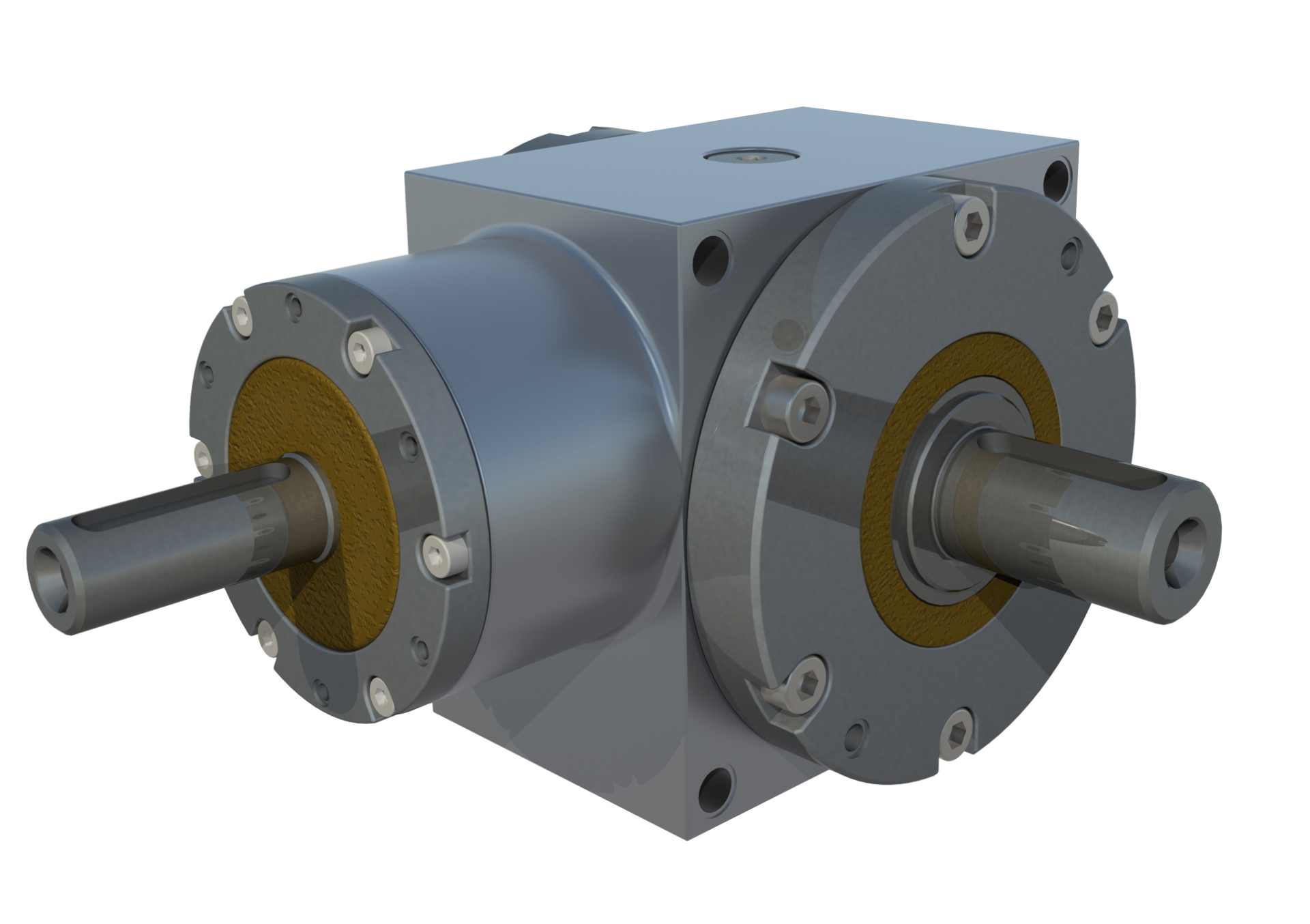

HYSB-9 40Nm 9mm-Offset 3:1-15:1-Ratios
High Ratio Hypoid Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Shaft dia. mm Ø k6 | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|---|
| HYSB-9-10 | 20 | 10:1 | 9.00 | 60 | 30.00 | ≤0.1° |
| HYSB-9-12 | 20 | 12:1 | 9.00 | 50 | 25.00 | ≤0.1° |
| HYSB-9-15 | 20 | 15:1 | 9.00 | 40 | 20.00 | ≤0.1° |
| HYSB-9-3 | 20 | 3:1 | 9.00 | 80 | 40.00 | ≤0.1° |
| HYSB-9-5 | 20 | 5:1 | 9.00 | 80 | 40.00 | ≤0.1° |
| HYSB-9-6 | 20 | 6:1 | 9.00 | 70 | 35.00 | ≤0.1° |
| HYSB-9-8 | 20 | 8:1 | 9.00 | 70 | 35.00 | ≤0.1° |
