HYSB-9-3

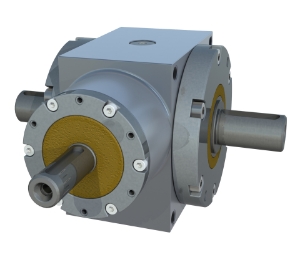

Precision hypoid gearbox, <6' backlash, shaft input, 20mm output shaft & 14mm input shaft, 40Nm output torque, 9mm offset centres, ratio 3:1

Product specifications

Centre Dist. [a]	9.00
Gear Ratio [i=]	3:1
Output Torque T₂max [Nm]	80
Output Torque T₂n [Nm]	40.00
Nom. Input Speed S5 T₂n [n1nom]	1500 min-1 (r/min)
Max. Input Speed [n1max]	5500 min-1 (r/min)
Output Backlash j	≤0.1°
Efficiency n1nom [ηz]	≈96%
Mass [kg]	3.5
Max. Input Radial Load Fr1 N	500
Max. Input Axial Load Fa1 N	200
Max. Output Radial Load Fr2 N	2500
Max. Output Axial Load Fa2 N	1000
Lubrication Oil	Klubersynth GH 6-220
Max. Operating Temp of Lub	≈95°C
Seals	Fluoro-Elastomer FPM ISO 1629 /FKM ASTM D141 H
Ingress Protection	IP64
Noise Level Low Load	≈68dB(A)

Centre Dist. [a]	9.00
Gear Ratio [i=]	3:1
Output Torque T₂max [Nm]	80
Output Torque T₂n [Nm]	40.00
Nom. Input Speed S5 T₂n [n1nom]	1500 min-1 (r/min)
Max. Input Speed [n1max]	5500 min-1 (r/min)
Output Backlash j	≤0.1°
Efficiency n1nom [ηz]	≈96%
Mass [kg]	3.5
Max. Input Radial Load Fr1 N	500
Max. Input Axial Load Fa1 N	200
Max. Output Radial Load Fr2 N	2500
Max. Output Axial Load Fa2 N	1000
Lubrication Oil	Klubersynth GH 6-220
Max. Operating Temp of Lub	≈95°C
Seals	Fluoro-Elastomer FPM ISO 1629 /FKM ASTM D141 H
Ingress Protection	IP64
Noise Level Low Load	≈68dB(A)
