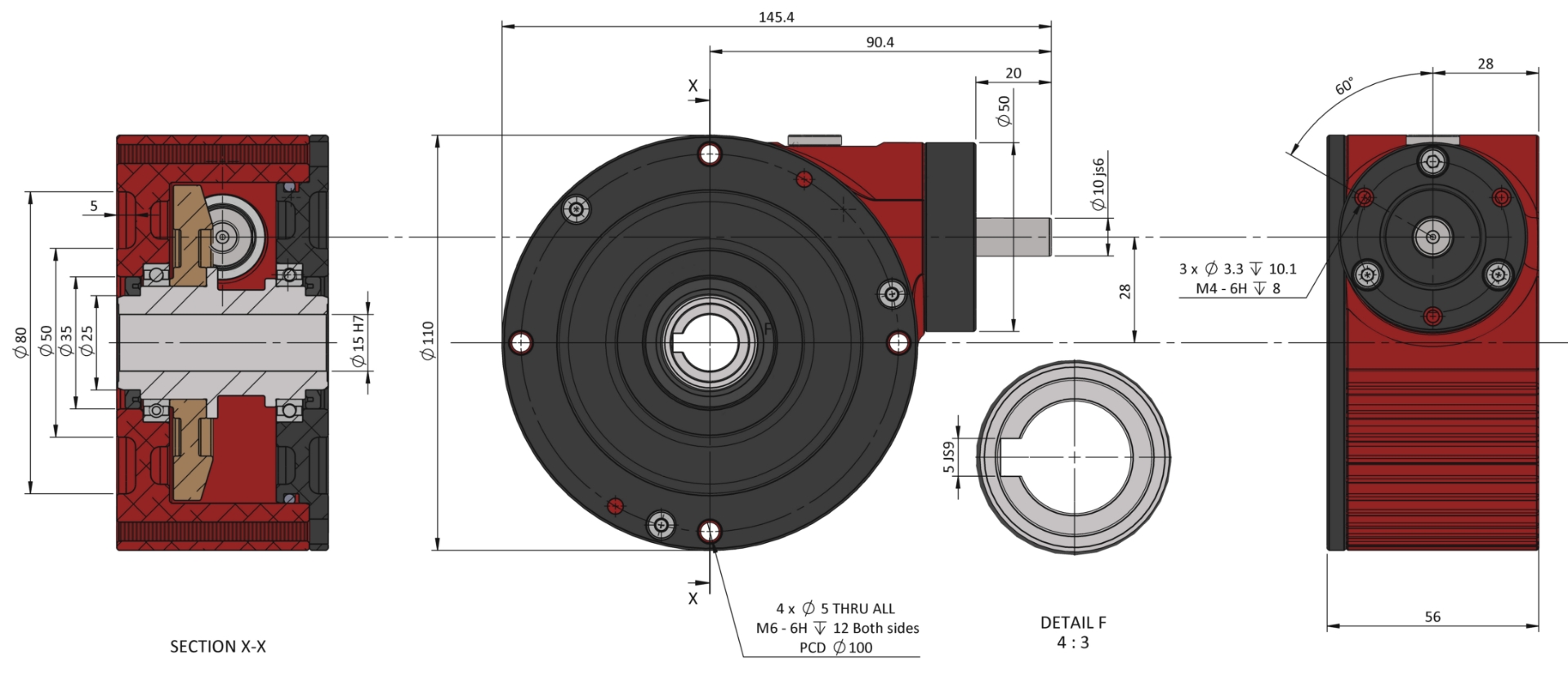

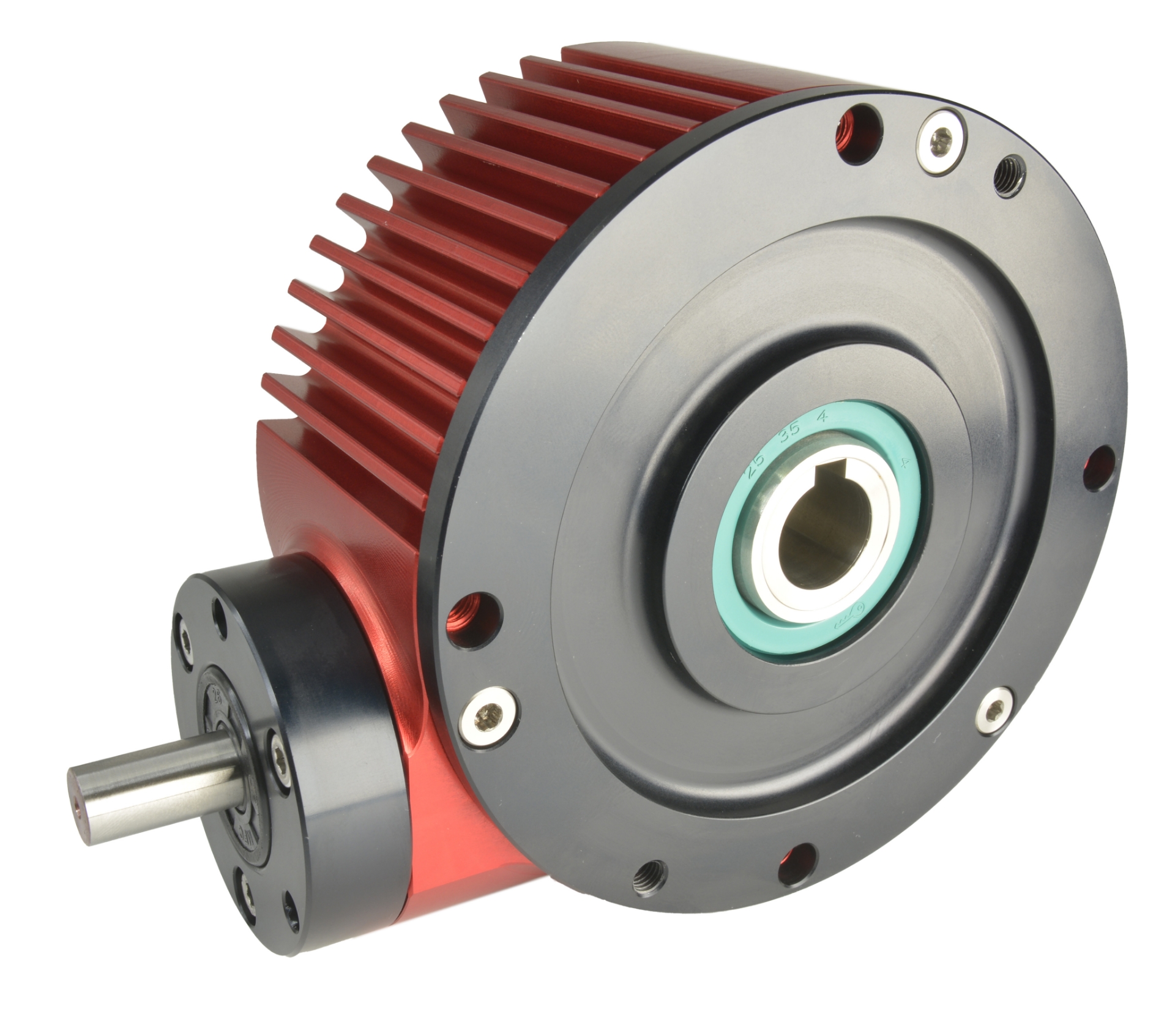

HRHC28 20Nm 28mm-Offset 15:1-60:1-Ratios
High Ratio Hypoid Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| HRHC28-60 | 60:1 | 28.00 | 40 | 20.00 | ≤0.25° |
| HRHC28-10 | 10:1 | 28.00 | 40 | 20.00 | ≤0.25° |
| HRHC28-15 | 15:1 | 28.00 | 40 | 20.00 | ≤0.25° |
| HRHC28-20 | 20:1 | 28.00 | 40 | 20.00 | ≤0.25° |
| HRHC28-30 | 30:1 | 28.00 | 40 | 20.00 | ≤0.25° |
| HRHC28-60A | 60:1 | 28.00 | 40 | 20.00 | ≤0.13° |
| HRHC28-30A | 30:1 | 28.00 | 40 | 20.00 | ≤0.13° |
| HRHC28-20A | 20:1 | 28.00 | 40 | 20.00 | ≤0.13° |
| HRHC28-15A | 15:1 | 28.00 | 40 | 20.00 | ≤0.13° |
| HRHC28-10A | 10:1 | 28.00 | 40 | 20.00 | ≤0.13° |
| HRHC28-60AR | 60:1 | 28.00 | 40 | 20.00 | ≤0.06° |
| HRHC28-30AR | 30:1 | 28.00 | 40 | 20.00 | ≤0.06° |
| HRHC28-20AR | 20:1 | 28.00 | 40 | 20.00 | ≤0.06° |
| HRHC28-15AR | 15:1 | 28.00 | 40 | 20.00 | ≤0.06° |
| HRHC28-10AR | 10:1 | 28.00 | 40 | 20.00 | ≤0.06° |
