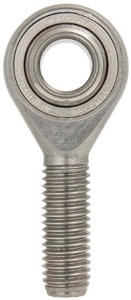

Standard Duty Male Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 22mm Bore.

Product specifications

Diameter [d] H722
Dimension [B]28 +0/-0.05
Dimension [C]20 ±0.02
Dimension [dk]38.1
Diameter [d1]25.84
Dimension [d2]50
Thread [d3]M22 x 1.5
Dimension [h]84
Dimension [L1]51 ±0.05
Dimension [b]109
Max. Tilt Angle15°
Static Load Rating [N]18900
Mass (g)420
