SME25.45

SME25.45

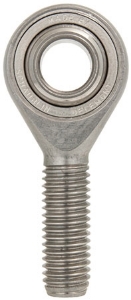

Standard Duty Male Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 25mm Bore.

Product specifications

Diameter [d] H725
Dimension [B]31 +0/-0.05
Dimension [C]22 ±0.02
Dimension [dk]42.85
Diameter [d1]29.6
Dimension [d2]56
Thread [d3]M24 x 2
Dimension [h]94
Dimension [L1]57 ±0.05
Dimension [b]122
Max. Tilt Angle15°
Static Load Rating [N]23100
Mass (g)580
