SME6.45

SME6.45

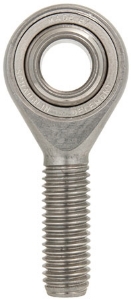

Standard Duty Male Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 6mm Bore.

Product specifications

Diameter [d] H76
Dimension [B]9 +0/-0.05
Dimension [C]6.75 ±0.02
Dimension [dk]12.7
Diameter [d1]8.96
Dimension [d2]18
Thread [d3]M6 x 1
Dimension [h]36
Dimension [L1]22 ±0.05
Dimension [b]45
Max. Tilt Angle13°
Static Load Rating [N]2100
Mass (g)18
