P15-80AR

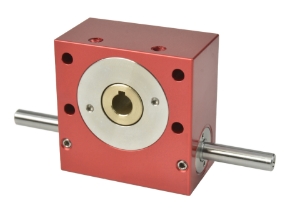

Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

P15-80AR

Precision worm gear reducer, <4' backlash, shaft input, 6mm output bore & 5mm input shaft, 0.94Nm-2.04Nm output torque, 15mm centres, ratio 80:1
Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Product specifications

Centre Dist. [a] 15.00
Gear Ratio [i=] 80:1
Output Torque T₂max [Nm] 2
Output Torque T₂n [Nm] 1.28
Output Backlash j ≤0.06°
Reflected Inertia at Input (kg•m²) 1.60 x 10-7
Efficiency n1 1000 r/min [ηz] 32%
Mass [kg] 0.15
Max. Input Radial Load Fr1 N 10
Max. Output Radial Load Fr2 N 80
Max. Output Axial Load Fa2 N 30
Lubrication Grease Shell Gadus S5 V42P 2.5

Product specifications

Centre Dist. [a] 15.00
Gear Ratio [i=] 80:1
Output Torque T₂max [Nm] 2
Output Torque T₂n [Nm] 1.28
Output Backlash j ≤0.06°
Reflected Inertia at Input (kg•m²) 1.60 x 10-7
Efficiency n1 1000 r/min [ηz] 32%
Mass [kg] 0.15
Max. Input Radial Load Fr1 N 10
Max. Output Radial Load Fr2 N 80
Max. Output Axial Load Fa2 N 30
Lubrication Grease Shell Gadus S5 V42P 2.5
