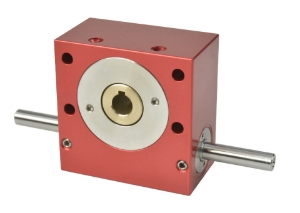

P15-8AR

Precision worm gear reducer, <4' backlash, shaft input, 6mm output bore & 5mm input shaft, 1.13Nm-3.60Nm output torque, 15mm centres, ratio 8:1

Product specifications

Centre Dist. [a]	15.00
Gear Ratio [i=]	8:1
Output Torque T₂max [Nm]	3.5
Output Torque T₂n [Nm]	1.73
Output Backlash j	≤0.06°
Reflected Inertia at Input (kg•m²)	1.73 x 10-7
Efficiency n1 1000 r/min [ηz]	85%
Mass [kg]	0.15
Max. Input Radial Load Fr1 N	10
Max. Output Radial Load Fr2 N	80
Max. Output Axial Load Fa2 N	30
Lubrication Grease	Shell Gadus S5 V42P 2.5
