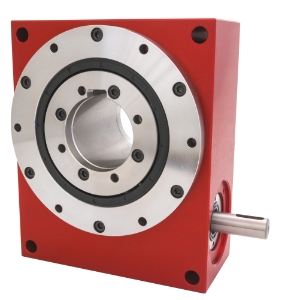

P80-10A

IP65 Precision Wormwheel Reducer with High Capacity Taper Roller Bearings. <6' low backlash, ratio 10:1

Product specifications

Centre Dist. [a]	65.50
Gear Ratio [i=]	10:1
Output Torque T₂max [Nm]	120
Output Torque T₂n [Nm]	56.10
Output Backlash j	≤0.1°
Efficiency	77%
Reflected Inertia at Input (kg•m²)	5.86 x 10-5
Mass [kg]	8.86
Max. Input Radial Load Fr1 N	250
Max. Output Radial Load Fr2 N	2000
Max. Output Axial Load Fa2 N	5000
Lubrication Grease	Shell Gadus S5 V42P 2.5
