PF20DU-120

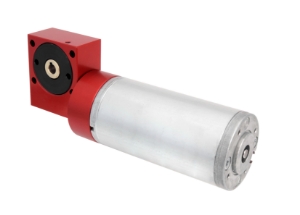

Ondrives Precision Gears and Gearboxes Part number PF20DU-120

PF20DU-120

PF20 precision worm gear reducer fitted with 24v DC motor, ≤30' backlash, 1.25Nm, ratio 120:1
Ondrives Precision Gears and Gearboxes Part number PF20DU-120 Ondrives Precision Gears and Gearboxes Part number PF20DU-120

Product specifications

Centre Dist. [a]20.00
Gear Ratio [i=]120:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input1.25
Efficiency n1 1000 r/min [ηz]32%
Nominal Output Rpm13.0
Rpm at 12V DC1550
DC MotorDUN42x40-24
Mass [kg]0.49
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1

Product specifications

Centre Dist. [a]20.00
Gear Ratio [i=]120:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input1.25
Efficiency n1 1000 r/min [ηz]32%
Nominal Output Rpm13.0
Rpm at 12V DC1550
DC MotorDUN42x40-24
Mass [kg]0.49
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1
