    Wormwheel Gearboxes Flange Input

    Right angle worm gearboxes and reducers. Ondrives designed and manufactured in the UK.
    Ondrives wormwheel gearboxes are also availble as modified versions or complete new designs made to customers specifications.
    Worm wheels also known as worm gears are able to offer a high range of ratios in one pair with high torque capacity, using a steel worm onto a bronze wheel. Ratios as little as 5:1 upto 120:1.
    These reducers are used in a wide varaity of industries where space saving is needed with our slim fit designs as well special designs for those applications where needed.
    Types of industries - aerospace, robotics, semiconductor, medical,  OEM's (Original Equipment Manufacturers).

    See more on our gear reducers and gearboxes at:

    Ondrives Gearboxes Gear Reducer Info Page

    View as Grid List
    Sort by
    Display per page

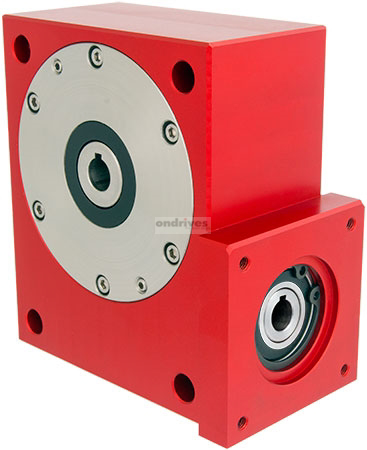

    Ondrives Precision Gears and Gearboxes Part number  PFN40-10

    PFN40-10

    PFN40-10
    IP66 Precision worm gear reducer, 1 piece casing flange, ≤10' backlash, 10mm output bore & 8mm input bore, 5.00Nm-17.60Nm output torque, 37.5mm centres, ratio 10:1
    Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes

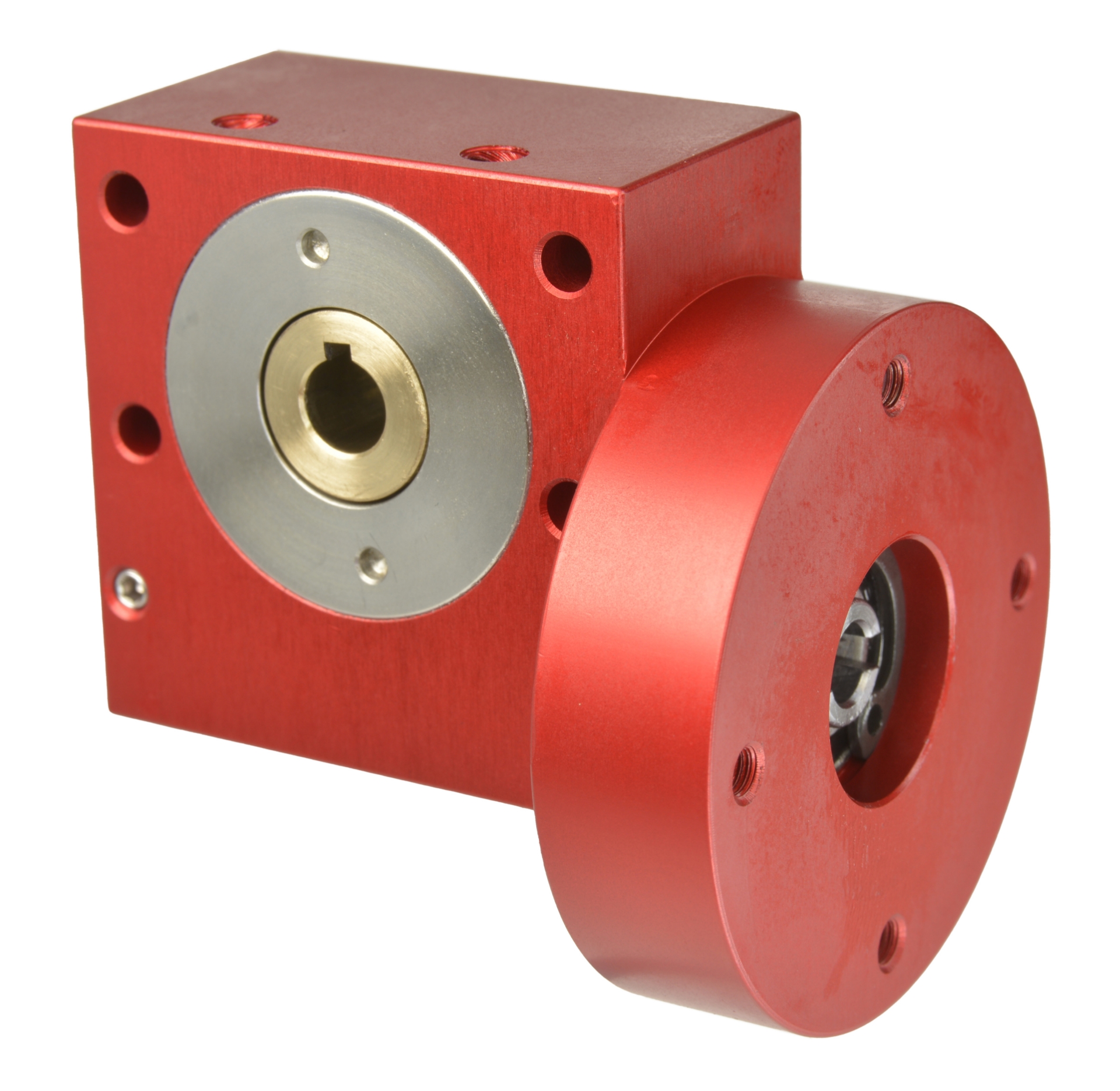

    PF15-10

    PF15-10
    Precision worm gear reducer, ≤30' backlash, flanged input, 6mm output bore & 5mm Input bore, 1.20Nm-3.68Nm output torque, 15mm centres, ratio 10:1
    Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes

    PF15-10A

    PF15-10A
    Precision worm gear reducer, ≤8' backlash, flanged input, 6mm output bore & 5mm Input bore, 1.20Nm-3.68Nm output torque, 15mm centres, ratio 10:1
    Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes

    PF15-13

    PF15-13
    Precision worm gear reducer, ≤30' backlash, flanged input, 6mm output bore & 5mm Input bore, 1.28Nm-3.68Nm output torque, 15mm centres, ratio 13.33:1
    Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes

    PF15-13A

    PF15-13A
    Precision worm gear reducer, ≤8' backlash, flanged input, 6mm output bore & 5mm Input bore, 1.28Nm-3.68Nm output torque, 15mm centres, ratio 13.33:1
    Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes

    PF15-13AR

    PF15-13AR
    Precision worm gear reducer, ≤4' backlash, flanged input, 6mm output bore & 5mm Input bore, 1.28Nm-3.68Nm output torque, 15mm centres, ratio 13.33:1
